Kayak — User Manual 333
E-MEM Menus
E-MEM Timeline Mode Menus
As the former KayakDD Menu had only a Define Memo menu until now,
the Timeline menu is completely new. It supports both Default Mode and
“classic” DD Mode. The Timeline menu consists of three submenus, labeled
Show Text, Show Timeline and Save / Recall .

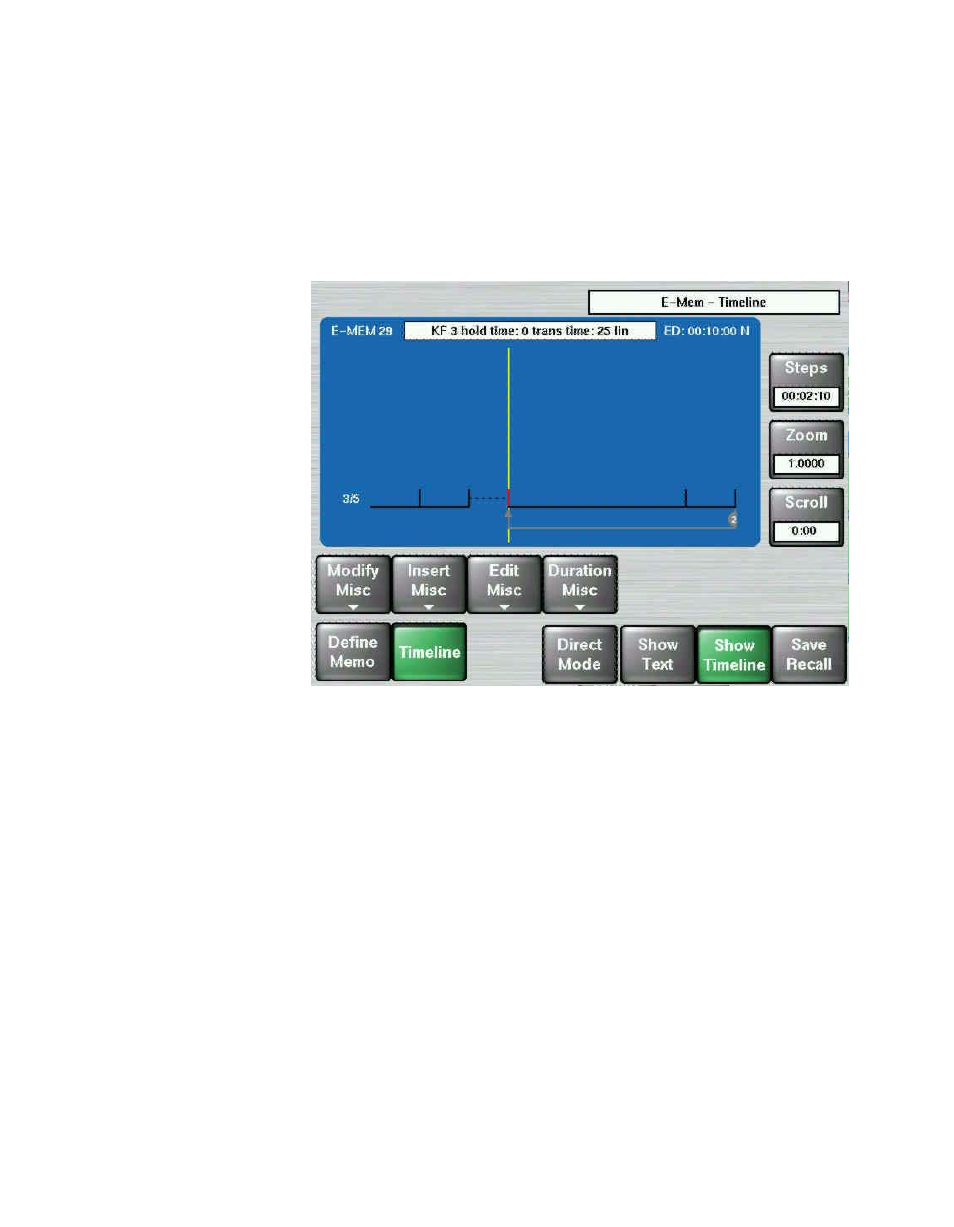

Figure 252. E-MEM – Timeline
The Show Text and Show Timeline menus are similar to the Timeline Edit menu
of the Sidepanel, but they are always accessible, not only in edit mode. Show
Text displays a textual representation of the current timeline, while Show
Timeline is a graphical representation. Otherwise, both menus are identical.
They offer several controls to view and edit the timeline.
Graphical Timeline Representation
In the Show Timeline submenu, the current timeline is visualized as a graph
over time. Keyframes are drawn as vertical bars, followed by a horizontal
line representing their duration. If a keyframe has a hold time, it is drawn
as two vertical bars connected by a dotted line, visualizing start and end of
the hold time.
Triggers are drawn as red triangles facing up, while waits are down-facing
triangles. If multiple waits and/or triggers exist at the same timecode, they
are arranged on top of each other. Up to seven waits/triggers can be dis-
played at one location; if there are more, an eighth triangle with an ellipsis
(“…”) is added on top to represent the waits/triggers that did not fit onto
