Kayak — User Manual 243
RGB Input Correction Menus
Color Off
Switched the color on/off completely separate for each bus.
RGB Input Correction Menus
RGB Input Color Correction is a software enabled feature that converts the
video signal on a particular video bus from color difference format to RGB
(red, green, blue) color component format, applies separate offset, gain,
and gamma to each RGB component, then converts from RGB back to color
difference (Y, Cb, Cr) format. The color correction is applied on an input by
input basis. The parameters are applied on the basis of a source and bus
intersection and stored as part of source memory. A different input on the
same bus or a same input on a different bus, may have different color cor-
rection.
The Color Corrector menu is used to adjust RGB color on a selected bus and
input.
Corrected inputs and parameter will be displayed in a yellow style.

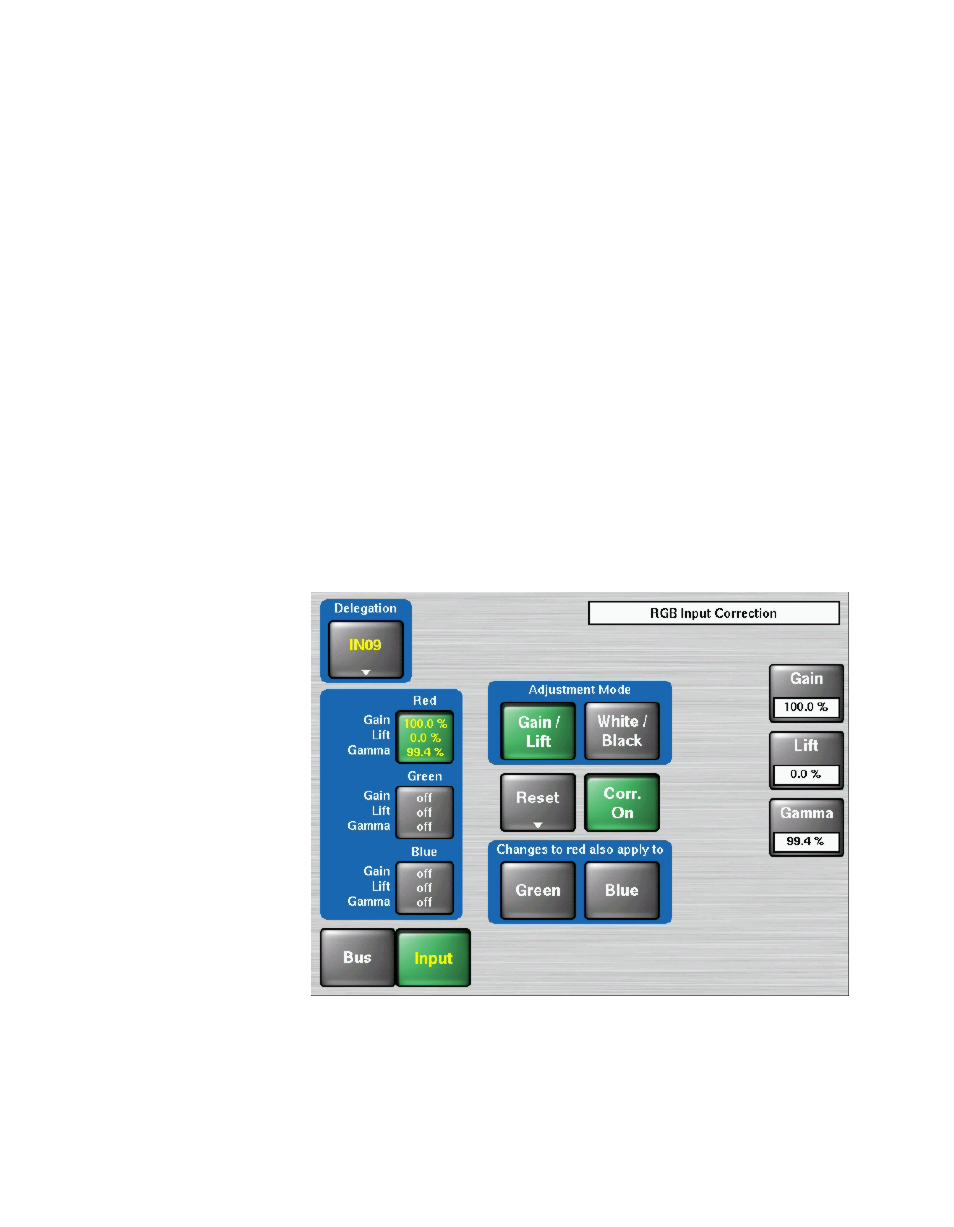

Figure 165. RGB Input Correction Menu
