512 Kayak — User Manual
Section 7 — Sidepanel Menu Summaries
The other settings items are dependent on installed panel type and self-
explanatory.
Note Simulcast Slave Address means: Last byte of the defined mainframe IP
address
UPK (User-Programmable Keys/Buttons) Index Card
In this index card, many buttons available in the panel sections, can be
assigned to other functions. The functions are individual for each button.
Select the desired function with pressing the
Modify button.
Note New with Kayak v692, the UPK register card has been expanded to program
the Black Preset button with additional functions.

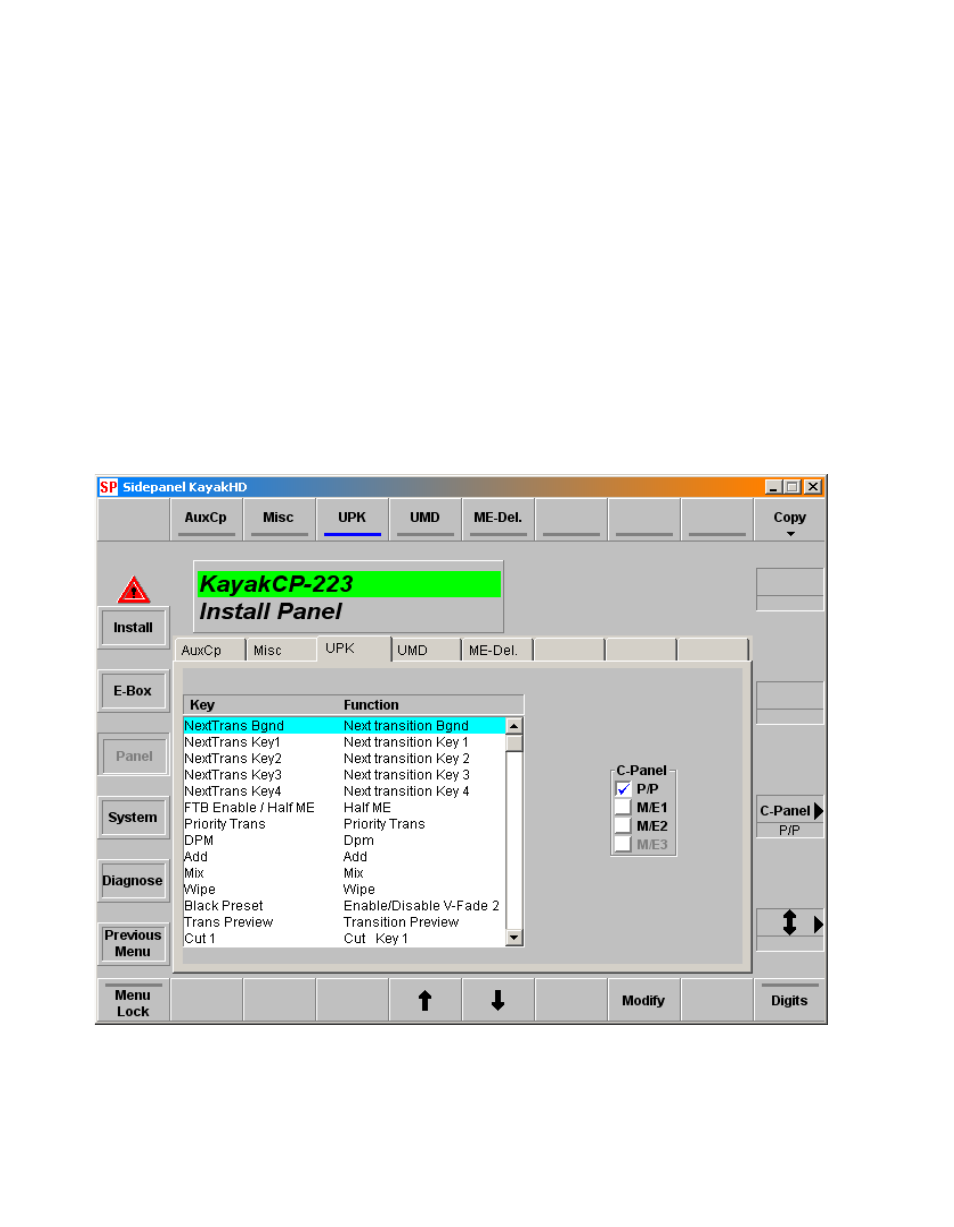

Figure 423. Sidepanel – Index Card UPK
Note The number of buttons is dependent on its panel type.
