310 Kayak — User Manual
Section 5 — Kayak Menu Summaries
Clips Record
Press the Clips Record button. The recorded groups A B C D of the embedded
audio are displayed above the Modify button.
• Group A contains audio channel CH1 to CH4
• Group B contains audio channel CH5 to CH8
• Group C contains audio channel CH9 to CH12
• Group D contains audio channel CH13 to CH16

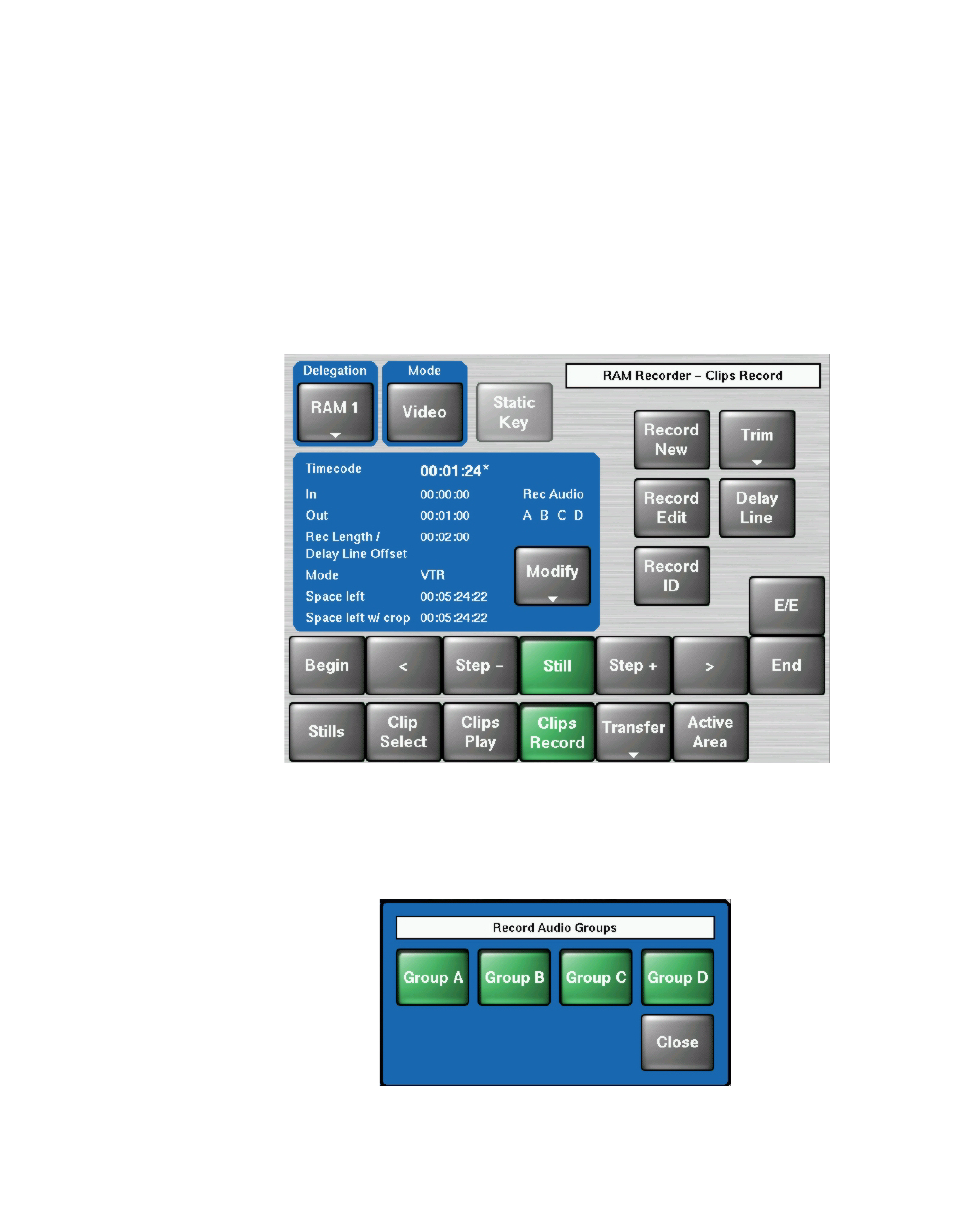

Figure 230. RAM Recorder Clips Record Menu
To change the audio group preselection press the Modify button and then the
Audio button. In the Record Audio Groups dialog, the groups and therefore the
audio channel quadruples (two pairs can be selected).
Figure 231. Record Audio Group Dialog
