M/E Menu
Function Buttons
Delegate
For details refer to the

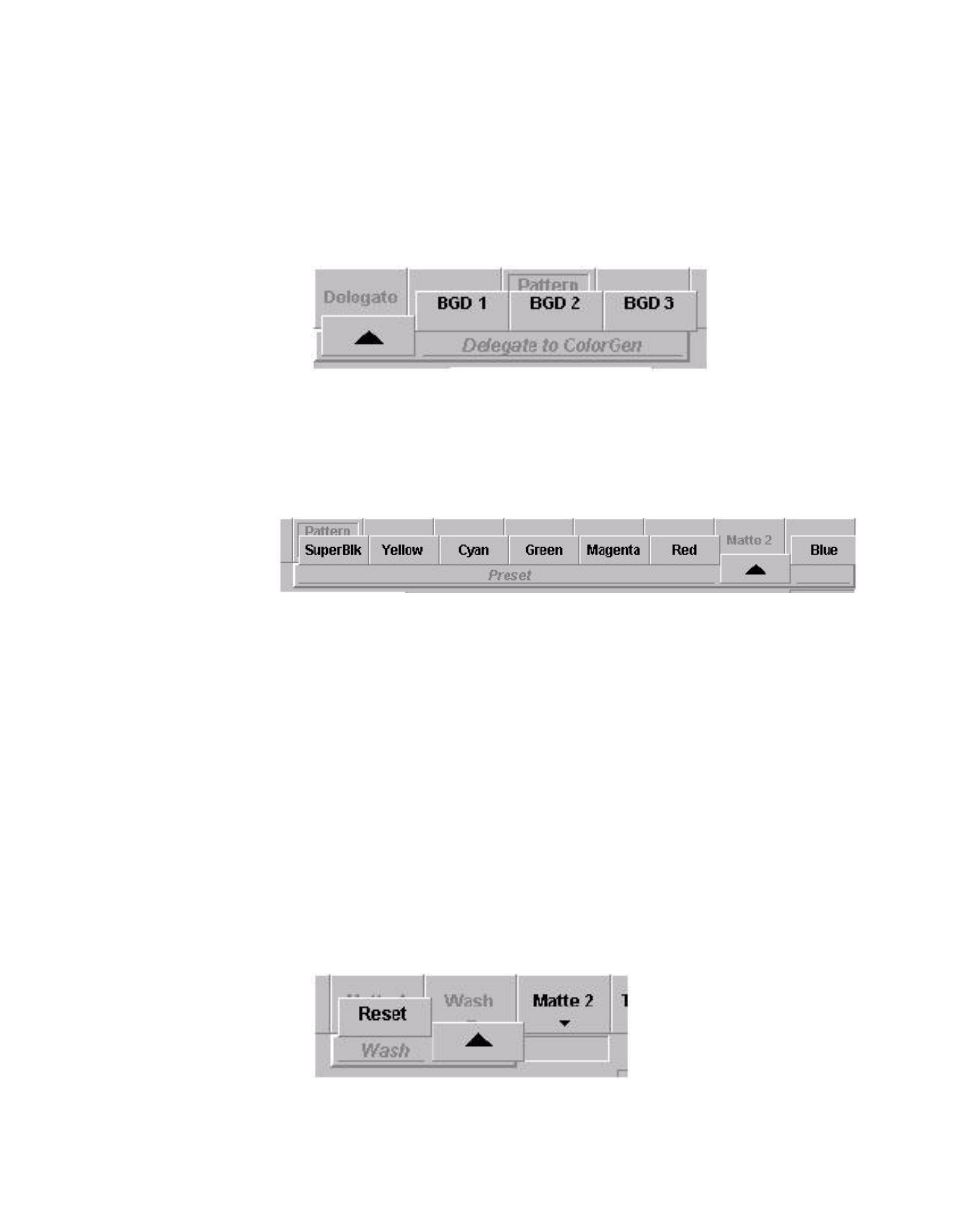

Figure 341. Delegate Function Buttons
Matte 1 / Matte 2
The
Matte 1
(
Matte 2
) button delegates the digipots so that the desired colors
can be adjusted. There are seven pre-adjusted matte colors selectable.
Figure 342. Matte Function Buttons
The Hue control serves to adjust the color. The Chroma control serves to
adjust the color saturation (chrominance). The Luminance control serves to
adjust the desired brightness of the color.
Note
Certain combinations of chrominance and luminance values will cause levels
to be too high and inadmissible colors. For this reason, an automatic can be
switched on to control limits the chrominance for defined luminance values.
You can easily check this by setting the Chroma control to maximum and then
turning the Luminance control slowly to maximum; the chrominance will be
reduced with increasing luminance values. If the automatic control is
switched off an illegal sign indicates a wrong adjustment.
Wash
The
Wash
button serves to reset the wash to: Angle-Vert, Pos-Mid and Soft-
Min and delegates the digipots to the wash parameters Angle, Pos, Soft.
Figure 343. Wash Function Buttons
