246 Kayak — User Manual
Section 5 — Kayak Menu Summaries
Misc Setup Menu

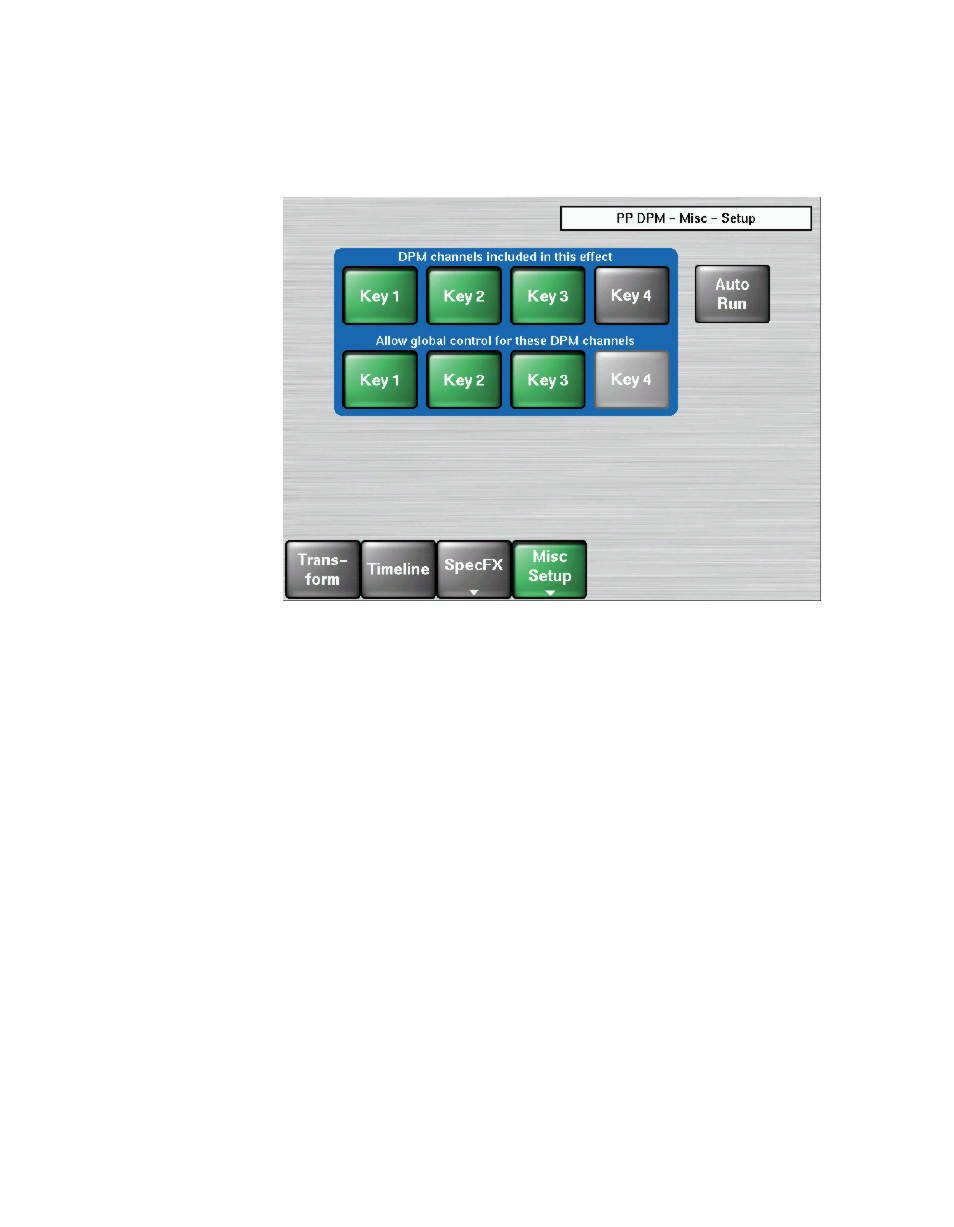

Figure 167. DPM – Misc - Setup Menu
This menu is the start menu for building an effect. In the top row you select
which channels should be part of the effect. Channels that are not included
will not be stored and will not be affected when the register is recalled. In
the second row you can switch on global control per included channel. If
global control is switched off for a global channel, that channel will not be
affected by global channel parameters; e.g. by a global rotation.
AutoRun Button
When AutoRun is on a recall of a DPM effect, it will automatically run that
effect. When AutoRun is off, the run has to be triggered either in the Show
Timeline menu by pressing
Play or by pressing the Cut button in the Effects
area again while the section is delegated to DPM control.
The AutoRun button is also used when a DPM effect is recalled by an E-MEM .
When On, a keyframe containing DPM Eff. No in the Define Memo will
trigger an immediate run of the relevant DPM effect. (Define memo is set in
the E-MEM define memo menu.)
When Off, a trigger has to be set to run the effect (in current software this is
only possible via the Sidepanel program.
