Wipes Menus
Point Of Use
Only the controls which affect the pattern generator itself are adjusted in
the wipe menu. Other parameters like size, border, direction, which are dif-
ferent per point of use are set in the corresponding M/E or Keyer menus.
For operating simplicity, you may decide to use the Complex wipe genera-
tors (Wipe1 and Wipe2) for main transitions, and the simpler Box and
Keyer wipe pattern generators for the keyers. However, the Kayak system
gives you the flexibility to use complex wipe generators with either main
transitions or for keying and masking, and also the ability to use Utility bus
video as the wipe pattern shape. Wipe resources and points of use are dia-
gramed in
Figure 135 on page 215 .

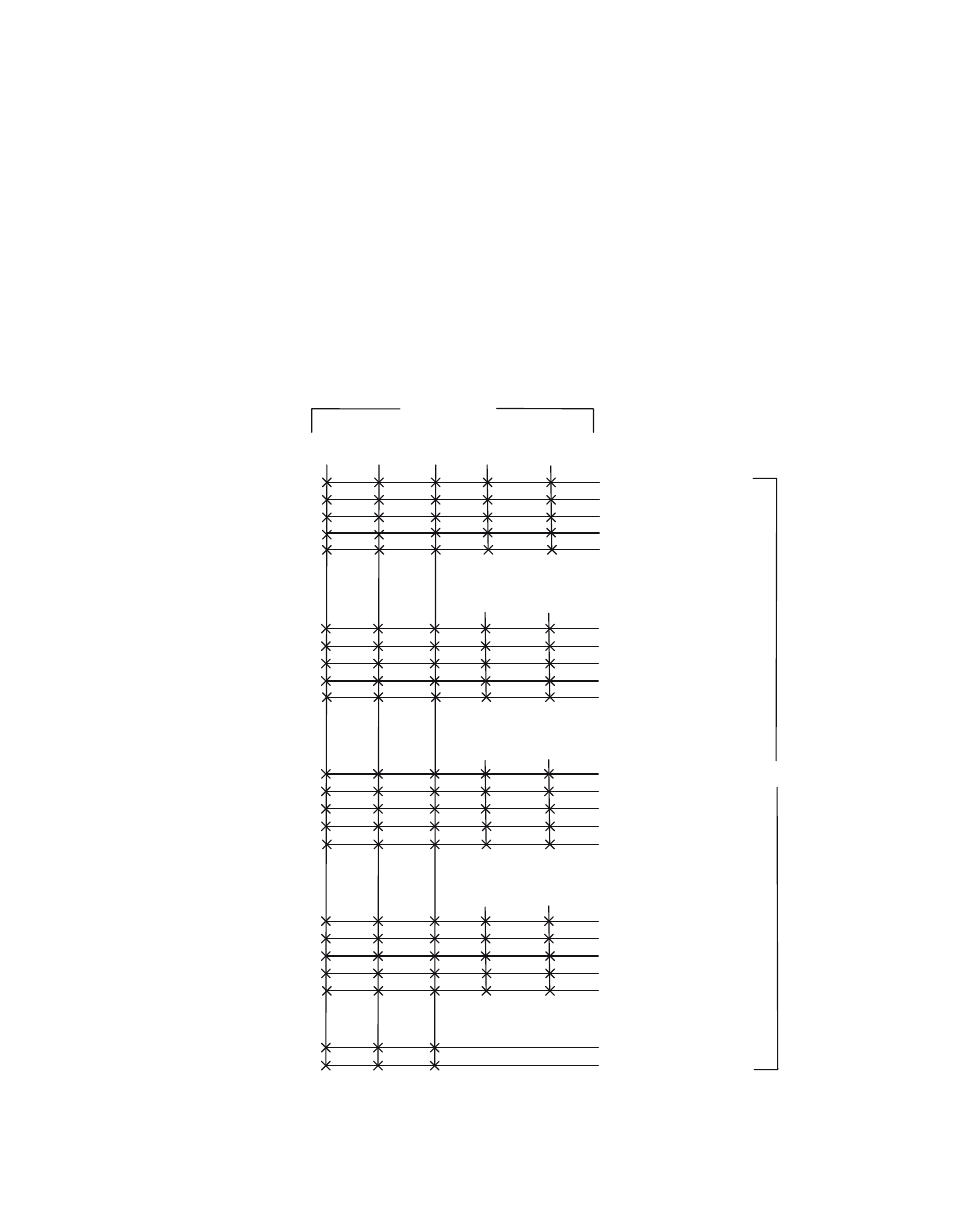

Figure 135. Typical Wipe Switching Matrix and Point of Use
Key 1
Transition
Wipe
Force Mask/Pst Ptn P1
Inhibit Mask/Pst Ptn P2
Key Fill Wash
Pst Ptn Border Wash
Transform Engine Wash
Transform Engine Wash
Transform Engine Wash
Transform Engine Wash
Force Mask/Pst Ptn P1
Inhibit Mask/Pst Ptn P2
Key Fill Wash
Pst Ptn Border Wash
Key 2
Force Mask/Pst Ptn P1
Inhibit Mask/Pst Ptn P2
Key Fill Wash
Key 3
Pst Ptn Border Wash
Force Mask/Pst Ptn P1
Inhibit Mask/Pst Ptn P2
Key Fill Wash
Key 4
Pst Ptn Border Wash
Transition 1 Border Wash
Wipe Resource
Point of Use
Complex Wipe
1
Utility Bus
2
Key 1
Box Wipe
Key 1
Simple Wipe
Key 2
Box Wipe
Key 2
Simple Wipe
Key 3
Box Wipe
Key 3
Simple Wipe
Key 4
Box Wipe Key 4 Simple Wipe
