Config - H/V Blanking Menu
H/V blanking settings that used to only be accessible with the Sidepanel
program are now available on a Kayak menu.
Select Config | E-Box | H/V Blanking to bring up the menu ( Figure 118 ).

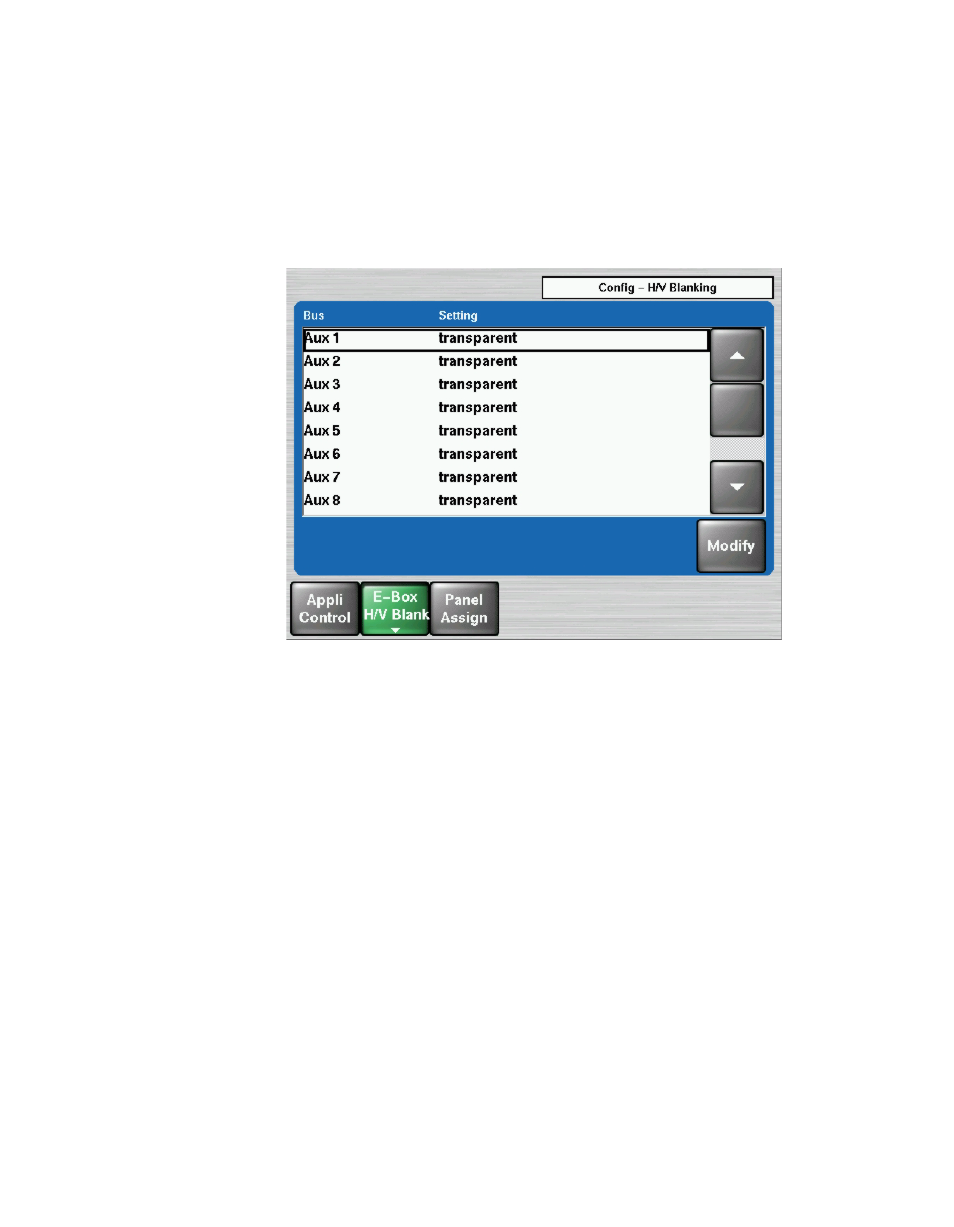

Figure 118. Config H/V Blanking Menu
This function can be selected for each output and AUX busses separately.
The Modify button can be used to switch between the transparent and
blanked settings. In the blanked position the V-gap and the H-gap is
replaced by BLACK and the internal sync frame is added. In the trans-
parent position the information contained in the V-gap (VITS, videotext
etc.) are retained.
