292 Kayak — User Manual
Section 5 — Kayak Menu Summaries

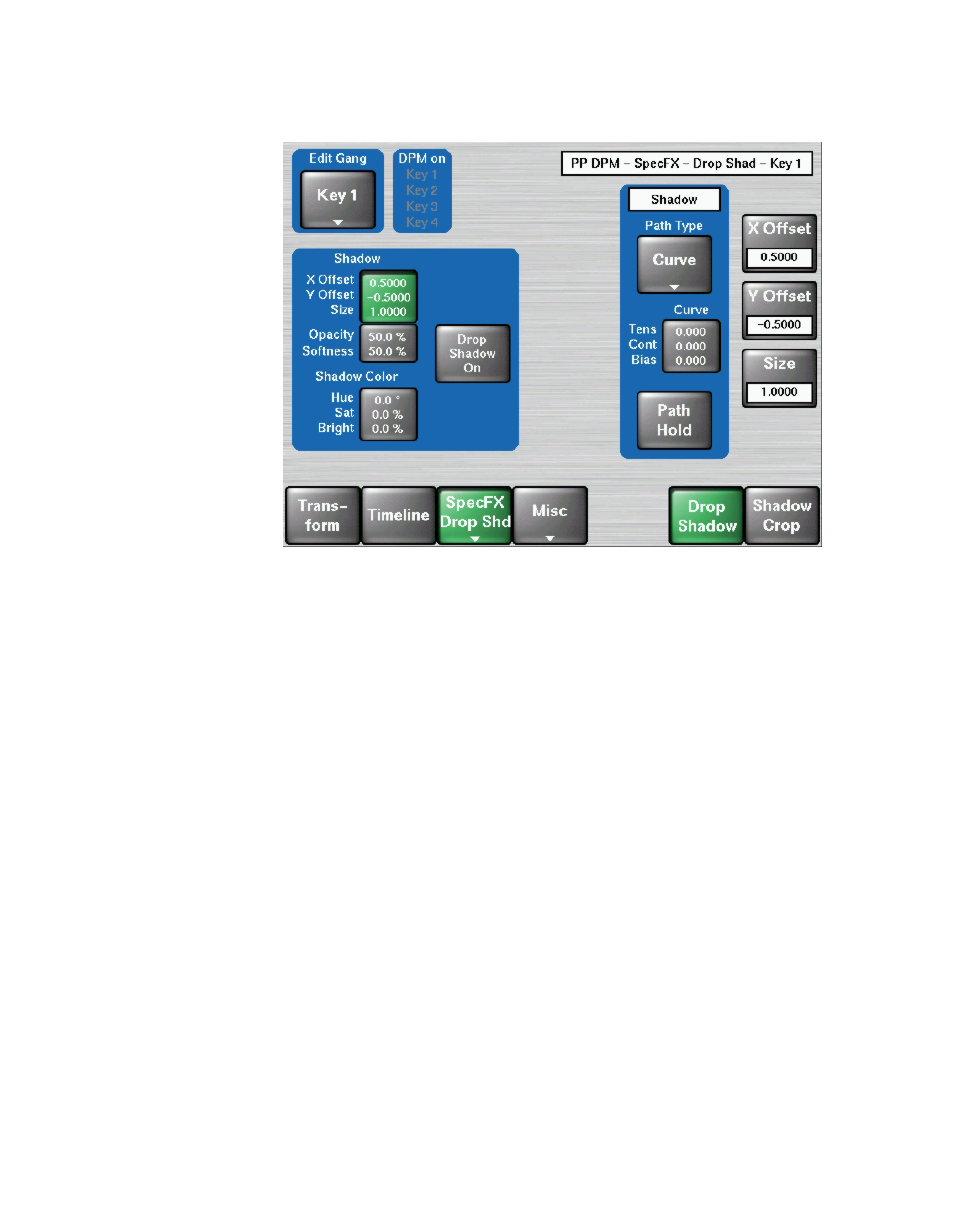

Figure 219. DPM – SpecFX– Drop Shadow2
Drop Shadow Controls
The DPM button near the 3D positioner delegates it to drop shadow control.
The 3D positioner X and Y axis adjust the drop shadow offset from the
primary image and the Z axis controls the size of the drop shadow.
Shadow Crop
The Shadow Crop controls are used to adjust shadow cropping and edge soft-
ness. The current parameter names and values are displayed on the data
pads.
