Kayak — User Manual 497
Installation Menus
Router Index Card
Index card for selecting and modifying the parameters of external routers.

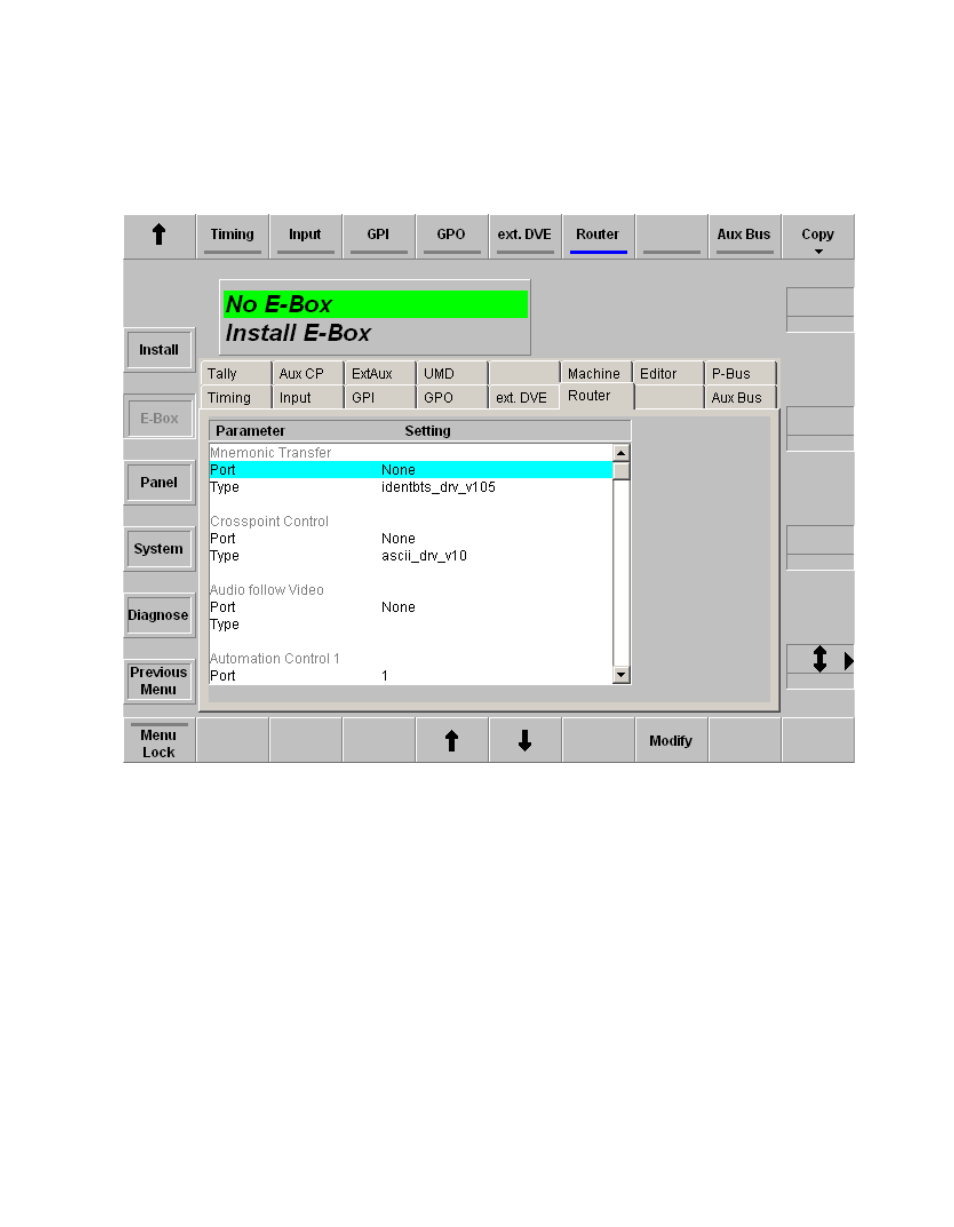

Figure 410. Sidepanel – Index Card Router
Two protocols and the assigned ports are selectable:
Mnemonic
Transfer: Name transfer from the external router to the switcher
control.
Crosspoint Control: Control protocol for the external AUX buses.
Audio follow
Video: Control protocol for Audio follow Video, e.g.
“esam2_V308”
Automatic Control: Control protocol for Automatic control system protocol,
e.g. “acos_V300” (For more information, see
ACOS Pro-
tocol on page 498 .)
