Kayak — User Manual 223
Keyer Menus
Keyer Menus
The Keyer menu controls are organized into several subcategories, each
with different menu selection based on the type of key. These menus are
accessed by touching the
Keyer button in the Home menu. Keyer selections
like key type, Key Invert, Matte Fill , can be made for any keyer from the Main
panel using the Keyers subpanel. These controls are on the Main panel for
immediate access.
However, key adjustment for detail, such as clip and gain, and mask con-
trols, are accessible from the corresponding Keyer menu. The Keyer sub-
panels and the corresponding menus will reflect and track the changes
made by either set of controls.
The Keyer menu controls are organized into several subcategories, each
with different menu selection based on the type of key. These menus are
accessed by selecting the appropriate keyer via the
Delegation popup button,
then the category is chosen from the Mode , Priority or Mask and Mattes buttons
at the bottom of the menu.
Note Utility Bus 2 is only available on KayakHD systems.

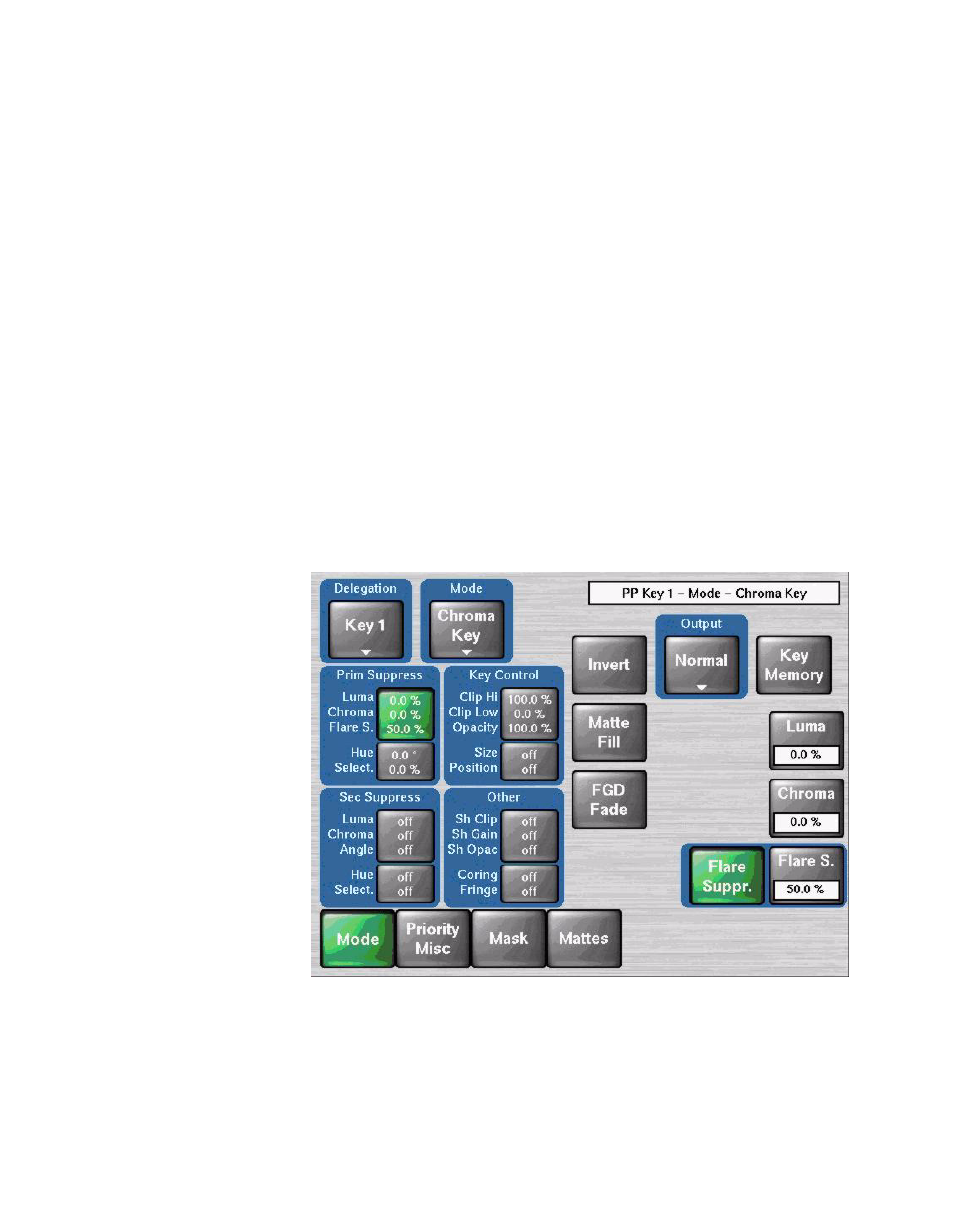

Figure 143. Keyer Menu
The Keyer menus allow to control the key generators for each of the full-
function M/Es. The Keyer menus, like the Wipe menus, have a delegation
area at upper left, which in this case contains the key generator selector.
