Kayak — User Manual 405
Startup Menu
Note The run-up bitmap and the background bitmap in the Startup menu can be
replaced by user-defined ones. During run-up, the system is looking for the
files
c:\programme\dd35\bin\logo.bmp and
c:\programme\dd35\bin\logo2.bmp If not available, the
internal default logo will be displayed. The file logo2.bmp is optionally. If
not available, the logo.bmp is used for both purposes.
Selection of the Mainframe
Actuating the E-Box button calls a listbox in which the main frames con-
nected to the mains are listed with IP Net Address. After selection of a main
frame, the
Connect and Disconn buttons are activated.
A corresponding selection connects or disconnects the connection.

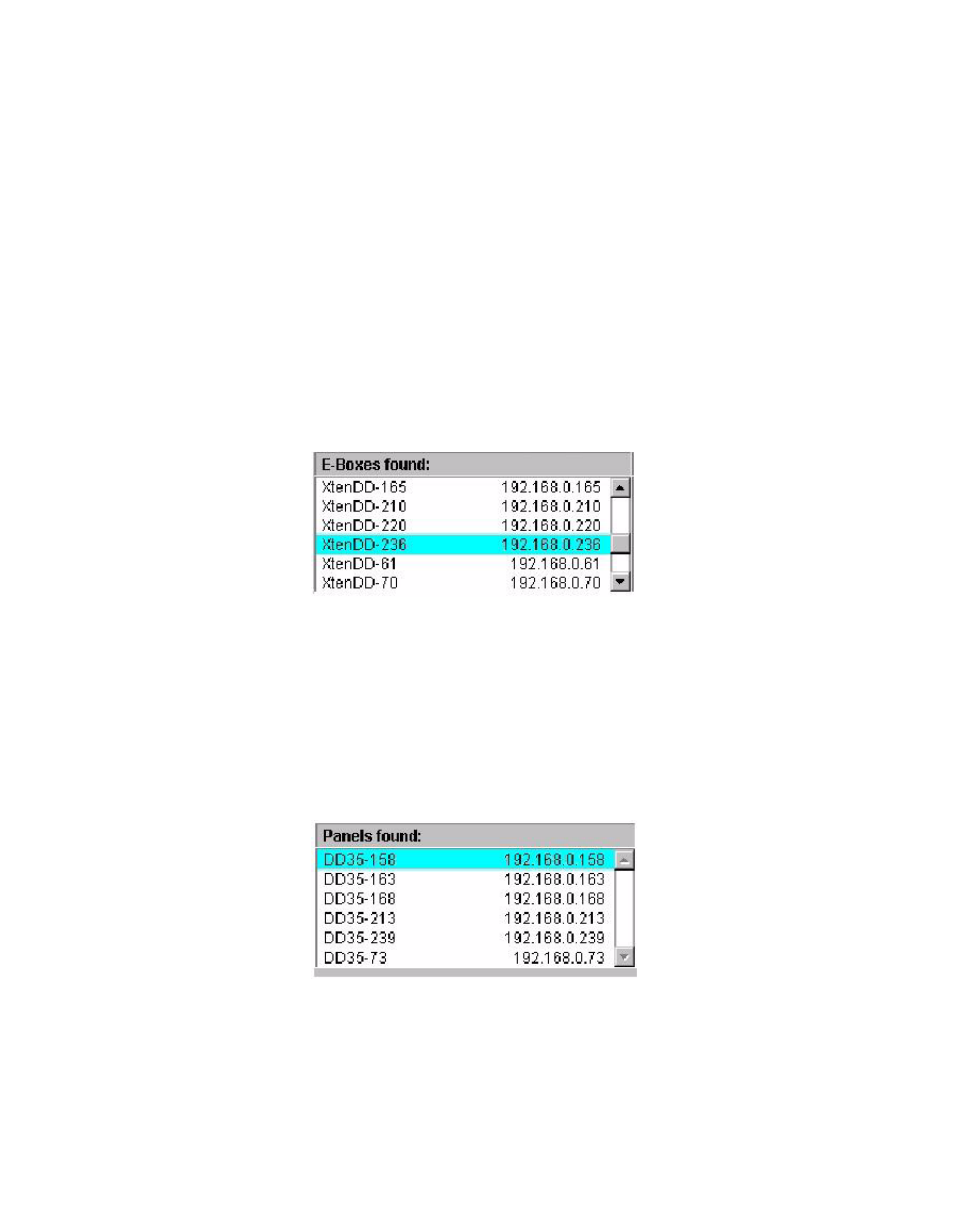

Figure 324. E-Box Listbox
Selection of an Attached Panel
Actuating the Panel button calls a listbox in which the switcher panels con-
nected to the mains are listed with IP Net Address. After selection of a
panel, the
Attach and Detach buttons are activated.
A corresponding selection connects or disconnects the connection.
Figure 325. Panel Button Listbox
