Kayak — User Manual 71
3-D Digital Effects Concepts

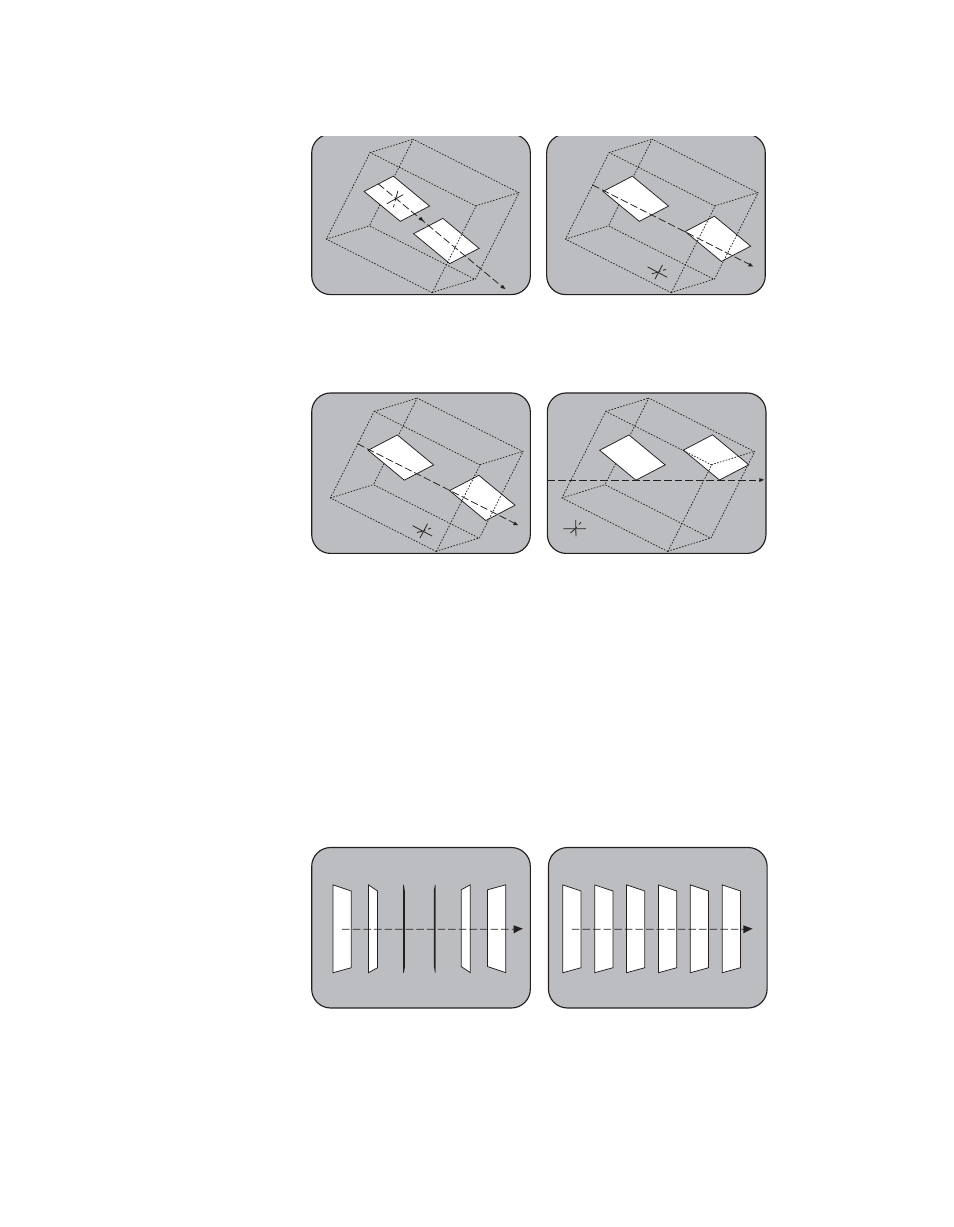

Figure 39. Channel Translate with Global Rotated
Figure 40. Global Channel Translate with Global Rotated
Post Transform Space
Post transform (Post Xform) is a special transform function that only affects
size and location operations. It does not change the perspective of the
image (
Figure 41 ). This can be used as a convenient method to quickly
project pictures onto new locations of the screen. For example, if an image
has the right perspective but is partially off screen, it can be brought back
on screen without changing the perspective.
Figure 41. Post Transform Translation
Y
X
Z
Global C
hannel
0865_05
Logical Channel Source Translate
Along X Axis
Y
Z
X
Global C
hannel
Logical Channel Target Translate
Along X Axis
Y
Z X
Global C
hannel
Y
Z
X
Global C
hannel
Camera Channel
0865_0
6
Global Channel Source Translate
Along X Axis
Global Channel TargetTranslate
Along X Axis
0865_0
9
X Axis Translation
with Locate 3-D
X Axis Translation
with Post Xform
