Kayak — User Manual 473
DVE Menus
Highlight Effect No.
This feature is only a help to get a quick overview, which channel is used in
which effect. This is only important for customers using the DPM as a mul-
tiple DVE. The overlay row is special and consists of two parts, which have
to be selected independently:
Use DPM Source

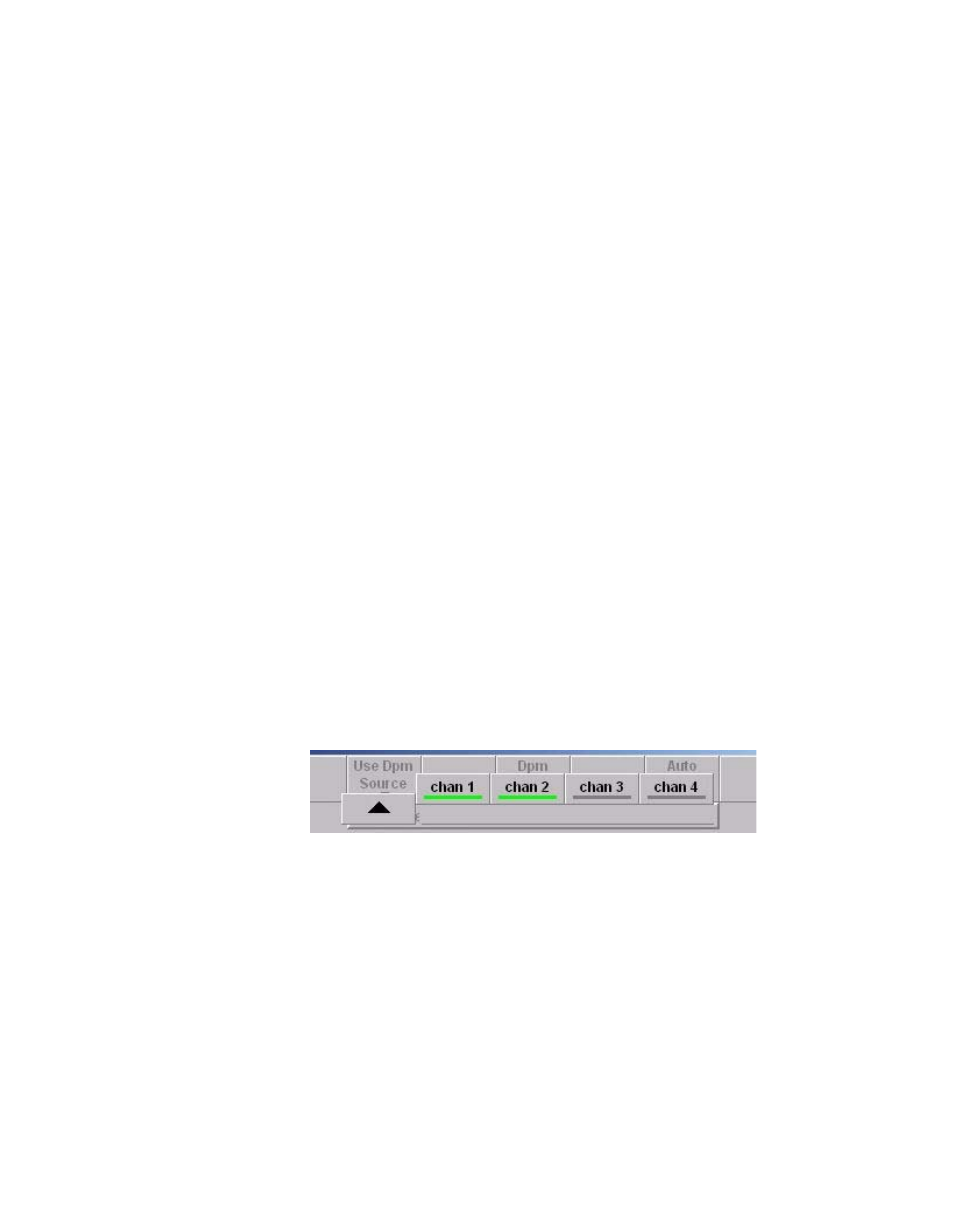

Figure 384. DPM Channel Selection
DPM Channel selection: You can select per local channel whether this
channel should be affected by the global channel. Click the buttons with the
mouse to select or deselect.
no show No highlighting
1 incl. Highlight all effects which contain at least one of the
selected channels.
all incl. Highlight all effects which contain all of the selected
channels.
exact Highlight all effects which contain exactly the selected
channels.
chan 1 Toggle selection channel 1: ”-- -- --” is off, ”chan 1” is on.
chan 2 Toggle selection channel 2: ”-- -- --” is off, ”chan 2” is on.
chan 3 Toggle selection channel 3: ”-- -- --” is off, ”chan 3” is on.
chan 4 Toggle selection channel 4: ”-- -- --” is off, ”chan 4” is on.
global Toggle selection global: ”-- -- --” is off, ”global” is on.
