214 Kayak — User Manual
Section 5 — Kayak Menu Summaries
Matrix
Wipes consisting of sequential revelation of picture squares (matrix wipes)
In addition to providing standard patterns, the Kayak production switcher
offers the possibility to prepare and store user-defined wipe patterns.
The Wipe button in the Transition subpanel is a DPOP (Double-Press Open)
button; double-pressing it calls up a variation of the M/E menu.
(
Figure 134 )

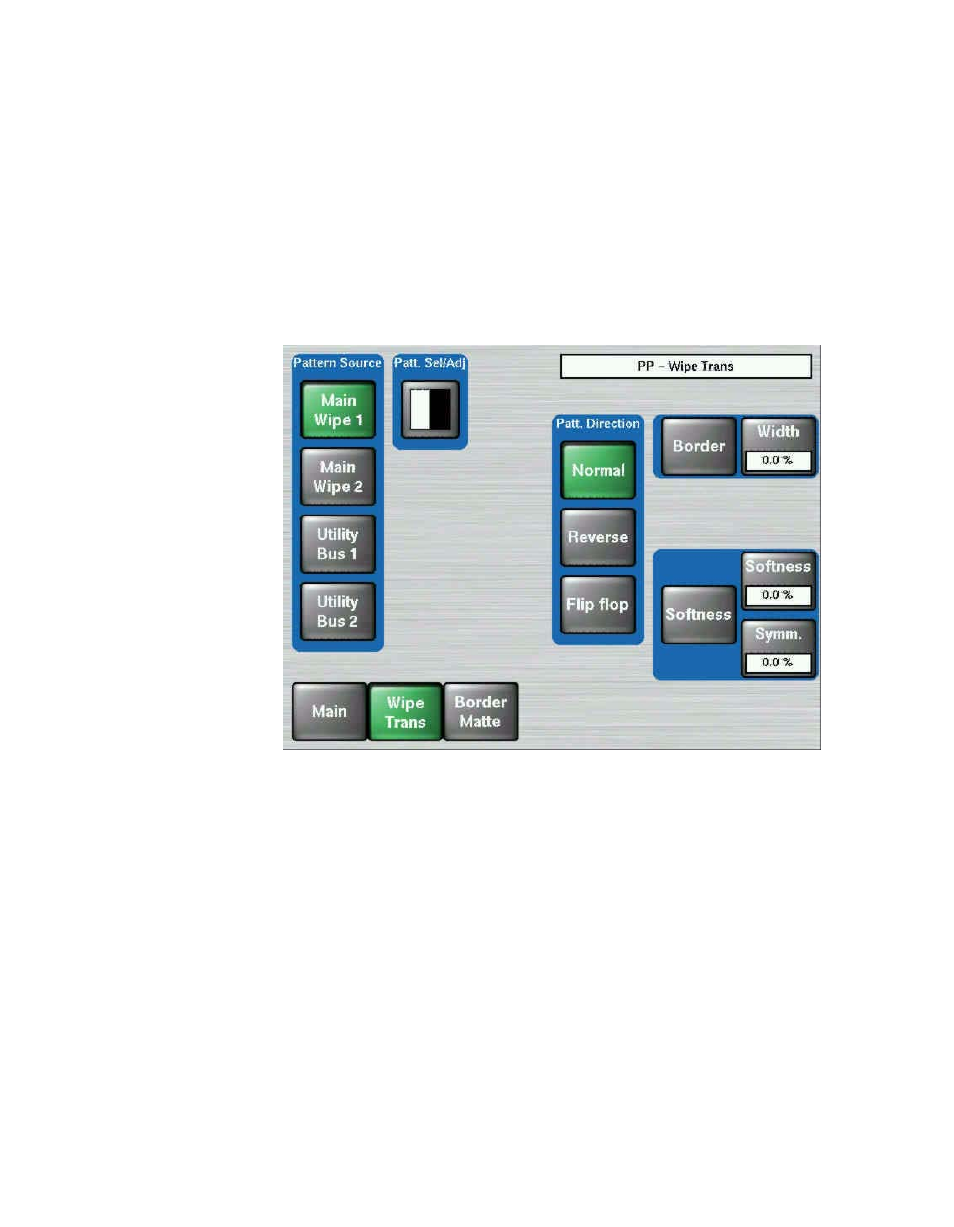

Figure 134. Wipe Menu – DPOP
Delegation buttons are located on the left, and controls for Pattern Direc-
tion, Border, Softness, and Border Matte are available. Touching the
Patt Sel/Adj button opens a variation of the pattern selection menu
( Figure 133 on page 213 ).
