Grass Valley Kayak HD v.6.9.3 - Manual (Page 322)

322 Kayak — User Manual
Section 5 — Kayak Menu Summaries
Transfer Menu (Using Kayak Menu)
Stills/Clips exported from the KayakHD to the PC contain metadata. In
this part additional information is stored; the slot position in the Ram
Recorder, active area, included audio channels, etc. The slot position, if
available, is used for transferring the files back into the RAM Recorder. If
the files on the PC are generated by the Image Converter, or they are
retrieved from a KayakDD or an XtenDD series switcher, the slot informa-
tion is missing and a slot must be selected prior to the transfer.

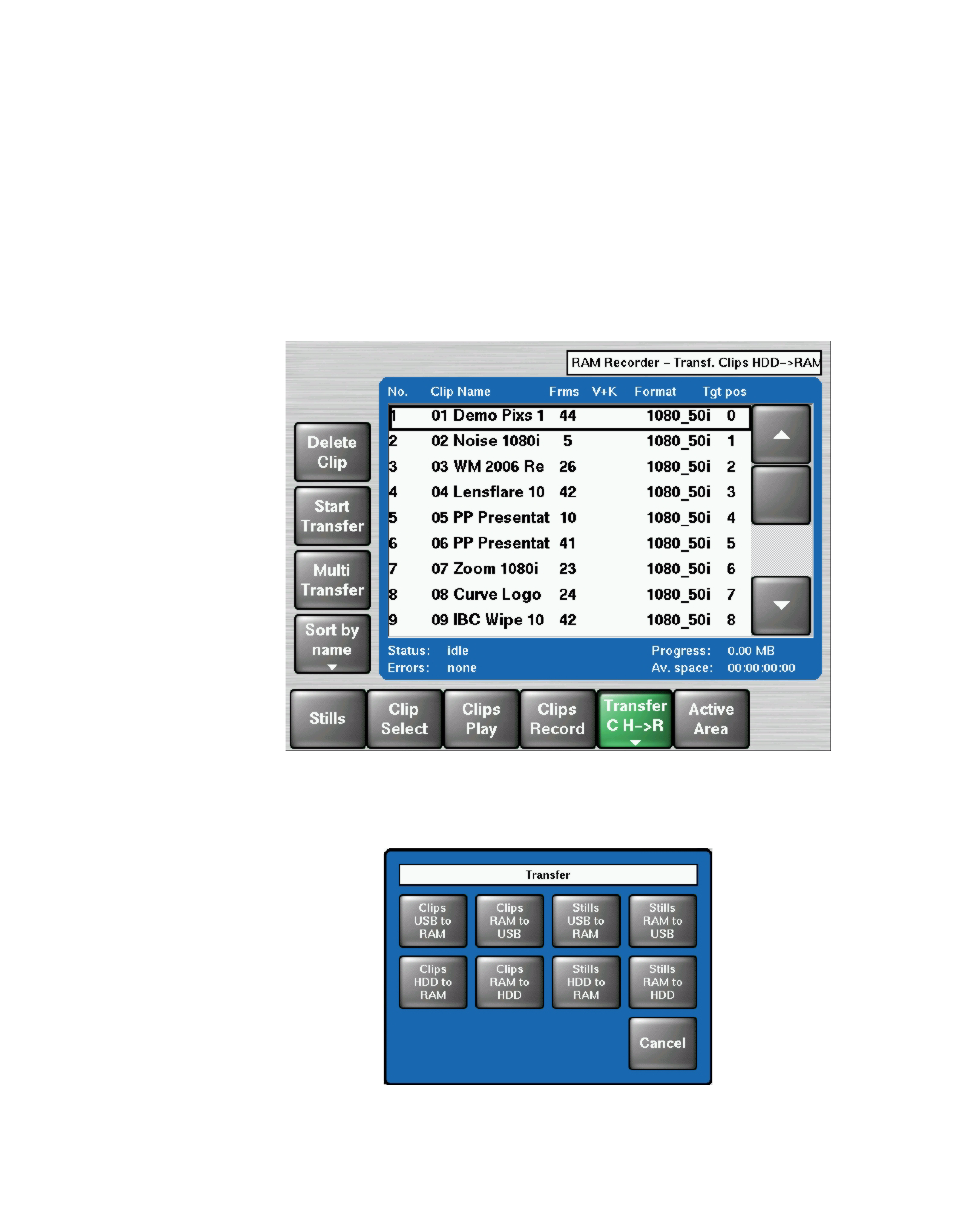

Figure 241. RAM Recorder Transfer Menu
1. Press the Transfer X->Y button to select the transfer direction.
Figure 242. Transfer Dialog
