DVE Menus
DPM Edit Menu
New with version 692, the DPM menus have changed. The register cards
for parameter settings are now designed in three levels instead of two
levels to support the addition of the new Output Recursive.
General Control Principles of the Index Cards
The edit control consists of 2 rows of 8 index cards.
• You can toggle between the three rows of 8 with the arrow button (top
row left).
• To select an index card press the corresponding button in the top row of
the GUI panel.
Most index cards have several pages (functions) with up to 4 controls.
• You can toggle through the functions with the function select button
(top row right of the GUI).
• The up to 4 controls per page can be controlled by the 4 digipots on the
right side.
• Some controls can also be set with numeric values or using the mouse
cursor (see below).
Cursor Modes

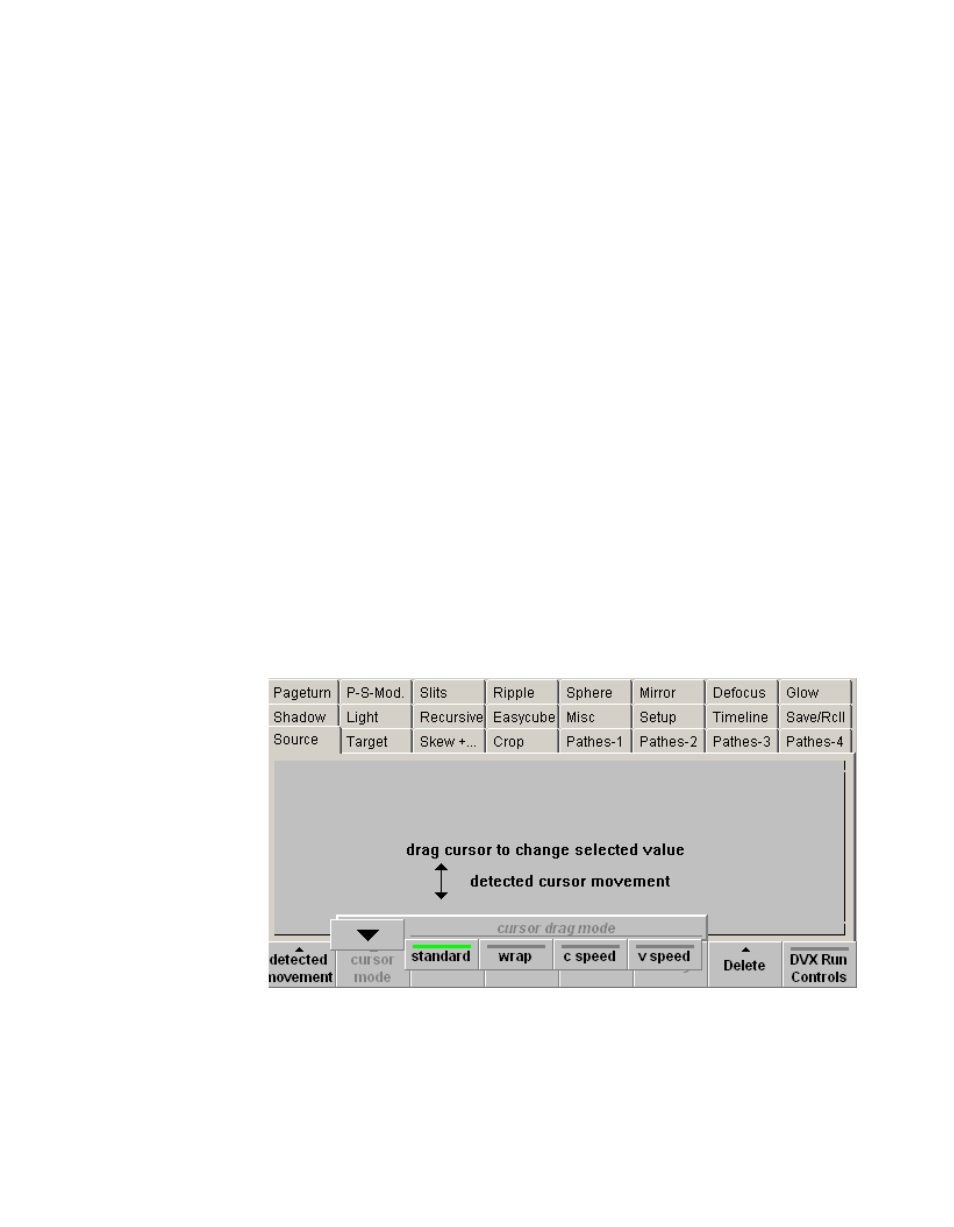

Figure 386. Sidepanel – Cursor Modes
Data entry of the parameters is possible by clicking into the respective
parameter field (a numeric key pad appears) or by cursor movement inside
the cursor pad. Different cursor modes are selectable:
