Background Bus Selection
Background Bus Selection

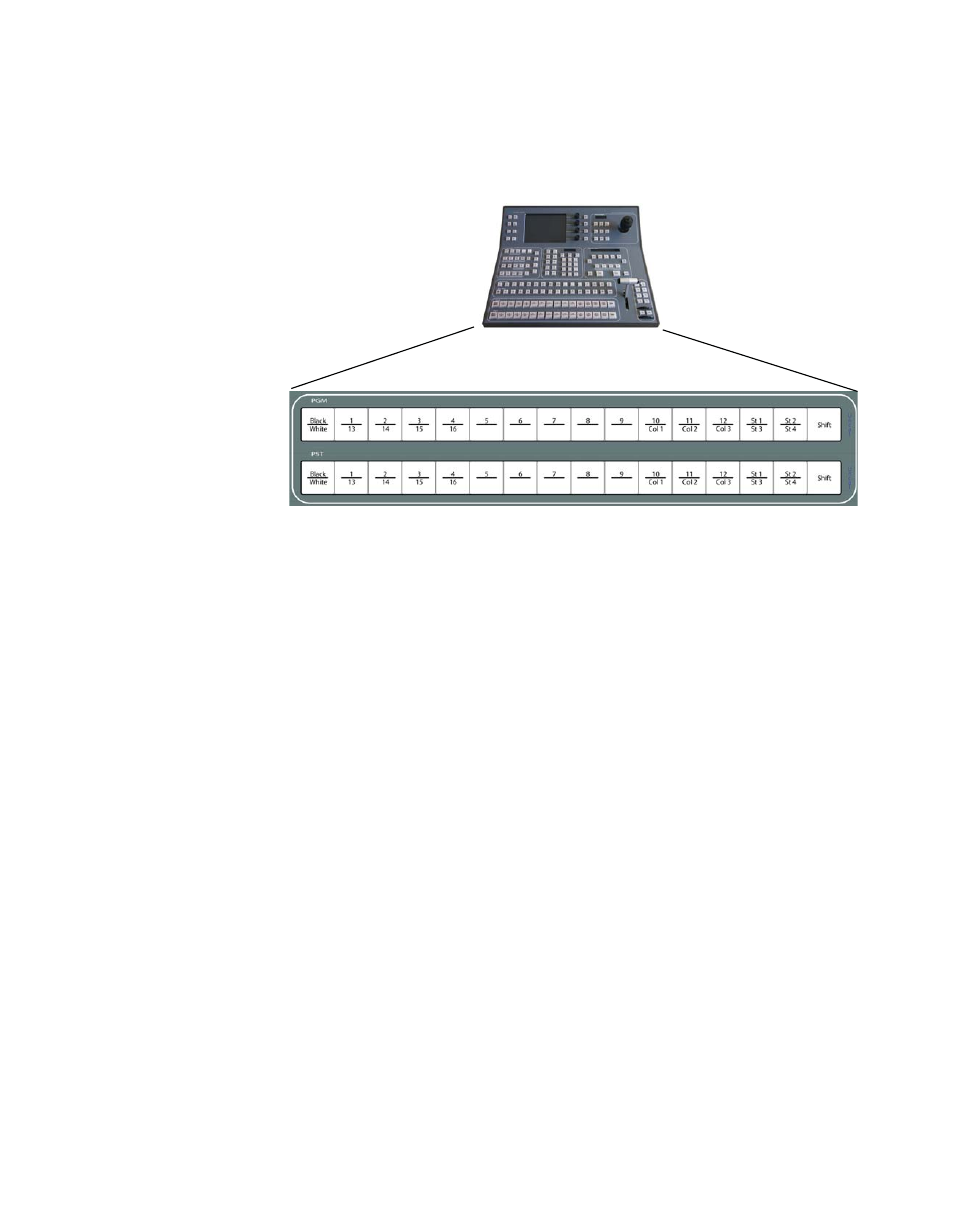

Figure 63. Subpanel Background Bus Selection
Sources are selected on the PGM and PST row. Each row contains 15 source
buttons and a
Shift button. Only one source at a time can be selected for each
bus on the row of interlocked buttons. If more than one button on a row is
pressed, the last pressed one will be executed.
Holding down a source select button when recalling an E-MEM register
performs a source override. That source will be held on that bus even if a
register is recalled and/or run that specifies a different source as long as the
source button is held.
Unshifted and Shifted Sources
When the Shift button is not pressed, the row of source selection buttons
accesses inputs 1 to 12. When the Shift button is held down, it lights and the
row of crosspoints now accesses inputs 13 to 16. If a selection is made on
the shifted bus, the
Shift button remains lit to indicate the tallied input is
shifted. If another selection is made without holding down the Shift button,
the row returns to an unshifted state and the Shift button light goes off.
