The Wipe menus allow selection and modification of wipe patterns. The
Wipe menus, like the Keyer menus, have a delegation popup button In the
upper left area, the button next to it contains a pattern touch pad, which
displays the currently selected wipe pattern (
Figure 133 ).

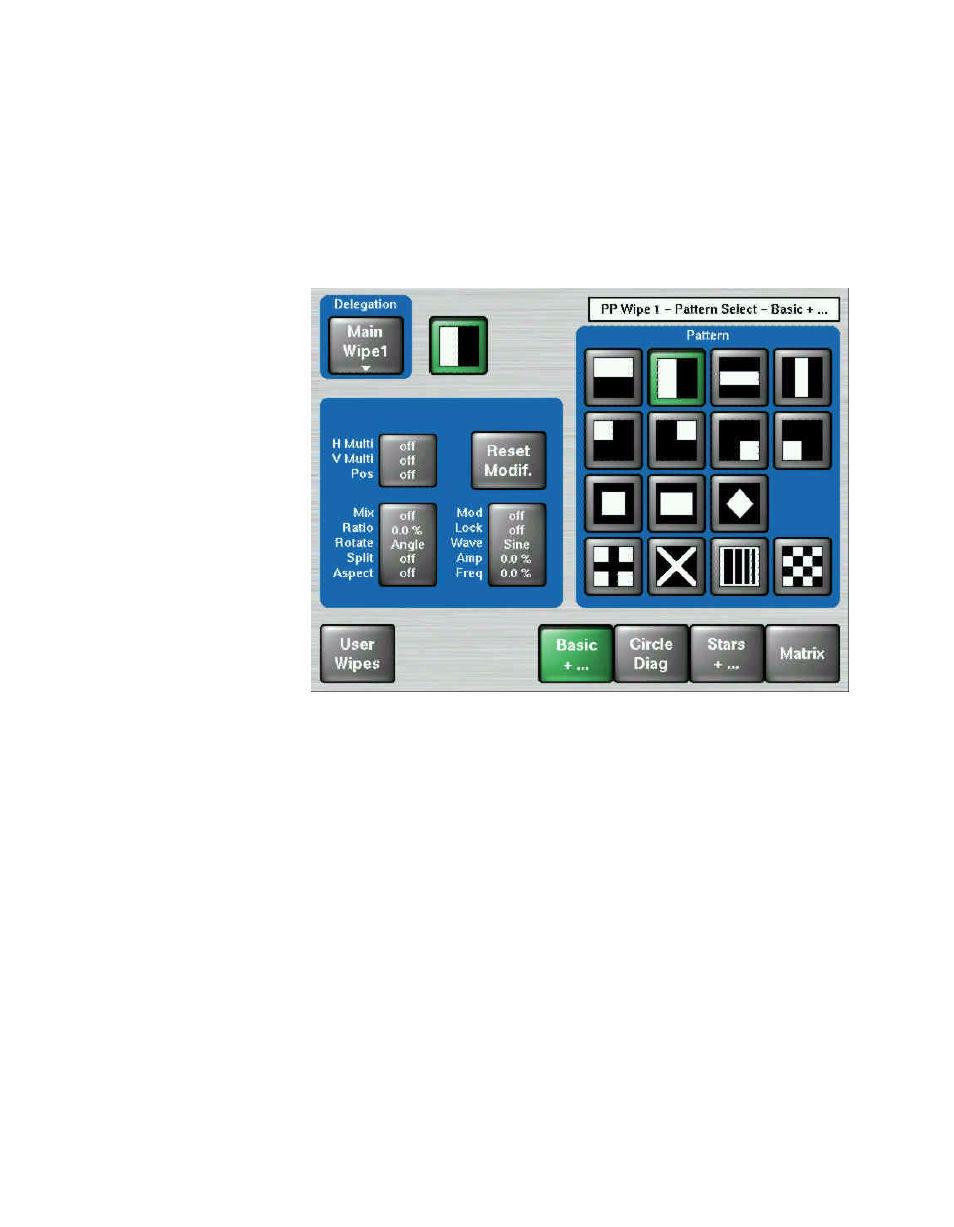

Figure 133. Wipe Menu – Pattern Selection
In the wipe pattern selection panel, 16 wipe patterns may be directly
selected. Further wipe patterns can be recalled by pressing one of the four
wipe group selection buttons
Basic , Circle Diag , Stars or Matrix :
Basic +
Combinations of horizontal, vertical, and diagonal edges
Circles / Diag
Enclosed shapes, expanding from the picture’s center, combinations of hor-
izontal, vertical, and diagonal edges and combinations of horizontal and
vertical edges rotating about various center points (clock wipes)
Stars +…
Enclosed stars and shapes, expanding from the picture’s center, and zigzag
moving various directions
