364 Kayak — User Manual
Section 5 — Kayak Menu Summaries

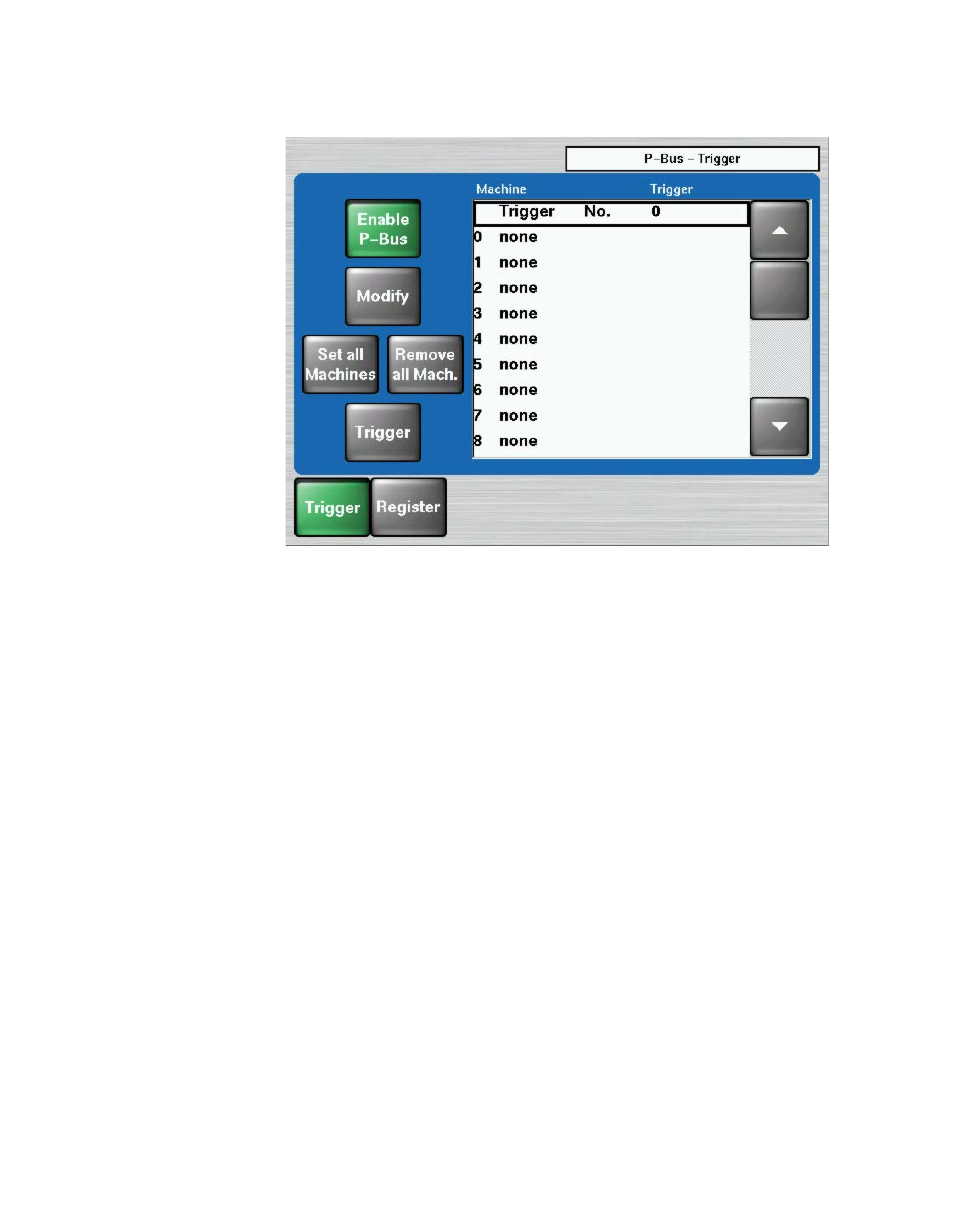

Figure 290. P-Bus -Trigger Menu
The P-Bus enables you to manually trigger machines defined in the Install/
E-Box/P-Bus menu. At present, only 1 trigger can be output on the P-Bus, that
then reaches all machines for which in this case a trigger is adjusted.
In the 1st line of the table, the trigger number is present (can be used, but
must not). In the other lines, this trigger number is adjusted for the respec-
tive machines.
The popup of each machine provides the following selection possibilities:
No Command —This machine does not get any trigger
Default Command —This machine gets the trigger number being in the 1st line
All other lines —Here, each trigger is specified with the name being provided
for this machine. A selection in this area also changes the general trigger
number in the first line, which is then applicable for all machines.
Only those machines that are activated in the Install/E-Box/P-Bus menu, will
be triggered. The trigger will then be activated by the button with a similar
name. It then reaches all machines with the trigger name listed below.
