Kayak — User Manual 559
Configuration Menus
Record
Start and stop recording macros.
Insert Pause
Active only if the Record button is selected.

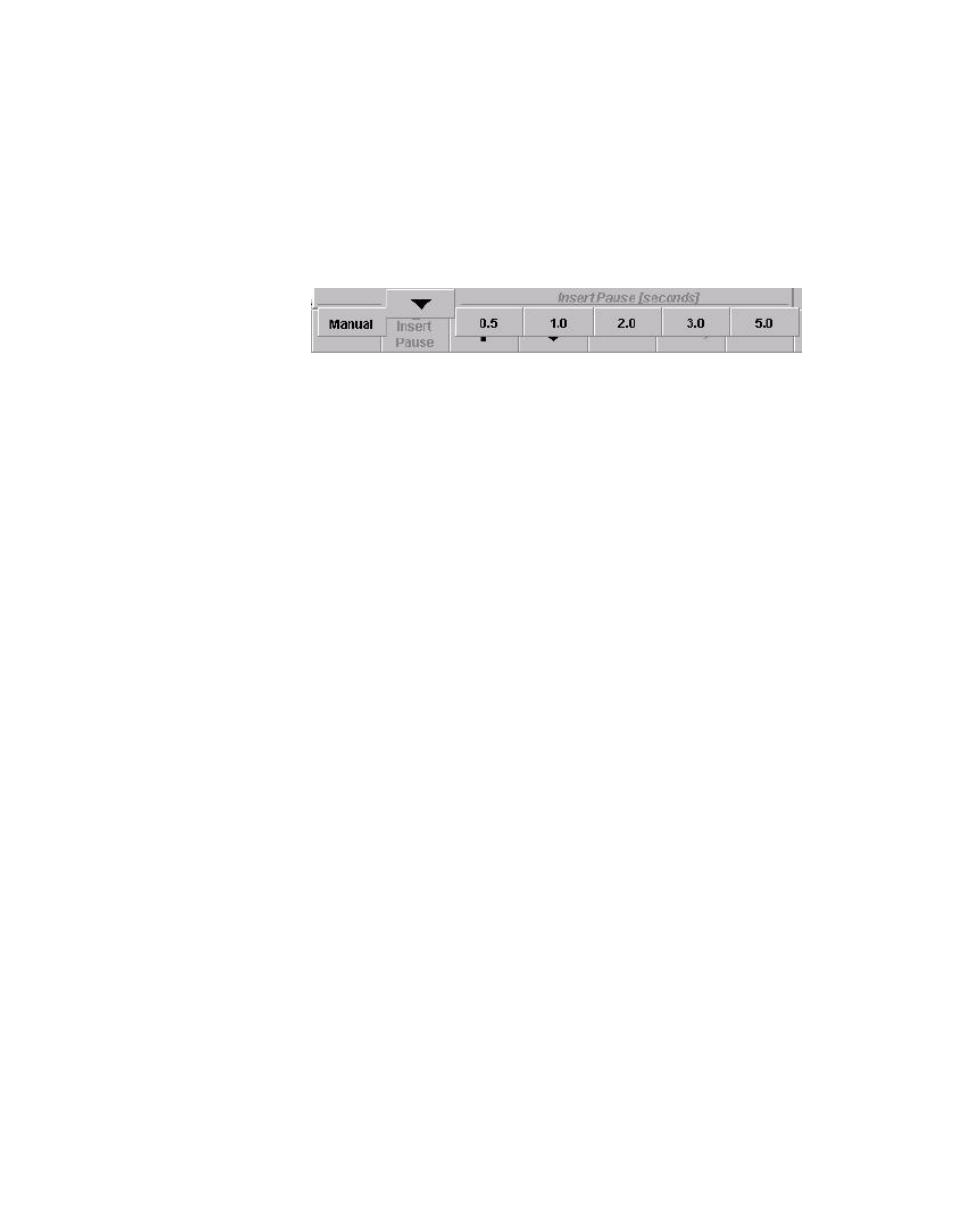

Figure 462. Sidepanel – Insert Pause Button
Edit Macro - View Macro – Modify
For details refer to the section on Attached Macros Menu on page 578
Cursor Up/Down
The vertical cursor softkeys and the vertical cursor digipot are used to nav-
igate within a list box. The complete cursor control is always relevant.
How to Store a Macro
Make sure that in the Config menu the Running Application is selected to
witch you want to add the macros. If the cursor is not on a Running Appli-
cation the menu item menu is disabled.
Select with the cursor button, the digipot or by mouse click a free Key No.
in the Make Memo list field.
Push the Record button to start recording the macro. Push the desired
control panel buttons and adjust the desired digipots. If a pause is needed
between commands, push the Insert Pause and select the desired time (0.5,
1.0, 2.0, 3.0 or 5.0 in seconds), then proceed with the commands. At the end
of the macro push Record again to stop recording.
Note If no pause is inserted all commands are executed immediately.
If you want to rename the stored commands push Modify and select
Rename in the overlay. Type in the name with the keyboard overlay.
To copy a macro to another Key No. select the macro and push Modify . Select
Copy in the overlay. Type in the desired Key No. and confirm with Enter .
Macros can also be swapped by selecting Swap in the Modify overlay.
To delete a macro select the macro in the list, push Modify and select Delete .
