Kayak — User Manual 309
DPM Menus
HD RAM Recorder Menus
The HD RAM Recorder menu is accessed via the Home Menu.

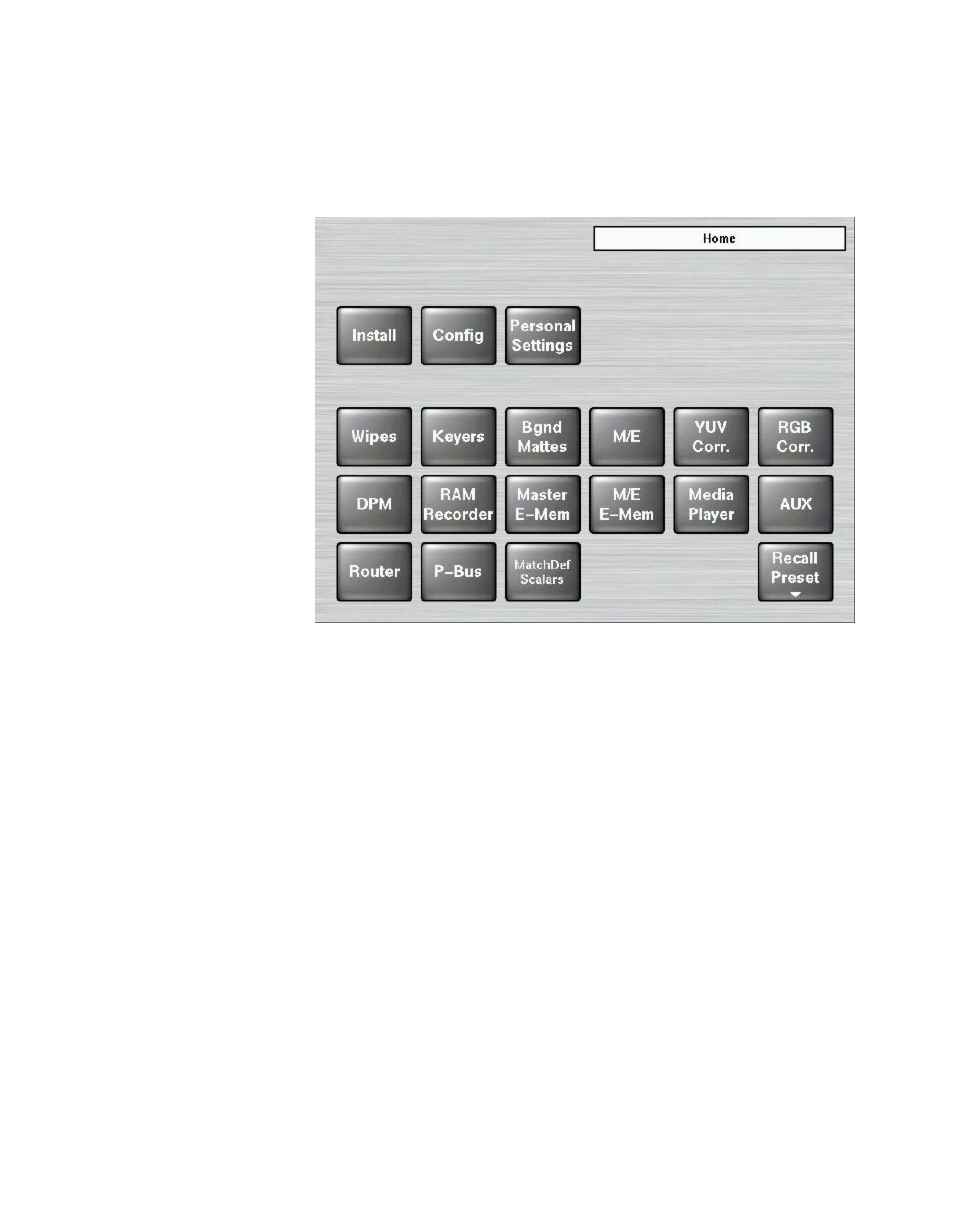

Figure 229. Home Menu
RAM Recorder Audio Functions
New with software version V693 , basic Audio features with Embedded Audio
were added to the RAM Recorder functionality.
Memory Size vs Storage Time
The maximum storage time depends upon the selected TV standard,
selected audio channels and the equipped memory board (4GB or 8GB).
For the whole switcher the total amount of storage is approximately:
• HD = over 23 seconds per video (over 57 seconds video with KlipCache
memory expansion option). The storage time for HD video with
embedded audio will be reduced depending on the number of selected
audio groups. With four audio groups selected the clip size increases
5%
• SD = approximately 2 min. 15 sec per video (5 min. 30 seconds video
with KlipCache). The storage time for SD video with embedded audio
will be reduced depending on the number of selected audio groups.
With four audio groups selected the clip size increases 20%
