Kayak — User Manual 565
Configuration Menus
When you learn macros via the control panel, you will find out that some
commands are learned as “set by value” and others by “toggle” (e.g.
On/Off
command).
When you create the commands directly in the command editor you have
the choice to select the way most convenient to you.
Analog value (e.g. Wipe Border Width):

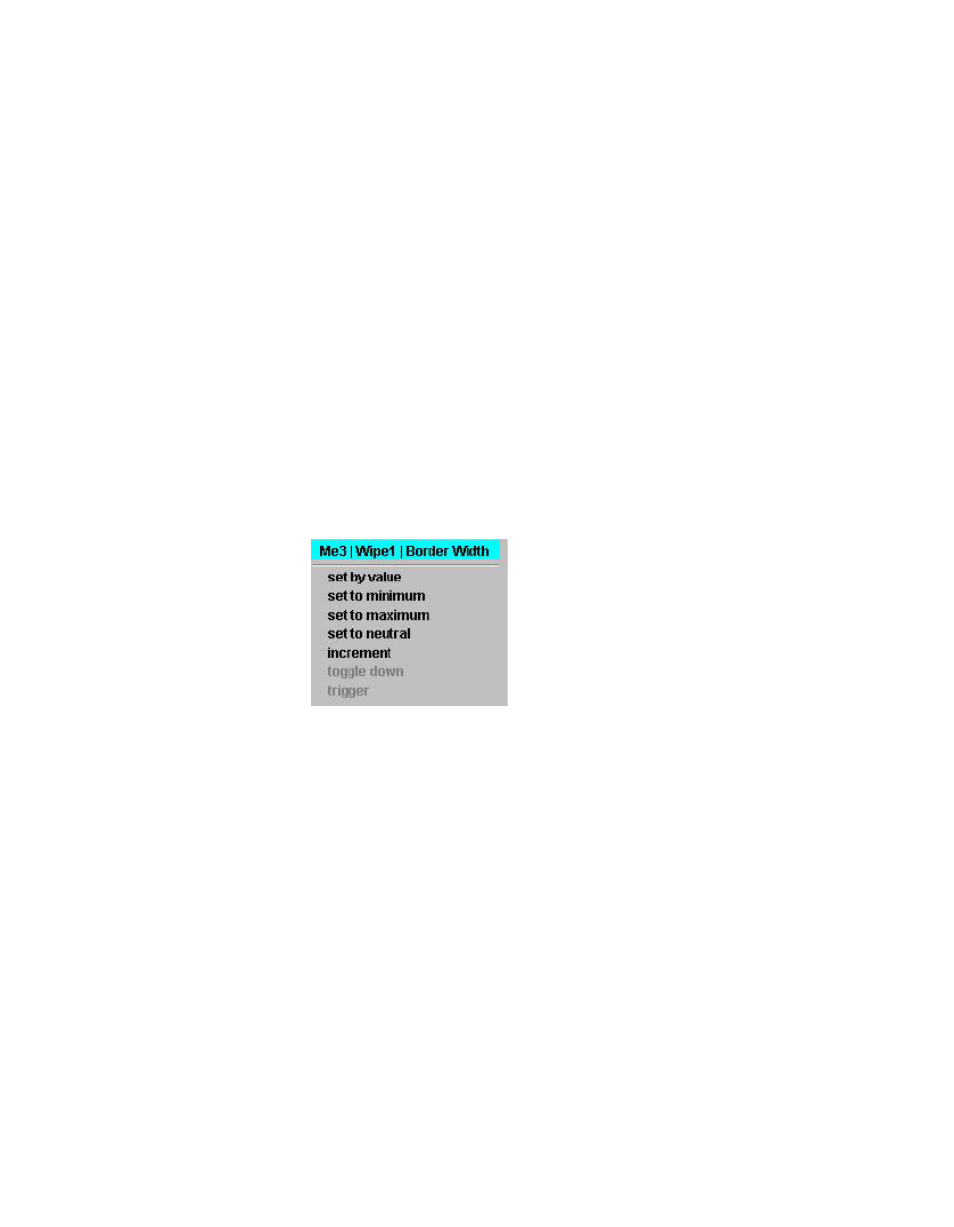

Figure 470. Macro Editor – Analog Value Example
An interesting analog macro might be similar to the following:
Toggle down When you execute this macro, the result depends on the
Actual state:
When Coupled > Speed
When Speed > Angle
When Angle > Angle some parameters allow wrap-
around. In this case Angle would change to Coupled.
On/Off parameters always allow wrap-around.
Set by value Sets border width to a fixed value. Next selection will
allow you numeric entry.
Set to minimum Sets the border width to minimum
Set to maximum Sets the border width to maximum
Set to neutral Some analog value like the border width have a symmet-
rical range (+/–). Set to neutral selects the middle posi-
tion.
Increment Allows you to create a macro which increases/decreases
the value by a certain amount any time you execute the
macro. Analog commands can only be created directly in
the command editor. Via the control panel you can not
learn analog macros.
