Grass Valley Kayak HD v.6.9.3 User Manual
Page 171
Kayak — User Manual
171
Config Menus
Note
Buttons are grayed out (inoperable) if a USB stick is not present in a sup-
ported control panel USB port. USB ports labeled SPARE are not supported.
Save
- Saves the current application.
Save As
- Saves the current application with a selectable file name.
Load
- Loads the application files from the USB flash drive into the Kayak
system.
Rename
-
Opens a dialog window to rename the selected application file.
Delete
- Deletes the selected application file.
Edit Devices -
If an application file was loaded which was stored in another
switcher system, the device names of this application must be customized.
To Customize Application Device Names:
1.
Press the
Edit Devices
button to display a list of the IP addresses of the
former devices (
).

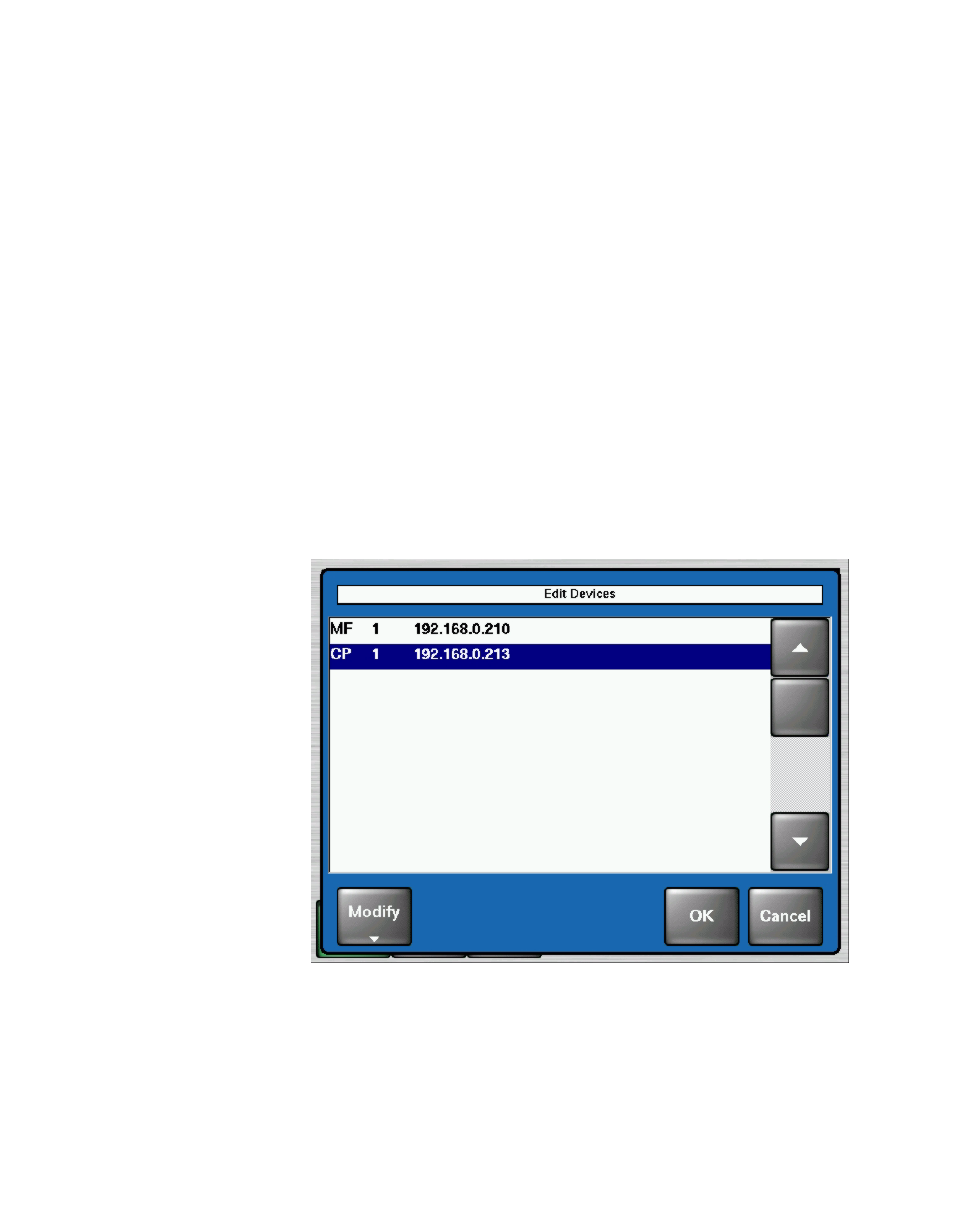

Figure 94. Config – Application Control – Edit Devices
2.
Select the control panel and press
Modify
to generate a list of connected
) in the network.
