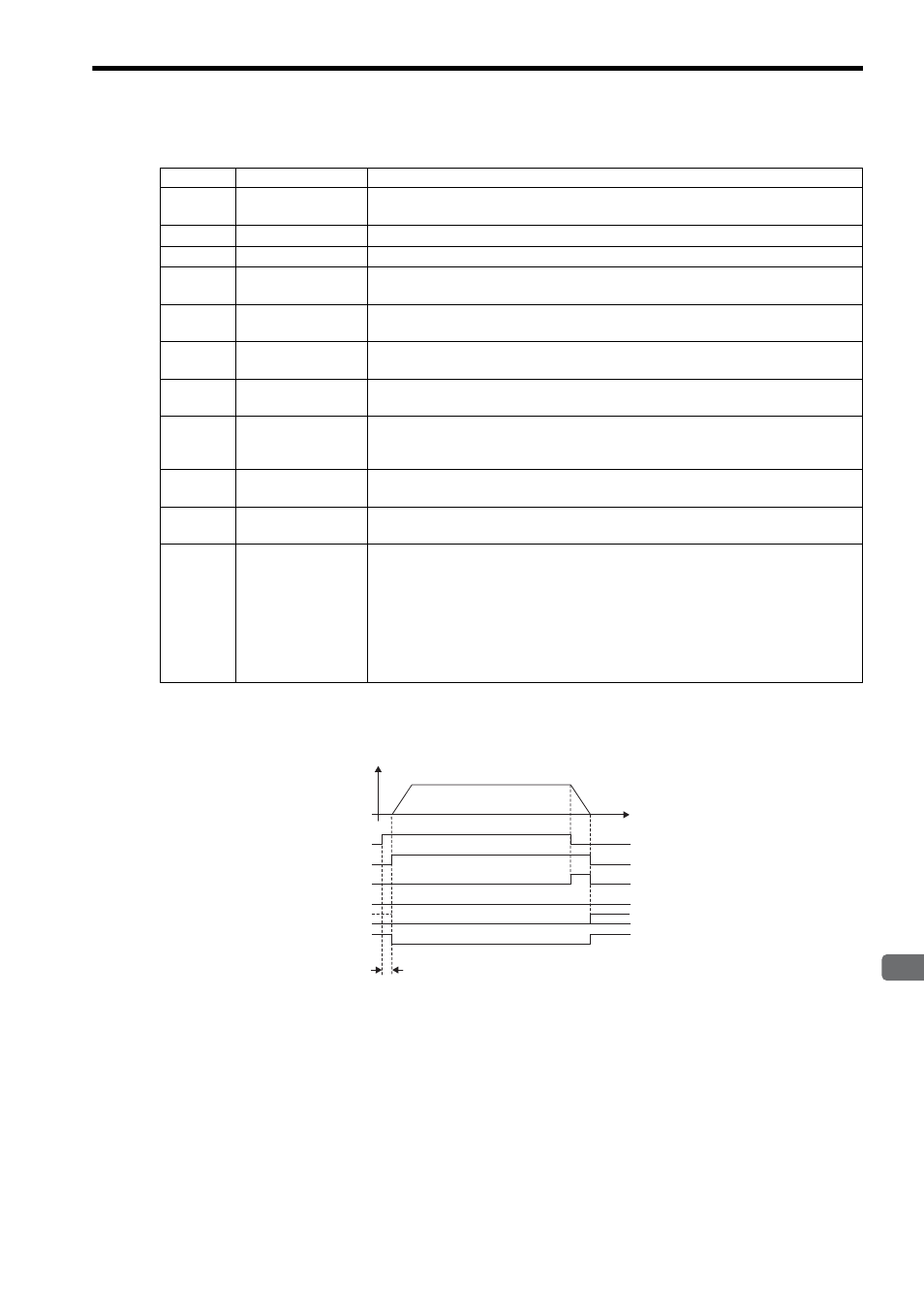

Page 205
7.2 Motion Command Details
7.2.6 JOG Operation (FEED)
7-65
7
Motion Commands
[ b ] Monitoring Parameters
( 5 ) Timing Charts
[ a ] Normal Execution
Parameter
Name
Monitor Contents
IW
00
Bit 1
Running
(At Servo ON)
Indicates the Servo ON status.
ON: Power supplied to Servomotor, OFF: Power not supplied to Servomotor
IL
02
Warning
Stores the most current warning.
IL
04
Alarm
Stores the most current alarm.
IW
08
Motion Command
Response Code
Indicates the motion command that is being executed.
The response code is 7 during FEED command execution.
IW
09
Bit 0
Command
Execution Flag
Turns ON when abort processing is being performed for FEED command.
Turns OFF when abort processing has been completed.
IW
09
Bit 1
Command Hold
Completed
Always OFF for FEED command.
IW
09
Bit 3
Command Error
Completed Status
Turns ON if an error occurs during FEED command execution. The axis will decelerate to a
stop if it is moving. Turns OFF when another command is executed.
IW
09
Bit 8
Command
Execution
Completed
Always OFF for FEED command.
IW
0C
Bit 0
Discharging
Completed
Turns ON when pulse distribution has been completed for the move command.
Turns OFF during execution of a move command.
IW
0C
Bit 1
Positioning
Completed
Turns ON when pulse distribution has been completed and the current position is within the
Width of Positioning Completion. OFF in all other cases.
IW
0C
Bit 3
NEAR Position
The operation depends on the setting of the NEAR Signal Output Width (setting parameter
OL
20).
OL
20 = 0: Turns ON when pulse distribution has been completed (DEN = ON). Oth-
erwise, it turns OFF.
OL
20
≠
0: Turns ON when
the absolute value of the difference between MPOS
(IL
12) and APOS (IL
16) is less than the NEAR Position Setting
even if pulse distribution has not been completed.
OFF in all other cases.
OW
08 = 7 (FEED)
IW
08 = 7 (FEED)
IW
09, bit 0 (BUSY)
IW
09, bit 8 (COMPLETE)
IW
09, bit 3 (FAIL)
IW
0C, bit 0 (DEN)
1 scan
