4.5.4.8 DiffServ Service Configuration
Use this page to define the DiffServ policy on each port.

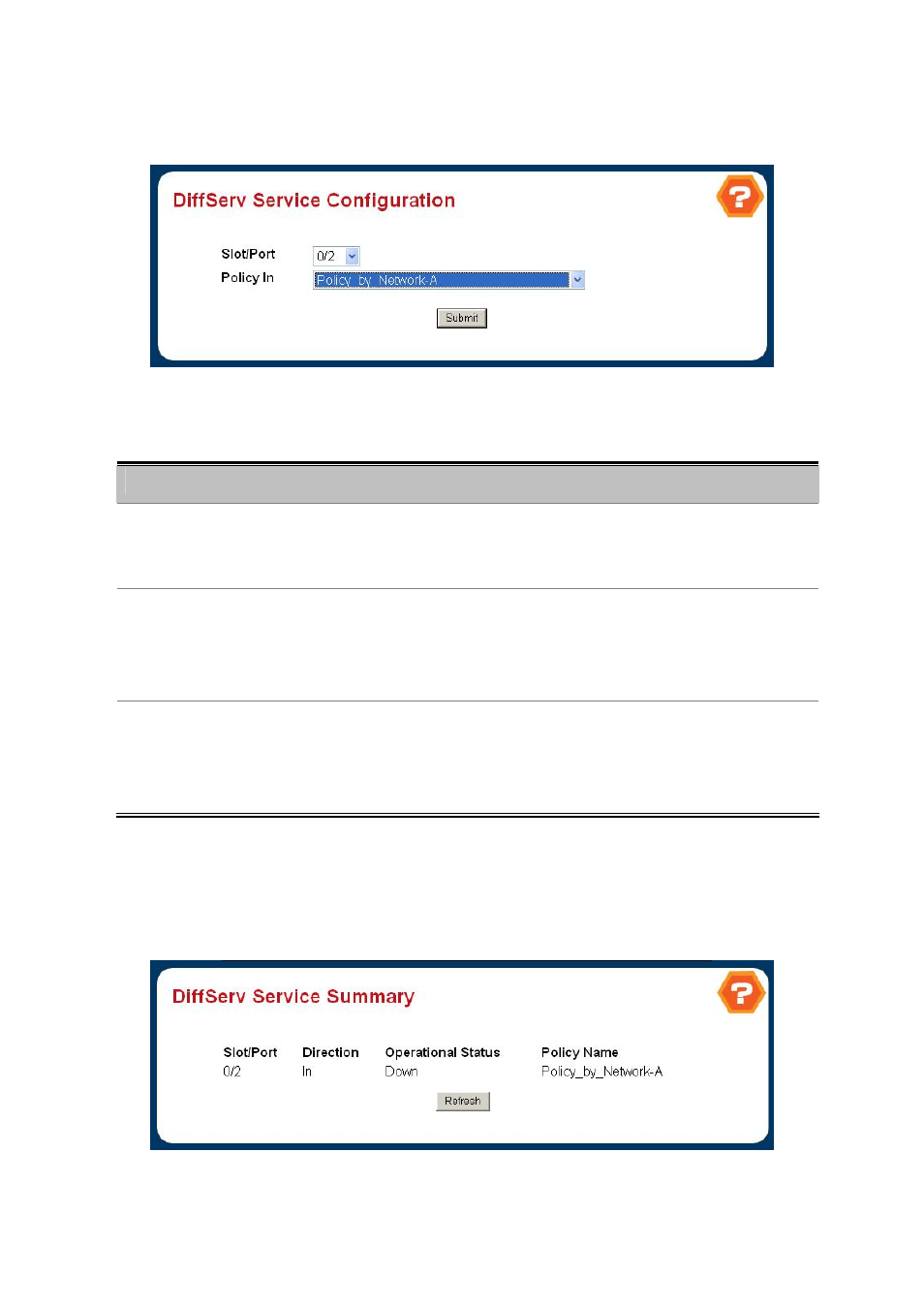

Figure 4-5-22 DiffServ Service Configuration
Configurable Data
Object Description
• Slot.Port - Select the Slot.Port that uniquely specifies an interface. This is a list of all valid
slot number and port number combinations in the system. For Read/Write users
where 'All' appears in the list, select it to specify all interfaces.
• Policy In - This lists all the policy names of type 'In' from which one can be selected. If
'none' is selected, this will detach the policy from the interface in this direction.
This field is not shown for Read/Write users where inbound service policy
attachment is not supported by the platform.
• Policy Out - This lists all the policy names of type 'Out' from which one can be selected. If
'none' is selected, this will detach the policy from the interface in this direction.
This field is not shown for Read/Write users where outbound service policy
attachment is not supported by the platform.
4.5.4.9 DiffServ Service Summary
This page shows the configuration summary of DiffServ service.
Figure 4-5-23 DiffServ Service Summary
