User’s Manual of WGS3-24000 / WGS3-24240

72

4.2.6.5 Double VLAN Tunneling

Use this page to configure the Doubble VLAN Tunneling.

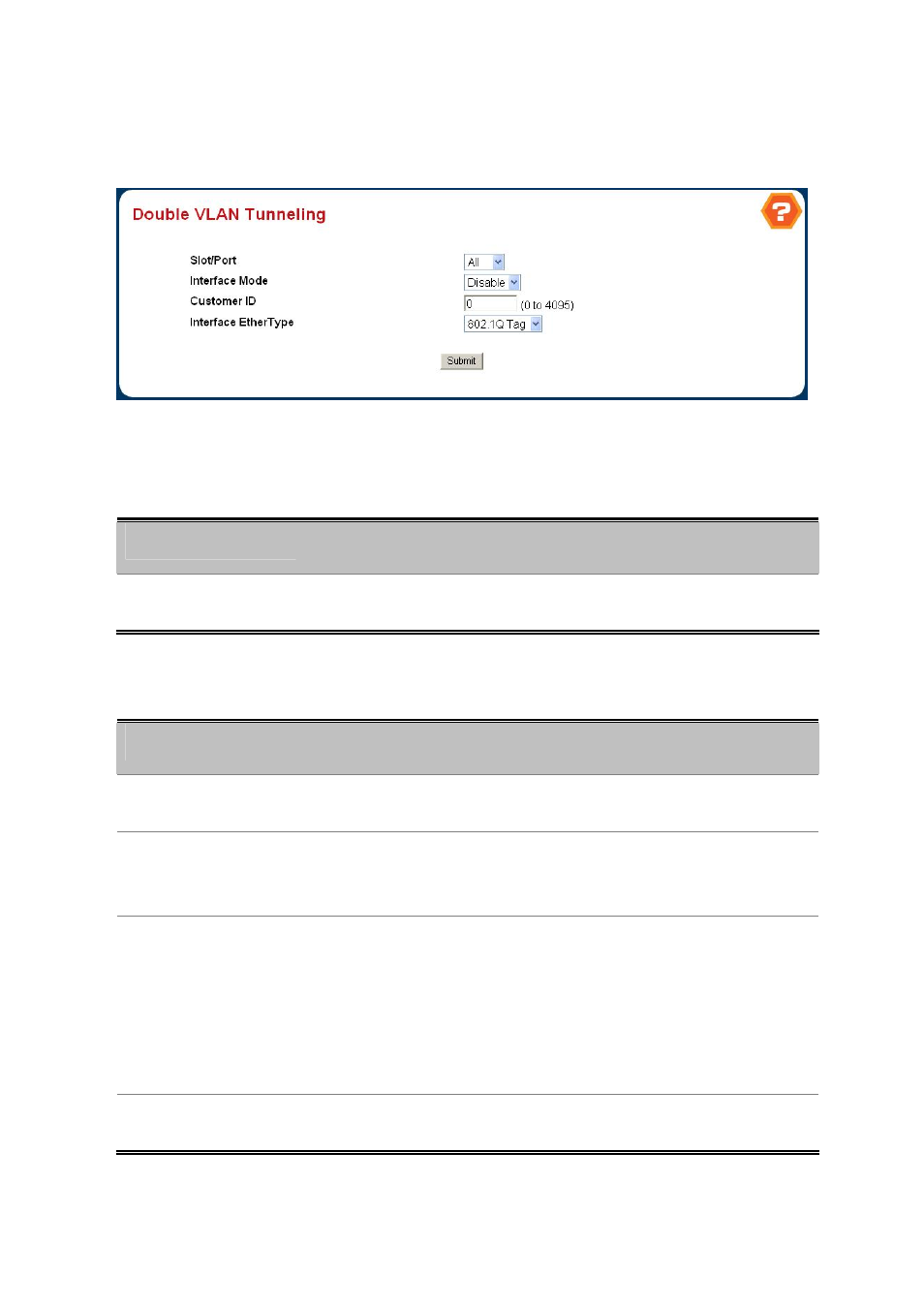

Figure 4-2-31 Double VLAN Tunneling

Selection Criteria

Object

Description

• Slot/Port

Select the physical interface for which you want to display or configure data.

Select 'All' to set the parameters for all ports to same values.

Configurable Data

Object

Description

• Mode

This specifies the administrative mode via which Double VLAN Tagging can be

enabled or disabled. The default value for this is Disabled.

• Customer ID

This is a 12 bit customer ID which will be used as the last 12 bits of the DVlan

tag. The valid range for a customer Id is (0 to 4095). The default customer Id is

0 .

• EtherType

The two-byte hex EtherType to be used as the first 16 bits of the DVlan tag.

802.1Q Tag - Commonly used tag representing 0x8100

vMAN Tag - Commonly used tag representing 0x88A8

Custom Tag - Configure the EtherType in any range from (0 to 65535)

• Submit button

Update the switch with the values on this screen. If you want the switch to retain

the new values across a power cycle, you must perform a save.
