4.7.2.5 IGMP Interface Membership Details Info

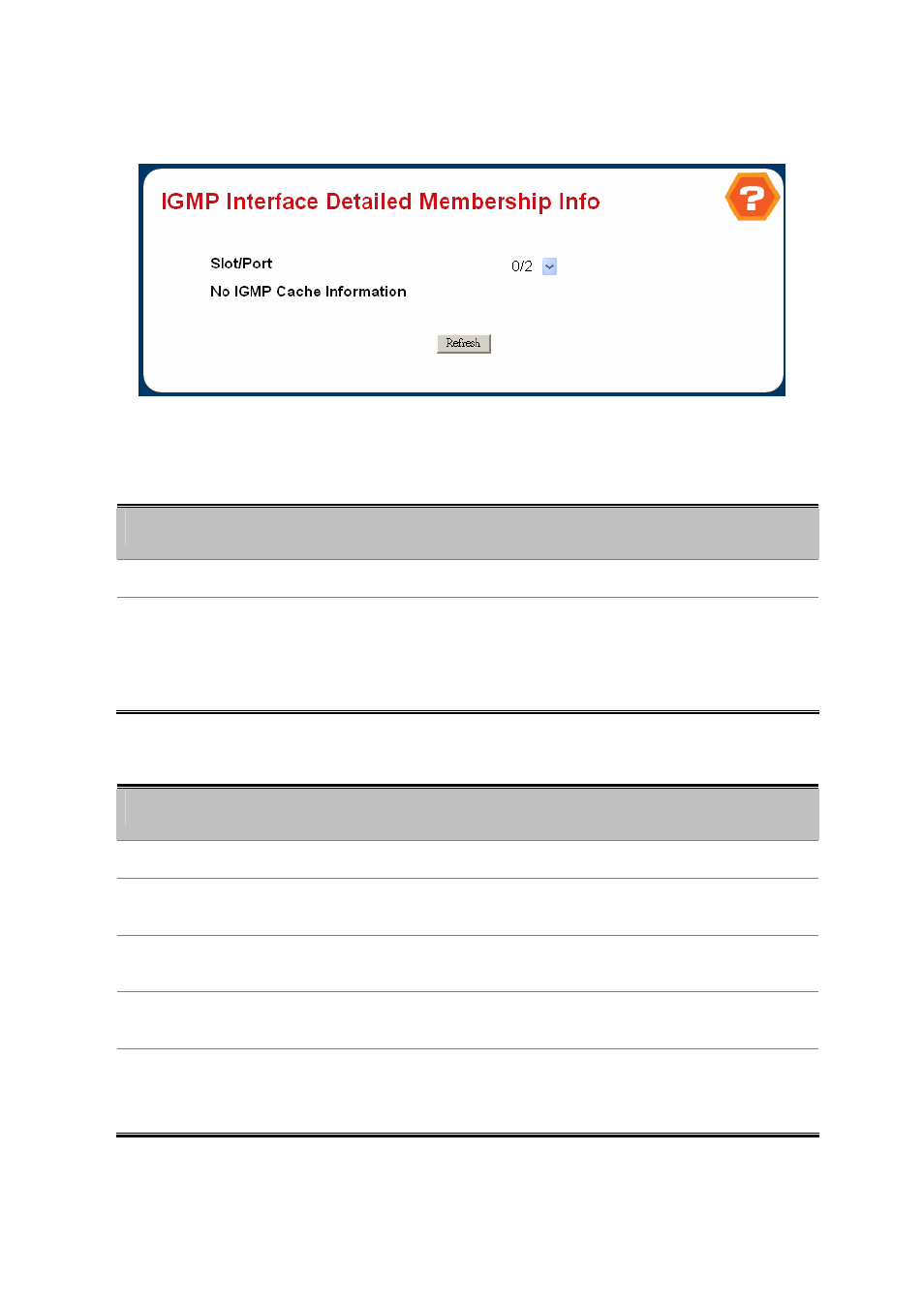

Figure 4-6-61 IGMP InterfaceDetail Membership Info
Selection Criteria
Object
Description
• Slot/Port
Select the Slot and port for which data is to be displayed. Slot 0 is the base unit.
• Multicast Group IP
Select the IP multicast group address for which data is to be displayed. If no
group membership reports have been received on the selected interface you will
not be able to make this selection, and none of the non-configurable data will be
displayed.
Non-Configurable Data
Object
Description
• Interface
This parameter shows the interface on which multicast packets are forwarded.
• Group Compatibility
Mode
This parameter shows group compatibility mode (v1, v2 and v3) for this group on
the specified interface.
• Source Filter Mode
The source filter mode (Include/Exclude/NA) for the specified group on this
interface.
• Source Hosts
This parameter shows source addresses which are members of this multicast
address.
• Expiry Time
This parameter shows expiry time interval against each source address which
are members of this multicast group. This is the amount of time after which the
specified source entry is aged out.
