Command Buttons
。 Create Stub Area - Configure the area as a stub area.
。 Delete Stub Area - Delete the stub area designation. The area will be returned to normal state.
。 Submit - Send the updated configuration to the switch. Configuration changes take effect immediately. These
changes will not be retained across a power cycle unless a save is performed.
To add a new Area ID, use the <Add> button. (The default 0.0.0.0 indicates the OSPF backbone.) To
modify or delete an existing Area ID, highlight the table entry with the cursor and select Enter.
4.6.4.4 OSPF Stub Area Summary

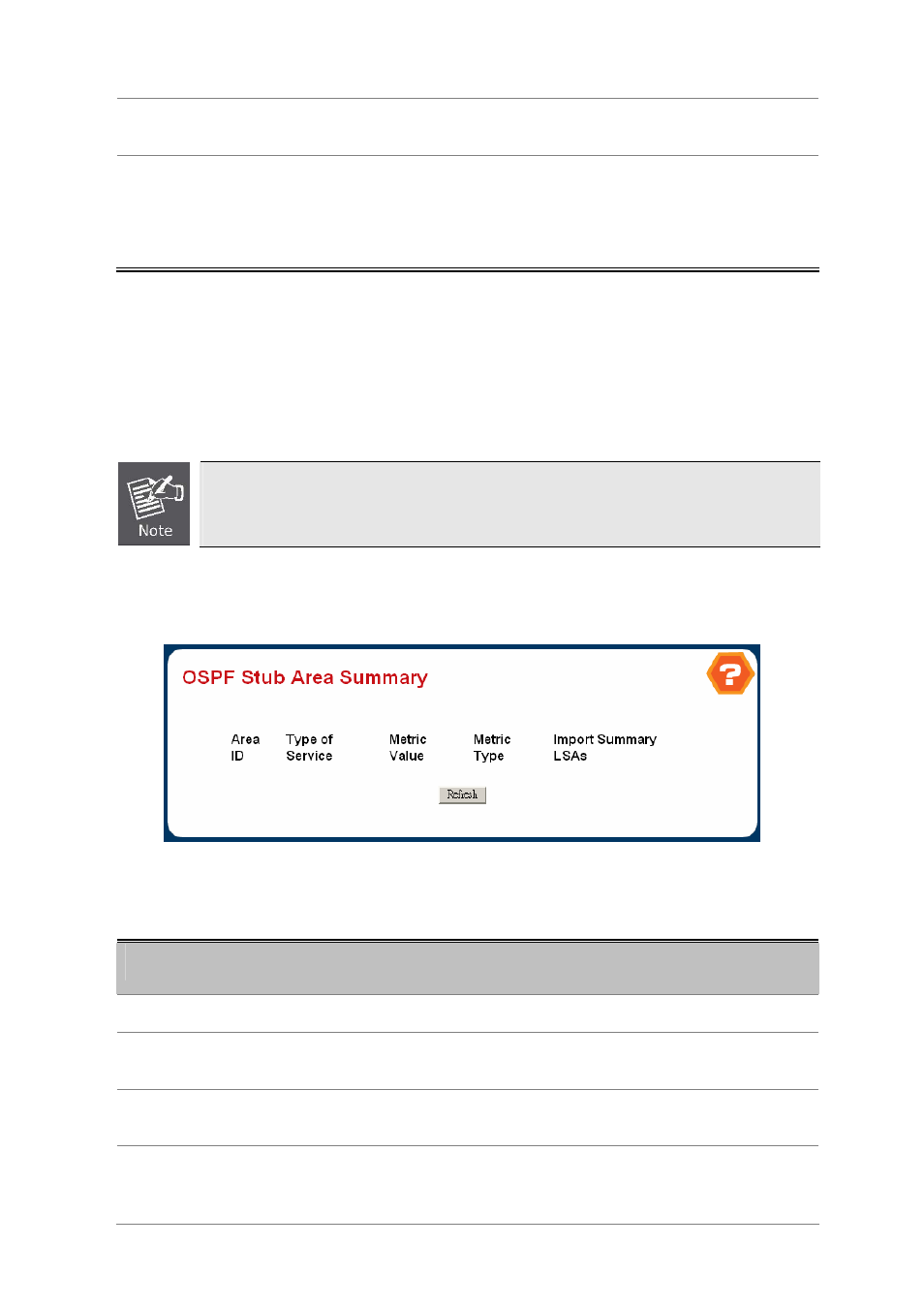

Figure 4-6-21 OSPF Stub Area Summary
Non-Configurable Data
Object Description
• Area ID The Area ID of the Stub area
• Type of Service The type of service associated with the stub metric. The switch supports Normal
only.
• Metric Value Set the metric value you want applied for the default route advertised into the
area. Valid values range from 1 to 16,777,215.
• Metric Type The type of metric for the stub area where valid types are:
• OSPF Metric - Regular OSPF metric
a change in a router's link state database, and to compare the link-state database
of two routers.
• Mode - This field tells you whether the area is or is not a stub area. If the area may be a
stub area, a 'Create Stub Area' button will be displayed. If you have configured
the area as a stub area a 'Delete Stub Area' button will be displayed. Otherwise
neither button will be displayed.
