Installation and Wiring
5.2.7 Installing the Motion Module cont.
— 5-48 —

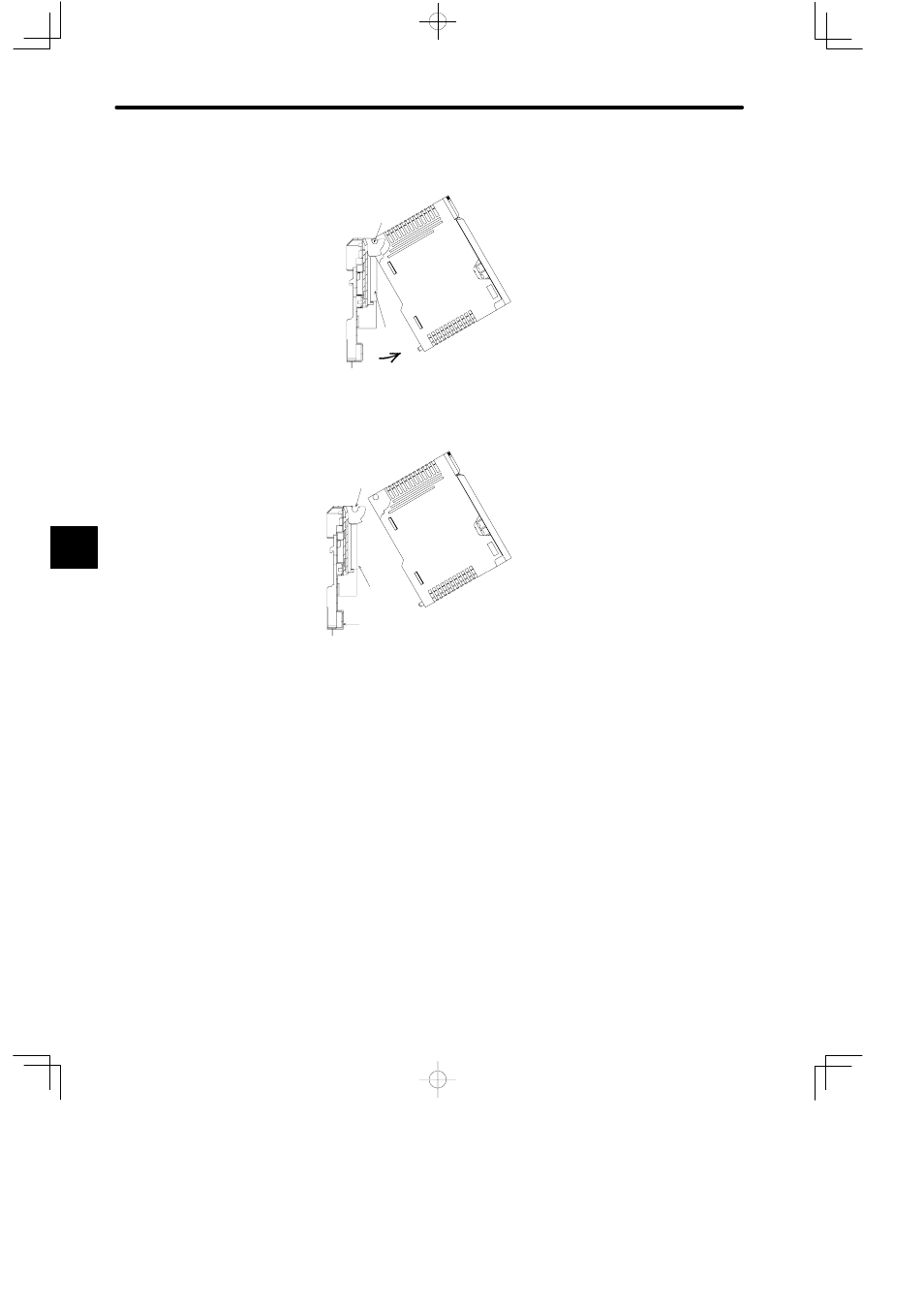

b) Rotate the Module until it disconnects from the Mounting Base.
Module hook
Module
connector
Rotate
MC15
c) Remove the Module from the Module hook on the Mounting Base.
Module hook
Module
connector
Mounting Base
MC15
5
