B.4
I/O Modules
— B-11 —

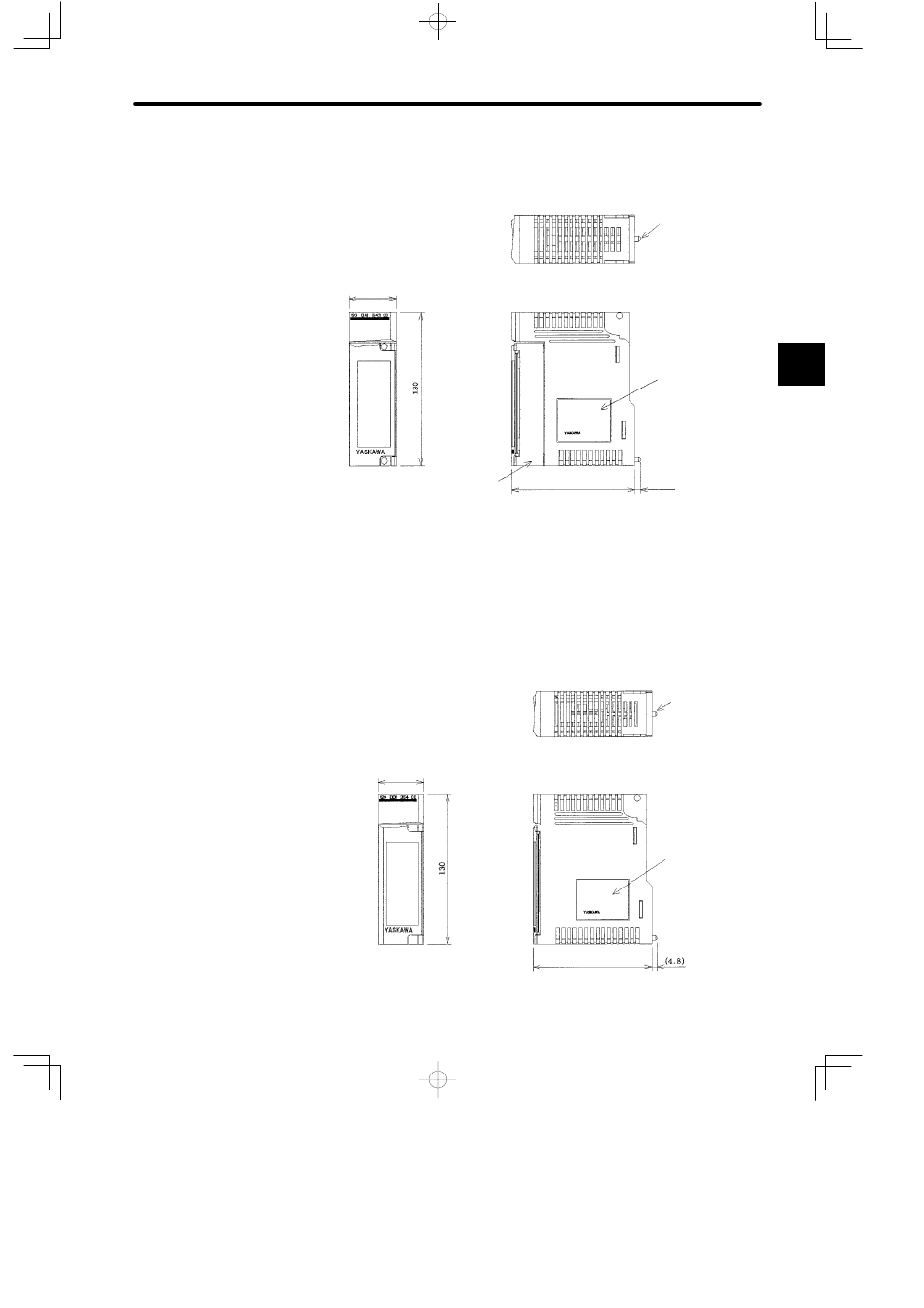

1) I/O Modules with Terminal Blocks
Module mounting
screw M4
Nameplate
Unit: mm
Terminal block
(See note.)
Note
Terminal block comes as accessory.
40.3
103.9
(4.8)
2) I/O Modules with Connectors
a) 32-point Digital I/O Modules
Module mounting
screw M4
Nameplate
Unit: mm
40.3
103.9
B
