186

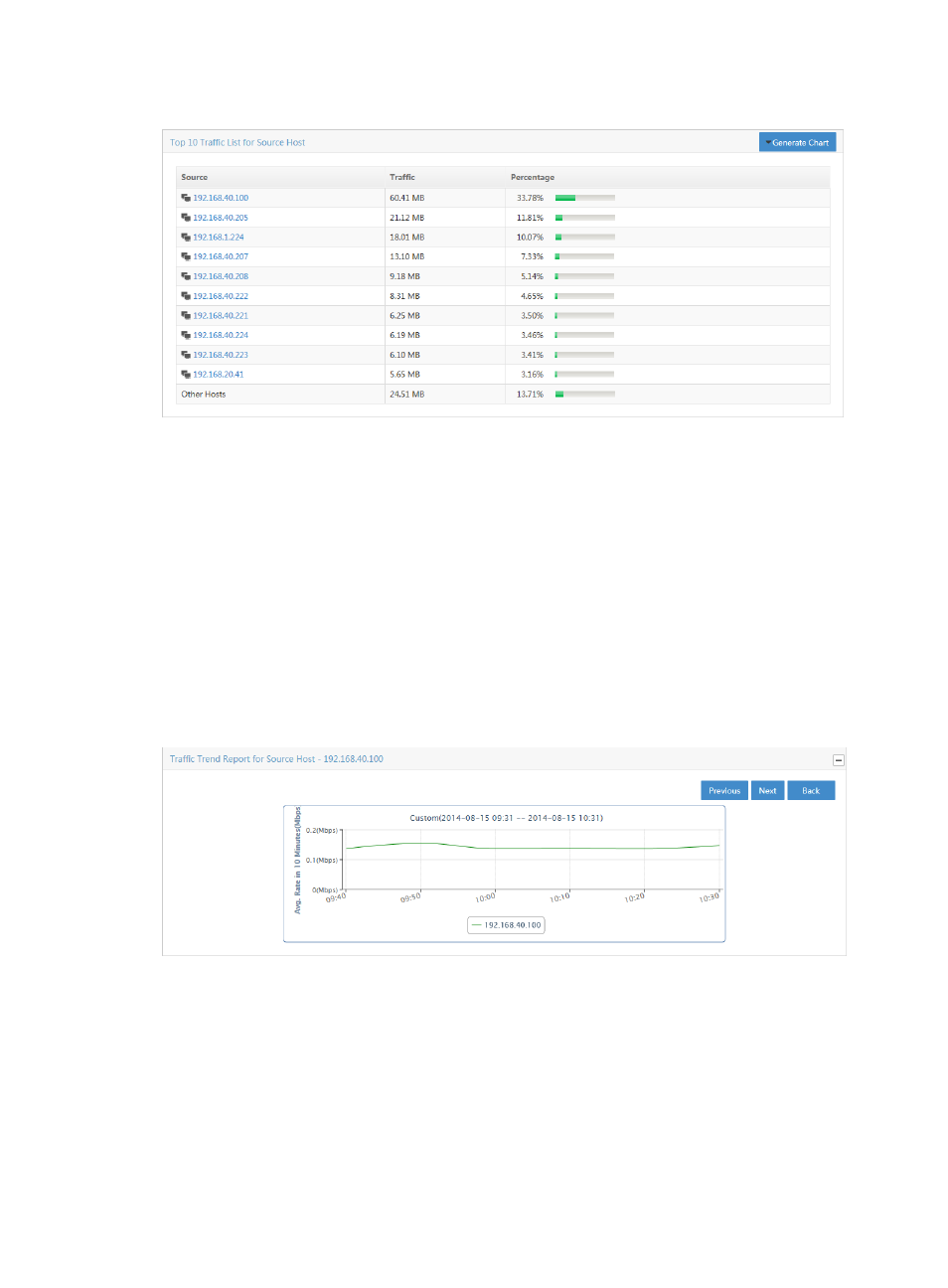

Figure 114 Source Report: TopN Traffic List for Source Host
Traffic trend report for source host
To view this report for a probe task, click the bar of the bar chart on the TopN Traffic Report for Source
Host report for the source host you want to view statistics for. Or, click the IP address for the source host
you want to view statistics for from the TopN Traffic List for Source Host list.
The Traffic Trend Report for Source Host line chart displays the average rate of traffic for the selected
source host. By default, the Traffic Trend Report for Source Host chart displays statistics for the previous
hour.
•
To view data for an earlier period, click the Previous button in the upper right corner of the chart.
•
To view data for a later period, click the Next button in the upper right corner of the chart.
•
To return to the main Source host report page, click Back.
Figure 115 Source Report: Traffic Trend Report by Source Host
Traffic details
To view this report for a probe task, click the bar of the bar chart on the TopN Traffic Report for Source
Host report for the source host you want to view statistics for. Or, click the IP address for the source host
you want to view statistics for from the TopN Traffic List for Source Host list.
The Traffic Details for a source host table provides two lists. The TopN Destination Hosts Communicating
with the Source Host displays the TopN destination host IP addresses, the volume of traffic sent and
received between the source and destination hosts, and the percentage of all traffic observed for the
source and destination hosts.
