To view this report for a VPN traffic analysis task, click the slice of the pie chart on the TopN Traffic Report
for Destination Host report for the destination host you want to view statistics for. Or, click the IP address
for the destination host you want to view statistics for from the TopN Traffic List for Destination Host list.
The Traffic Trend Report for Destination Host line chart provides you with the average rate of traffic for the
selected destination host. By default, the Traffic Trend Report for Destination Host chart displays statistics
for the previous hour.
•
To view data for an earlier period, click the Previous button located in the upper right corner of the
chart.
•
To view data for a later period, click the Next button located in the upper right corner of the chart.
•
Click Back to return to the main Destination host report page.

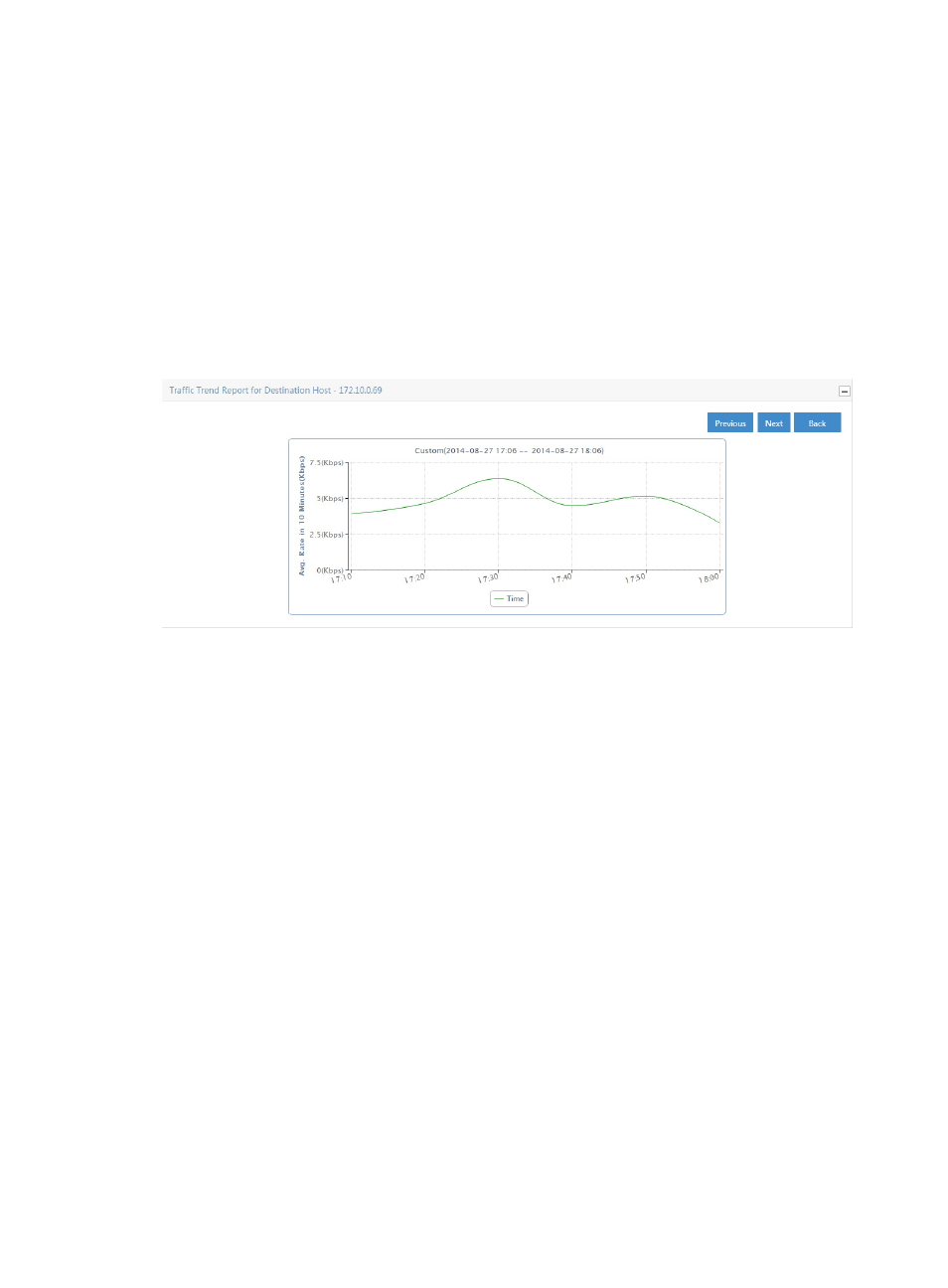

Figure 211 Destination Report: Traffic Trend Report for Destination Host
Traffic details
To view this report for a VPN traffic analysis task, click the slice of the pie chart on the TopN Traffic Report
for Destination Host report for the destination host you want to view statistics for. Or, click the IP address
for the destination host you want to view statistics for from the TopN Traffic List for Destination Host list.
The Traffic Details for a destination host table provides you with two lists. The TopN Source Hosts
Communicating with the Destination Host displays the TopN source host IP addresses, the volume of
traffic sent and received between this destination host and the sources, and the percentage of all traffic
observed for this destination host and the source hosts.
The TopN Applications Communicating with the Destination Host displays the TopN applications, the
volume of traffic attributed to the associated application for the selected destination host, and the
percentage of the associated application traffic observed for this destination host.
