4.1 Using the Digital Operator
- 3

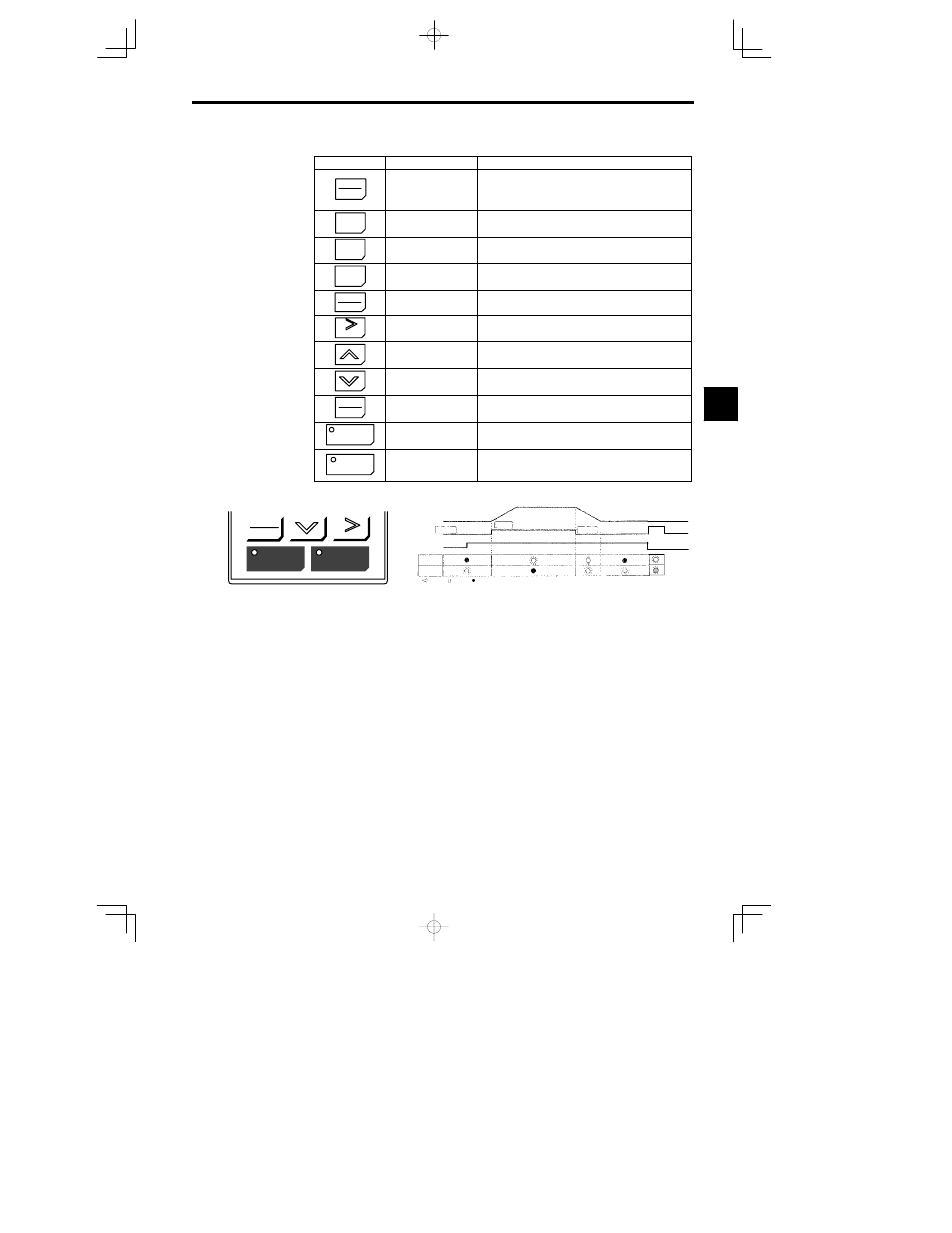

Table
4.1 Key Functions
Key Name Function
LOCAL
REMOTE
LOCAL/REMOTE Key
Switches between operation (LOCAL) via the Digital Operator
and control circuit terminal (REMOTE) operation.
This Key can be enabled or disabled by setting a user constant
(o2-01).
MENU MENU Key Displays menus.
ESC ESC Key
Returns to the status before the DATA/ENTER Key was
pressed.
JOG JOG Key
Enables jog operation when the VS-626MC5 is being operated
from the Digital Operator.
FWD
REV
FWD/REV Key
Selects the rotation direction of the motor when the
VS-626MC5 is being operated from the Digital Operator.
RESET
RESET Key
Sets the number of digits for user constant settings.
Also acts as the reset Key when a fault has occurred.
Increment Key
Selects menu items, groups, functions, and user constant
names, and increments set values.
Decrement Key
Selects menu items, groups, functions, and user constant
names, and decrements set values.
DAT
A ENTER
DATA/ENTER Key
Enters menu items, functions, constants, and set values after
they are set.
RUN RUN Key
Starts the VS-626MC5 operation when the VS-626MC5 is in
operation with the Digital Operator.
STOP STOP Key
Stops VS-626MC5 operation.
This Key can be enabled or disabled by setting a user constant
(o2-02) when operating from the control circuit terminal.
Note Except in diagrams, Keys are referred to using the Key names listed in the above table.
Inverter output frequency
STOP
RUN
STOP
Frequency setting
RUN
ST OP
Lit Blinking Not lit
FWD
REV RESET
RUN STOP
The RUN and STOP indicators light and blink to indicate operating status.
Fig
4.2 RUN and STOP Indicators
