Altera Stratix GX Transceiver - Manual (Page 149)

Altera Corporation 5–37
January 2005 Stratix GX Transceiver User Guide
XAUI Mode

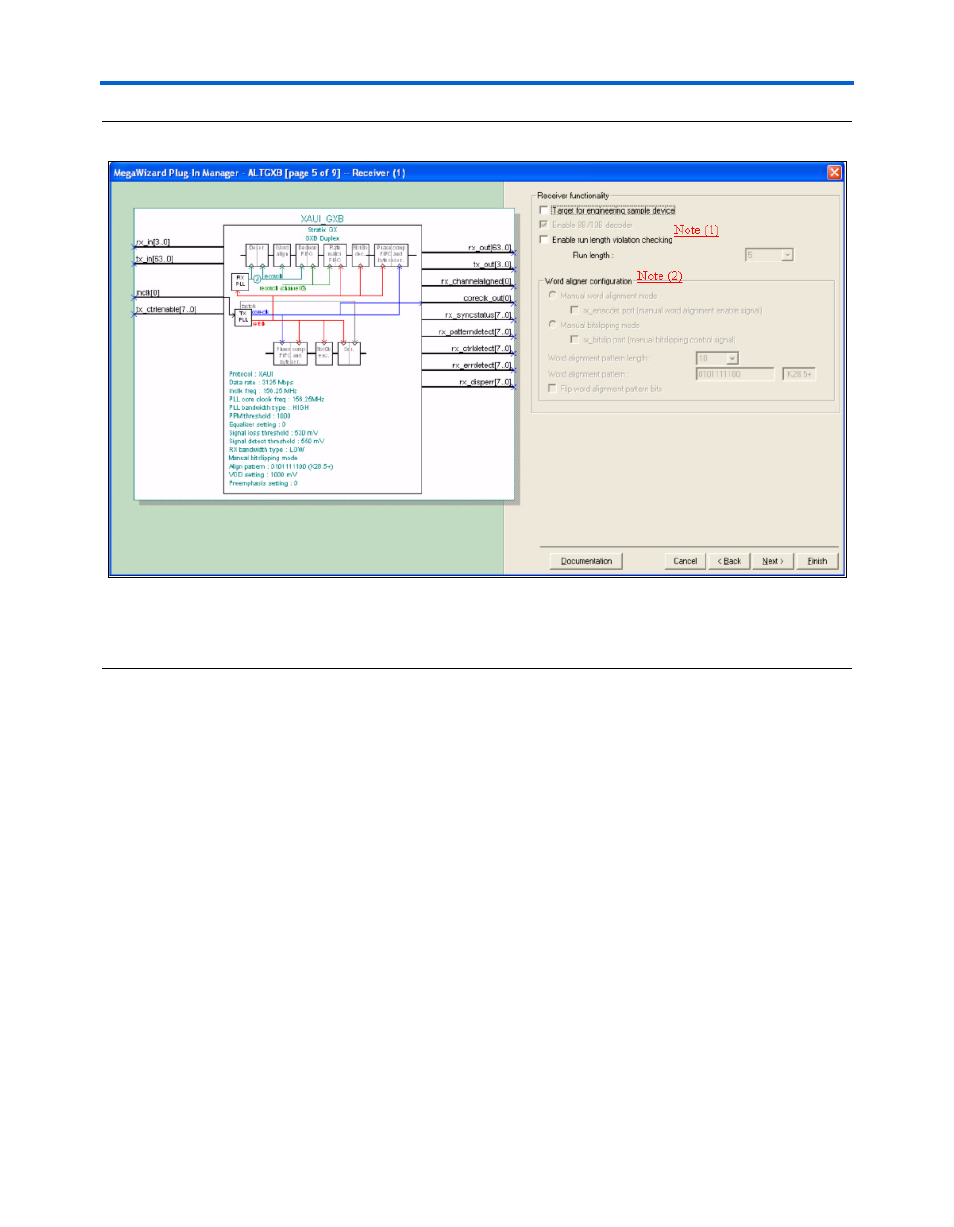

Figure 5–30. MegaWizard Plug-In Manager - ALTGXB (Page 5 of 9) - Receiver (1) Notes (1) , (2)
Notes to Figure 5–30 :
(1) For more information, refer to the Stratix GX Analog Description chapter.
(2) Word aligner in XAUI mode is always set as a 10-bit K28.5 pattern. Both positive and negative disparities are
checked.
