6.4 Option Installation
This section provides instructions on installing the options in Table 6.2 .
u Prior to Installing the Option
Prior to installing the option, wire the drive, make necessary connections to the drive terminals, and verify that the drive
functions normally without the option installed.
Table 6.2 below lists the options that can be connected to the drive and the drive ports for connecting those options.
Table 6.2 Option Installation
Option Port/Connector
SI-W3, SI-EM3, SI-EN3 CN5-A

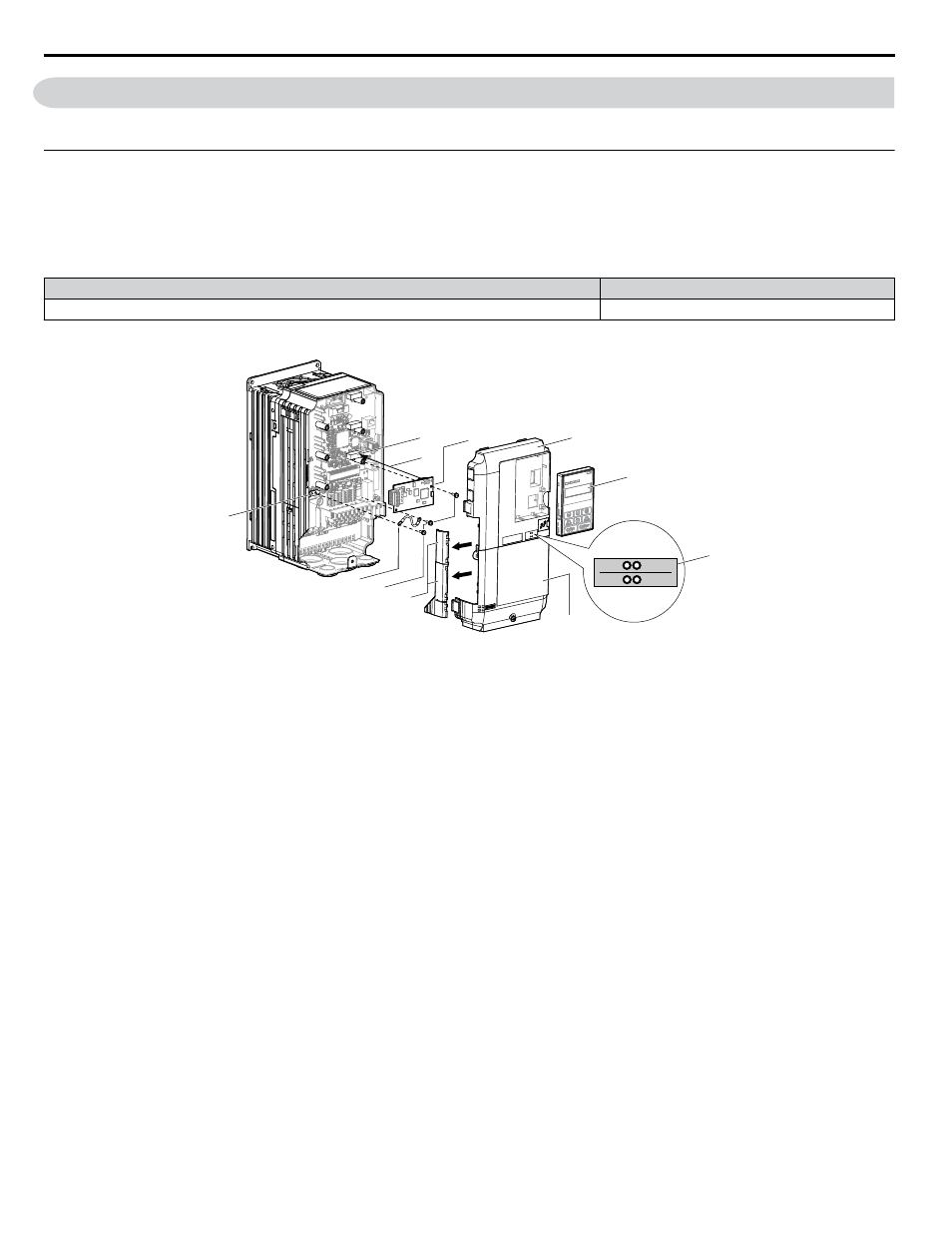

Figure 6.2 shows an exploded view of the drive with the option and related components for reference.
I K A
J
D
F
G
C
E
B
H
NS MS NS MS
A – Drive front cover
B – HOA keypad
C – LED label (for communication
options)
D – Drive terminal cover
E – Removable tabs for wire routing
F – Included screws
G – Ground wire
H – Drive grounding terminal (FE)
I – Connector CN5-A
J – Insertion point for CN5 connector
K – Option
Figure 6.2 Drive Components with Option
