Models 5A0125 to 5A0242 (IP00/Open Type Enclosure)
n
Removing the Terminal Cover
1.
Loosen the screws on the terminal cover, then pull down on the cover.
Note:
The terminal cover and the number of terminal cover screws differ depending on the drive model.
CAUTION! Do not completely remove the cover screws, just loosen them. If the cover screws are removed completely, the terminal
cover may fall off causing an injury.

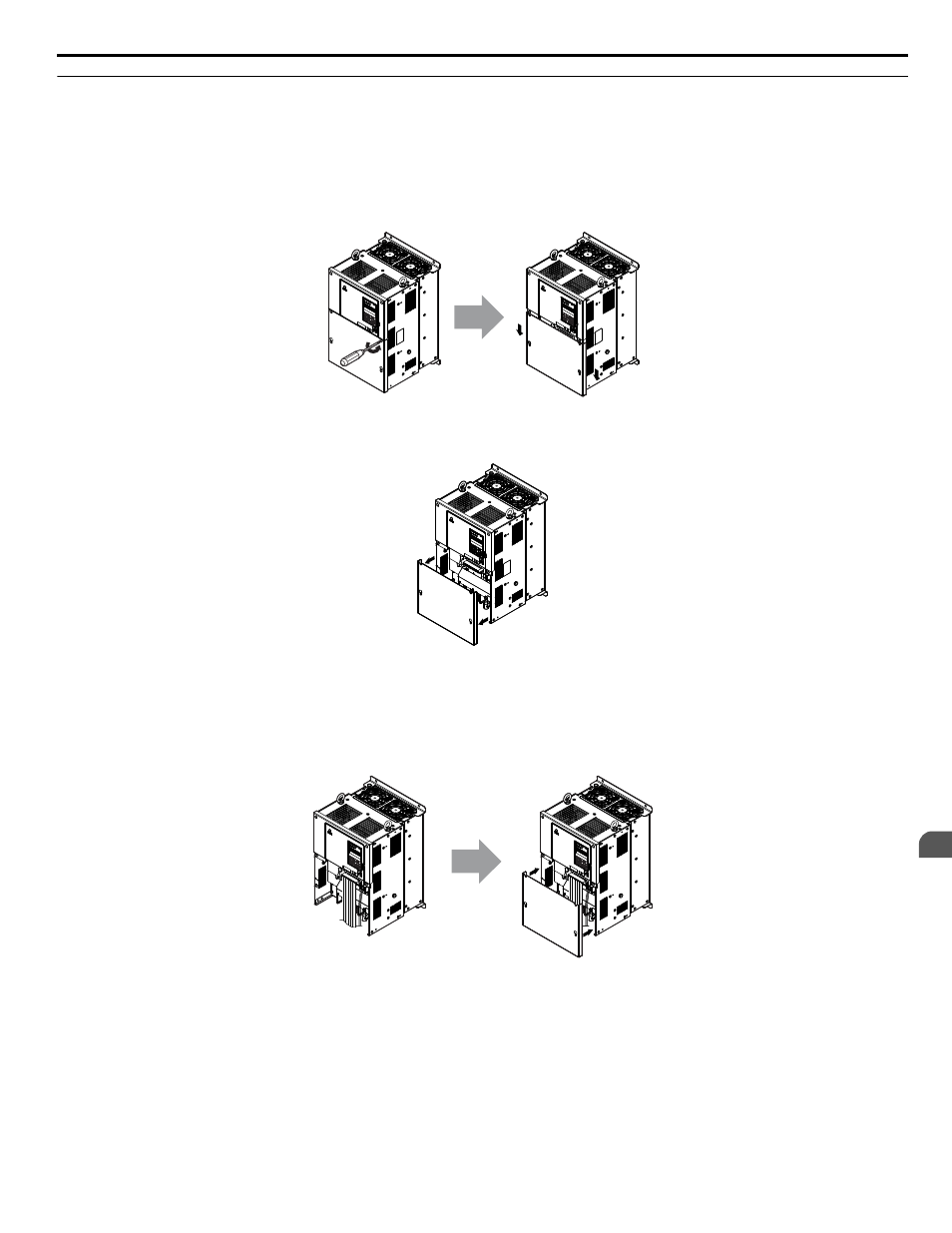

Figure 3.10 Removing the Terminal Cover on an IP00/Open Type Enclosure Drive
2.
Pull forward on the terminal cover to free it from the drive.
Figure 3.11 Removing the Terminal Cover on an IP00/Open Type Enclosure Drive
n
Reattaching the Terminal Cover
After wiring the terminal board and other devices, double-check connections and reattach the terminal cover.
the Main Circuit Terminal on page 84
Wiring the Control Circuit Terminal
for details on wiring.
<1>
Figure 3.12 Reattaching the Terminal Cover on an IP00/Open Type Enclosure Drive
<1> Connect the ground wiring first, then the main circuit wiring, and finally the control circuit wiring.
