3.12 External Interlock

Systems that may be affected during drive fault conditions should be interlocked with the drive fault output and ready signal.

u

Drive Ready

When the “Drive ready” signal has been set to one of the multi-function contact outputs, that output will close whenever the

drive is ready to accept a Run command or is already running. Under the following conditions the Drive ready signal will

switch off and remain off, even if a Run command is entered:
• when the power supply is shut off
• during a fault
• when there is problem with the control power supply
• when a parameter setting error makes the drive unable to run even if a Run command has been entered
• when a fault such as overvoltage or undervoltage is triggered as soon as the Run command is entered
• when the drive is in the Programming mode and will not accept a Run command even when entered

n

Interlock Circuit Example

Two drives running a single application might interlock with the controller using the Drive Ready and Fault output signals as

shown below.

Figure 3.28

illustrates how the application would not be able to run if either drive experiences a fault or is

unable to supply a Drive Ready signal.

Terminal

Output Signal

Parameter Setting

MA, MB, MC

Fault

M1-M2

Drive Ready

H2-01 = 06

Operation

Circuit

Drive Ready

Drive Ready

Stop

Ready1

Ready2

Fault1

Run

Fault2

Run

S1
SN

MB

MA

M2

M1

MC

Fault 1

Ready 1

SA

SA

Max

250 Vac

Relay 1

Relay 2

Relay 1

Relay 2

Controller

Fault
Output

Drive Ready

Drive 1

Run

S1
SN

MB

MA

M2

M1

MC

Fault 2

Ready 2

SA

SA

Max

250 Vac

Relay 1

Relay 2

Relay 1

Relay 2

Controller

Fault
Output

Drive Ready

Drive 2

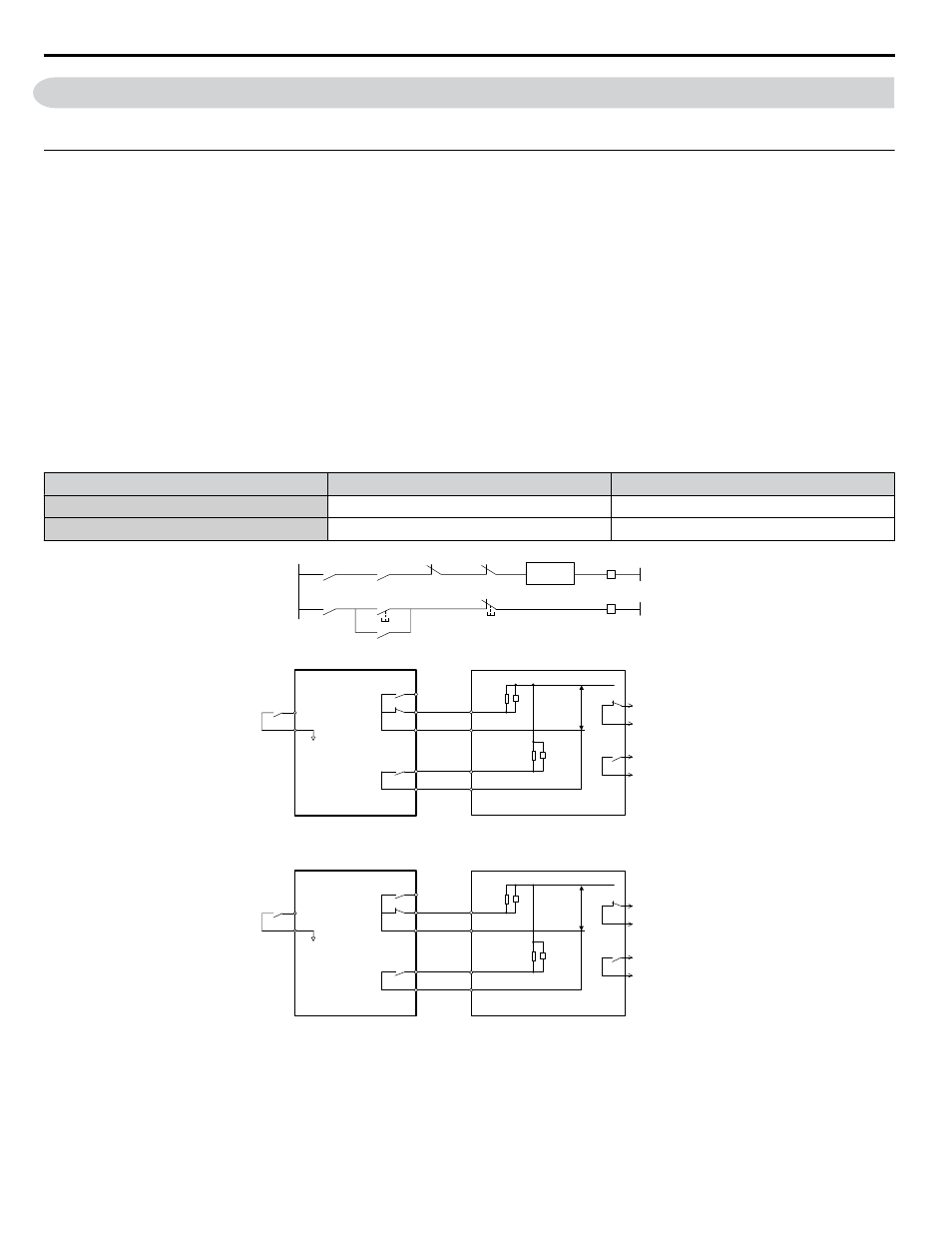

Figure 3.28 Interlock Circuit Example

3.12 External Interlock

96
