u Precautionary Notes on External Heatsink (IP00/Open Type Enclosure)
When using an external heatsink, UL compliance requires covering exposed capacitors in the main circuit to prevent injury
to surrounding personnel.
The portion of the external heatsink that projects out can be protected with the enclosure or with the appropriate capacitor
cover after completing drive installation. Use Table D.7 to match drive models with available capacitor covers. Order capacitor
covers from a Yaskawa representative or directly from the Yaskawa sales department.
Table D.7 Capacitor Cover
Drive Model Code Number Figure
5A0041
100-061-274
Figure D.6
5A0052
5A0062
100-061-275 5A0077
5A0099
5A0125
100-061-277
5A0145
5A0192
100-061-278
5A0242
A
B
C
D
E
A – Drive (outside panel)
B – Drive (inside panel)
C – Opening to capacitors D – Installation screws
E – Capacitor cover

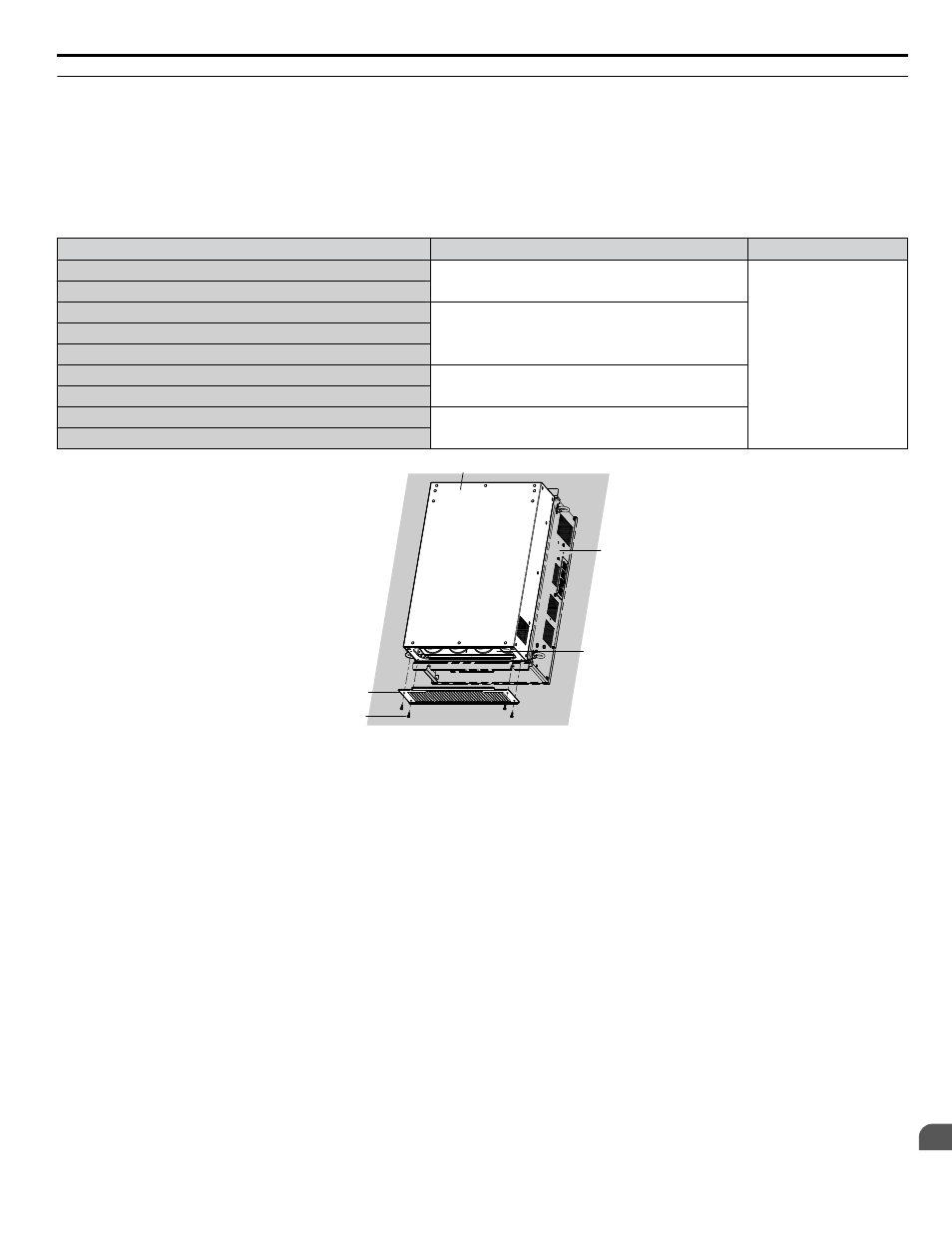

Figure D.6 Capacitor Cover
D.3 UL and CSA Standards
