This can be corrected by using the Edit button, if the settings for the
selected device are known. However, the Update button will pull the
correct settings for this field, as well as for the other Home State fields.
12. In the Home State box, click on the Update button, then click Yes to con-
firm the settings (figure 3-63).

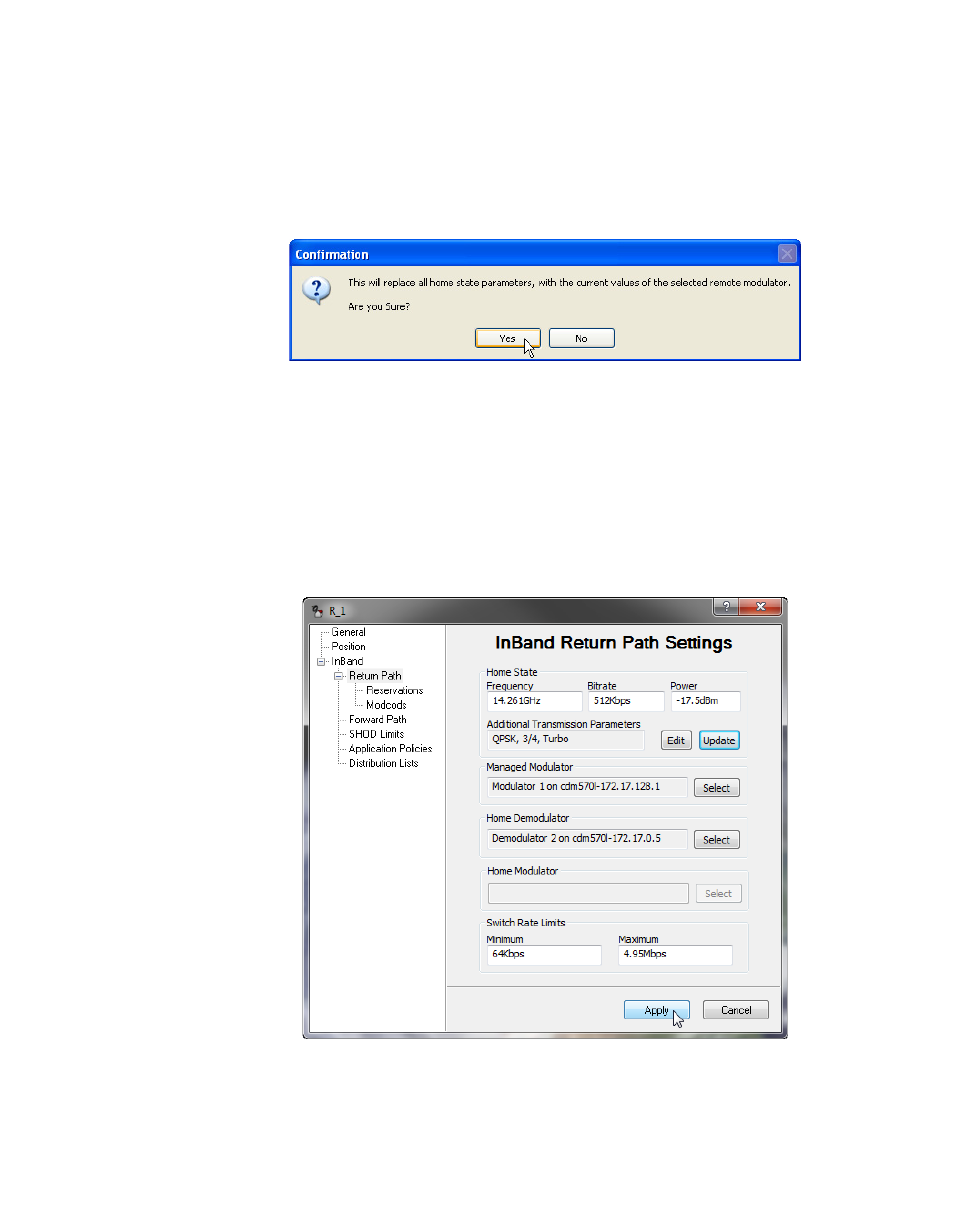

Figure 3-63 Confirmation, Home State Changes
The Frequency, Bitrate, Power, and Additional Transmission Parameters
fields should populate with the values pulled from the chosen remote
modulator, as shown in figure 3-64.
If the fields do not populate, communications with the Remote are impaired
and will have to be restored before the site can be successfully InBanded for
the return path.
Figure 3-64 InBand Return Path Home State, Populated
