Using Parameter Editor MN/22156, rev 12
5-12 VMS User Guide
Network Settings
Clicking on the Network menu item displays the Network Settings dialog
shown in figure 5-9.

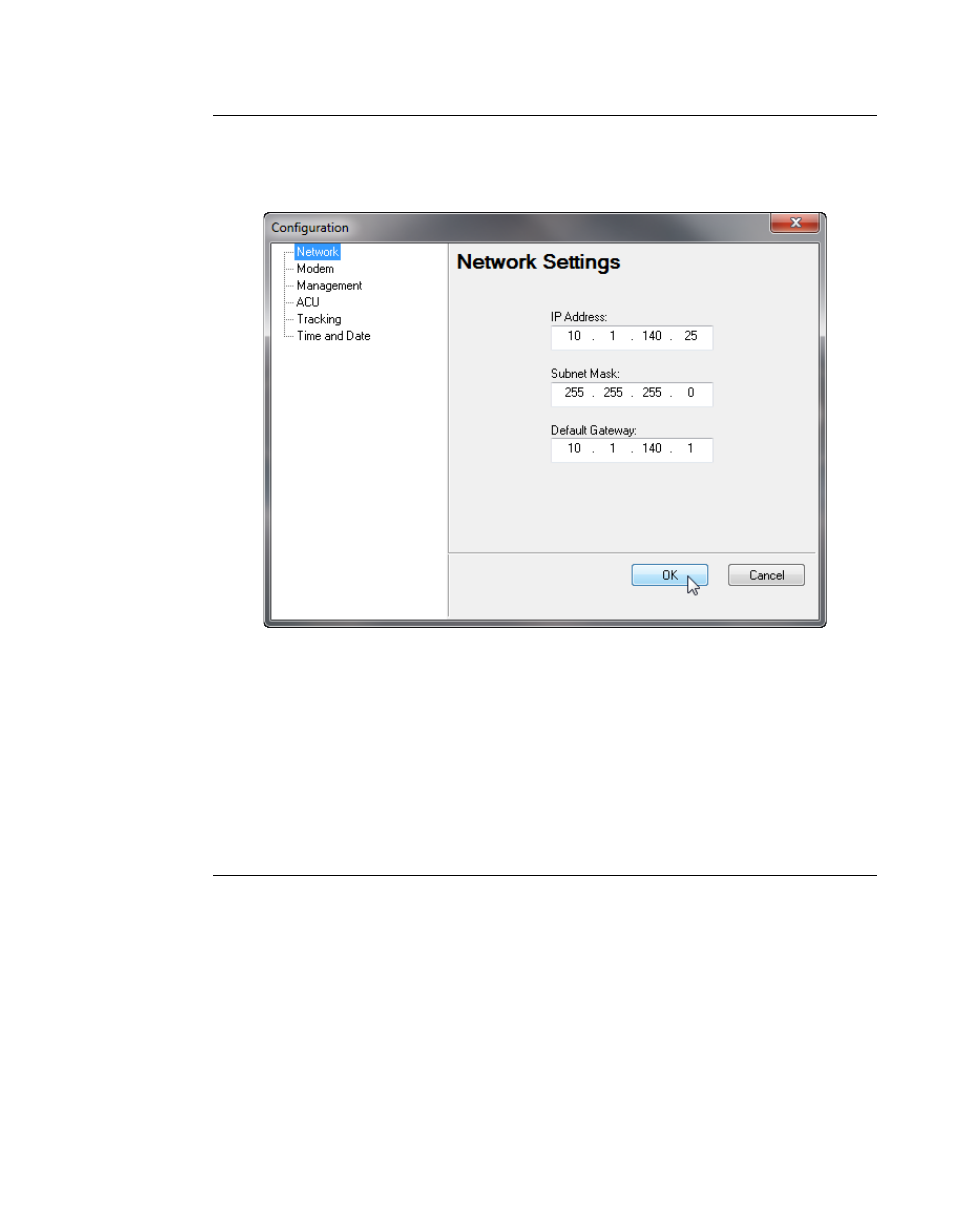

Figure 5-9 Network Settings dialog, ROSS
The network configuration is the ROSS system LAN interface properties setting
the IP address, subnet mask, and local default gateway. After applying the
network protocol stack will reinitialize with the new IP settings without reboot-
ing.
Modem Settings
Clicking on the Modem menu item displays the Modem Settings dialog shown
in figure 5-10.
This sets the IP address that ROSS will use to communicate with the locally
attached Comtech modem. The modem IP address information is obtainable
from the front panel of the modem; see specific user guide for menu operation.
After selecting OK, the ROSS will initialize polling with inquires of modem
SOTM mode—enabled/disabled—and set SAT ID number.
