• The satellite has mapped the transponder from one antenna to a
transponder on another antenna.
• The satellite serves as an RF inter-band relay which is also referred to as
cross strapping
In the example shown in figure A-1 the C-band and Ku-band transponders 20
through 24 are cross banded.

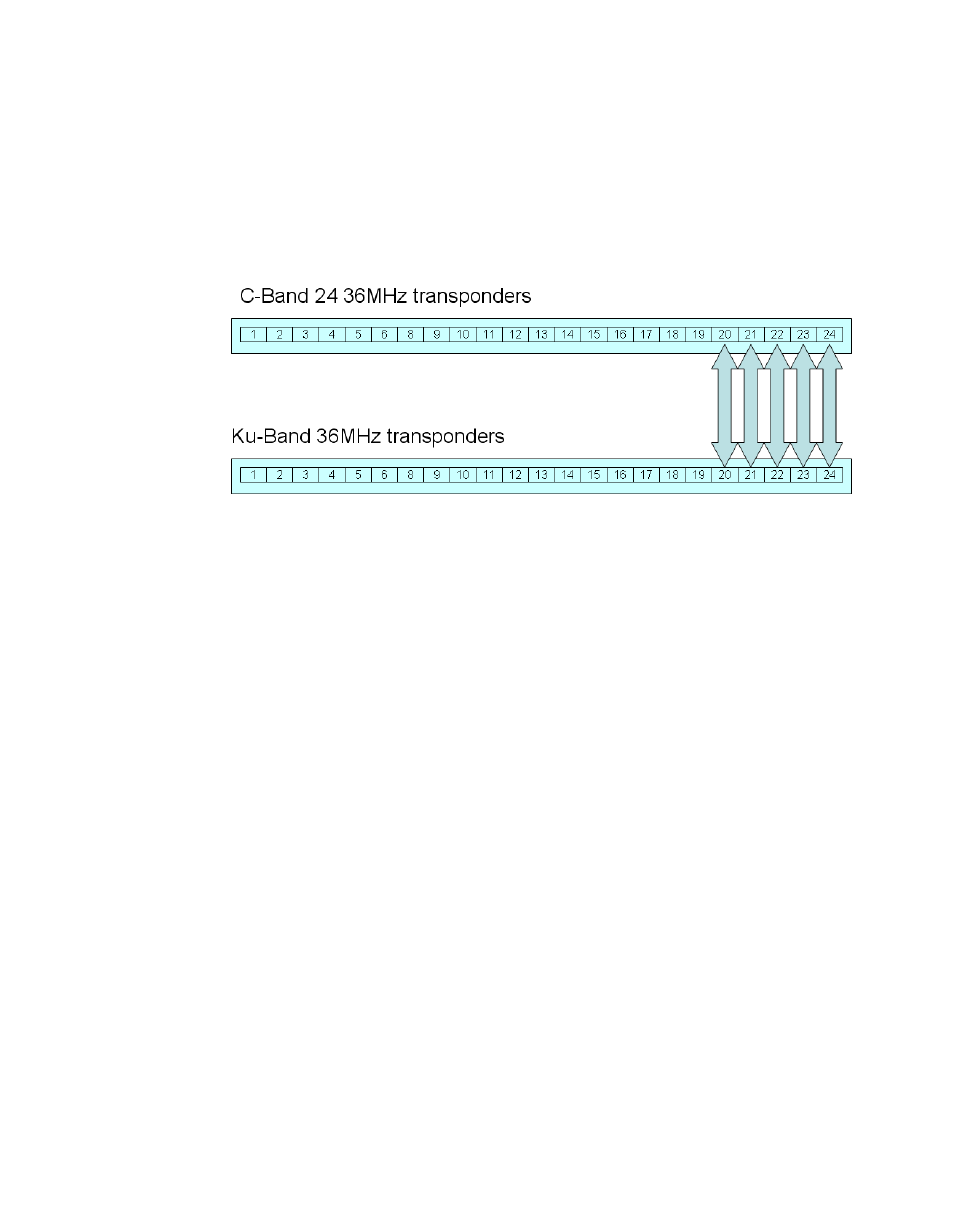

Figure A-1 Cross Banded Transponders, C-band & Ku-band
