Refer to the
chapter for more information on logic schemes. Custom logic settings allow
you to tailor the BE1-11m functionality to match the needs of your operation's practices and power system
requirements.
Metering Functions
Metering is provided for the following parameters:
•
Primary and secondary voltages (P-P, P-N, V1, V2, 3V0, Vx, Vx 3
rd
harmonic)
•
Frequency (phase and auxiliary)
•
Primary and secondary currents (phase, ground, I1, I2, 3I0)
•
Power (real, reactive, apparent)
•
Power factor
•
Phase differential (Iop, Ir)
•
Energy (total watthours and total varhours)
•
Motor (thermal capacity, voltage unbalance, effective motor load)
For details on metering functions, refer to the
chapter.
Model and Style Number Description
BE1-11m electrical characteristics and operational features are defined by a combination of letters and
numbers that make up the style number. The style number describes the options included in a specific
device and appears on labels located on the front panel and inside the case. Upon receipt of a BE1-11m,
be sure to check the style number against the requisition and the packing list to ensure that they agree.

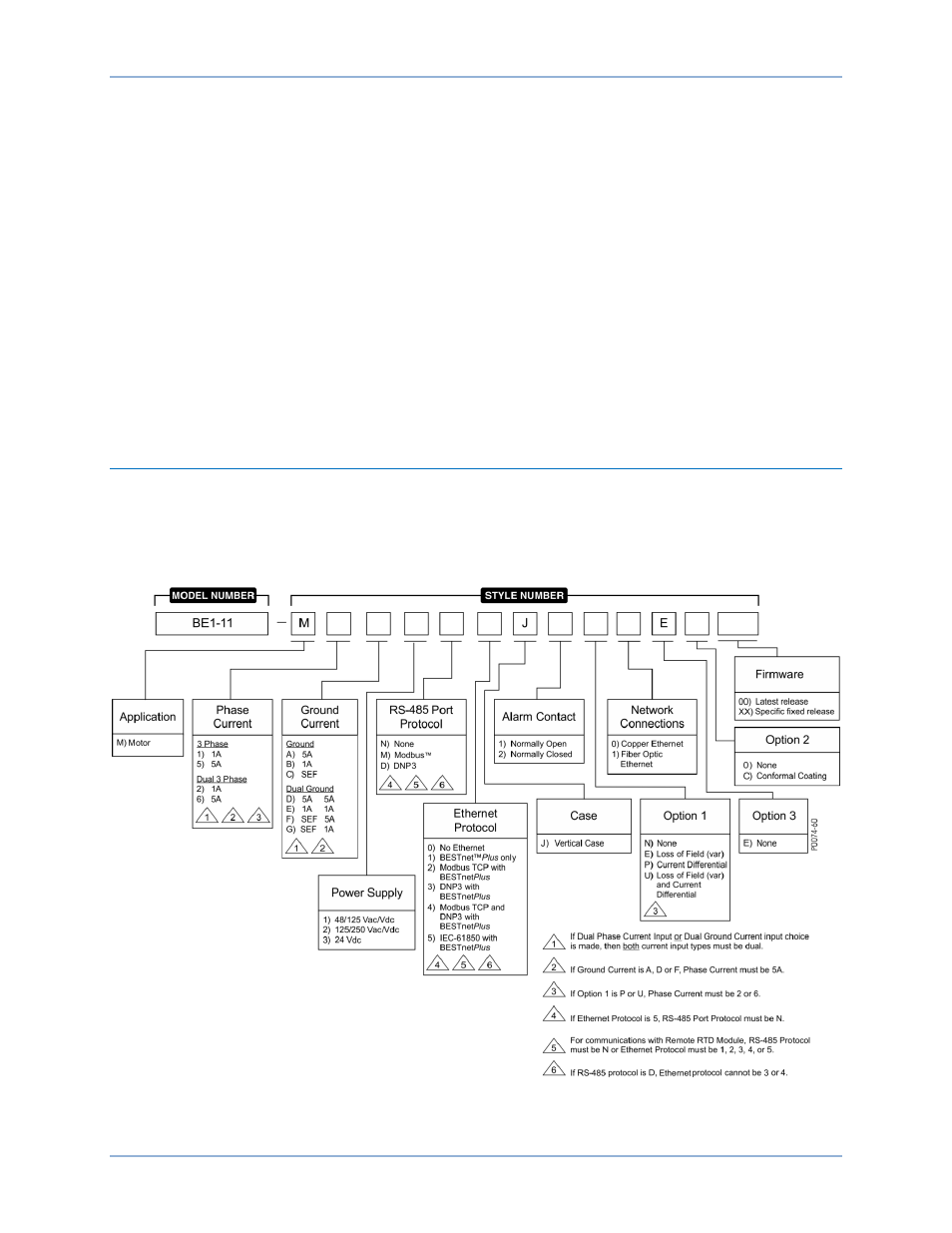

The model number and style number are shown in Figure 1.
Figure 1. Style Chart
