N equation 68 – Basler Electric BE1-11m User Manual
Page 565
9424200996 Rev L
553
πππππ’π =
1
20
β ππππ ππ‘ππππππ (5%) β π΄πππππππππ‘π ππππ‘πππ‘πππ (4)
=
1
2
β 5% β 4 = 10%
Equation 68. 50-4 Pickup

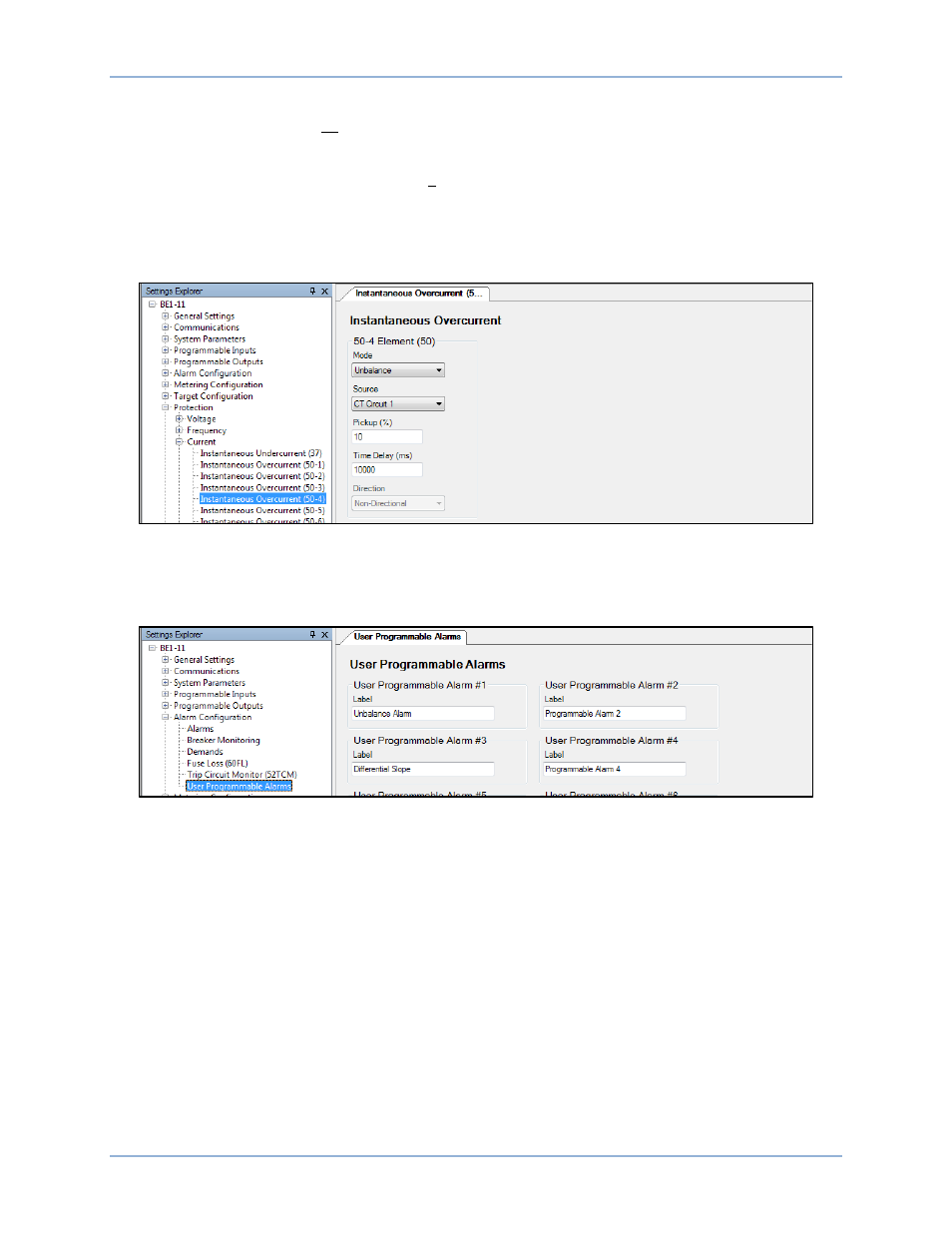

Select Unbalance alarm mode, set the Pickup setting to 10%, and set the Time Delay to 10 seconds as
shown in Figure 386.
Figure 386. Protection, Current, Instantaneous Overcurrent (50-4) Screen
User Programmable Alarm 1 is used for reporting a minor alarm, which indicates the unbalance alarm.
Use the Settings Explorer to navigate to Alarm Configuration, User Programmable Alarms, and name
User Programmable Alarm 1 to βUnbalance Alarmβ as shown in Figure 387.
Figure 387. User Programmable Alarms Screen
Navigate to Alarm Configuration, Alarms, and enable Programmable Alarm 1 as a non-latching minor
alarm as shown in Figure 388. This alarm will show in the sequence of events and alarm reporting as
βUnbalance Alarmβ.
Figure 387 and Figure 388 also show the Differential Alarm programmed at the end of the Current
Differential (87) subsection.
BE1-11m
Settings Calculation Examples
