1.2 Nomenclature
1 - 9

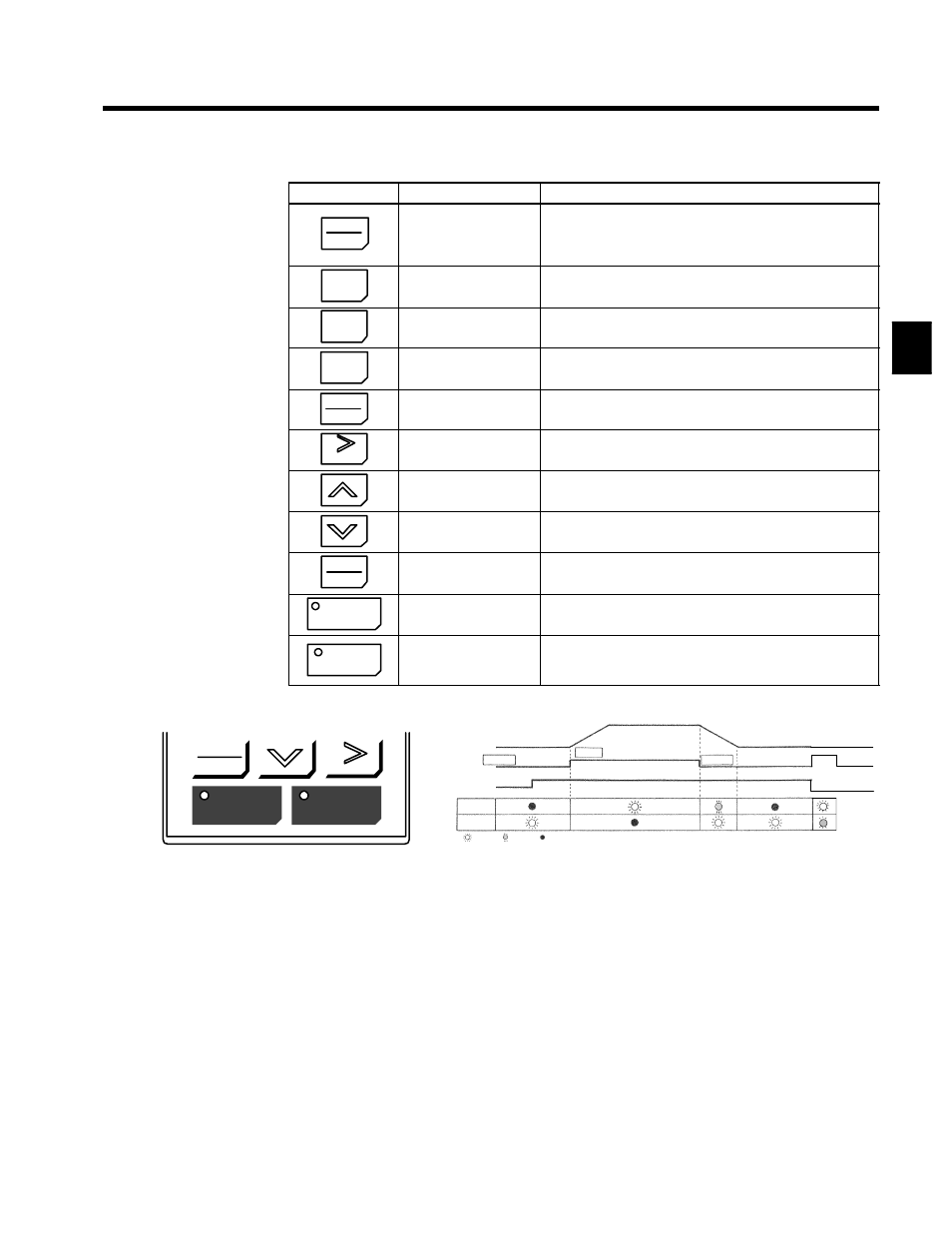

Table 1.3 Key Functions
Key Name Function
LOCAL
REMOTE
LOCAL/REMOTE Key
Switches between (LOCAL) operation via the Digital Operator
and control circuit terminal (REMOTE) operation.
This key can be enabled or disabled by setting a user constant
(o2-01).
MENU MENU Key Displays menus.
ESC
ESC Key Returns to the status before the DATA/ENTER Key was pressed.
JOG JOG Key
Enables jog operation when the VS-616G5 is being operated
from the Digital Operator.
FWD
REV
FWD/REV Key
Selects the rotation direction of the motor when the VS-616G5 is
being operated from the Digital Operator.
RESET
RESET Key
Sets the number of digits for user constant settings.
Also acts as the reset key when a fault has occurred.
Increment Key
Selects menu items, groups, functions, and user constant names,
and increments set values.
Decrement Key
Selects menu items, groups, functions, and user constant names,
and decrements set values.
DATA
ENTER
DATA/ENTER Key
Enters menu items, functions, constants, and set values after they
are set.
RUN RUN Key
Starts the VS-616G5 operation when the VS-616G5 is in opera-
tion with the Digital Operator.
STOP STOP Key
Stops VS-616G5 operation.
This key can be enabled or disabled by setting a user constant
(o2-02) when operating from the control circuit terminal.
Note Except in diagrams, keys are referred to using the key names listed in the above table.
Inverter output frequency
STOP
RUN
STOP
Frequency setting
RUN
ST OP
Lit Blinking Not lit
FWD
REV
RESET
RUN STOP
The RUN and STOP indicators light and blink to indicate operating status.
Fig 1.4 RUN and STOP Indicators
