H3C Technologies H3C SecPath F1000-E User Manual
Page 326
301
{
Click Apply.
2.
Configure classes:
# Create a class named classifier_server, and reference ACL 2000 in the class.
{
Select Firewall > QoS > Classifier from the navigation tree, and click Add. Perform configuration
on the page shown in

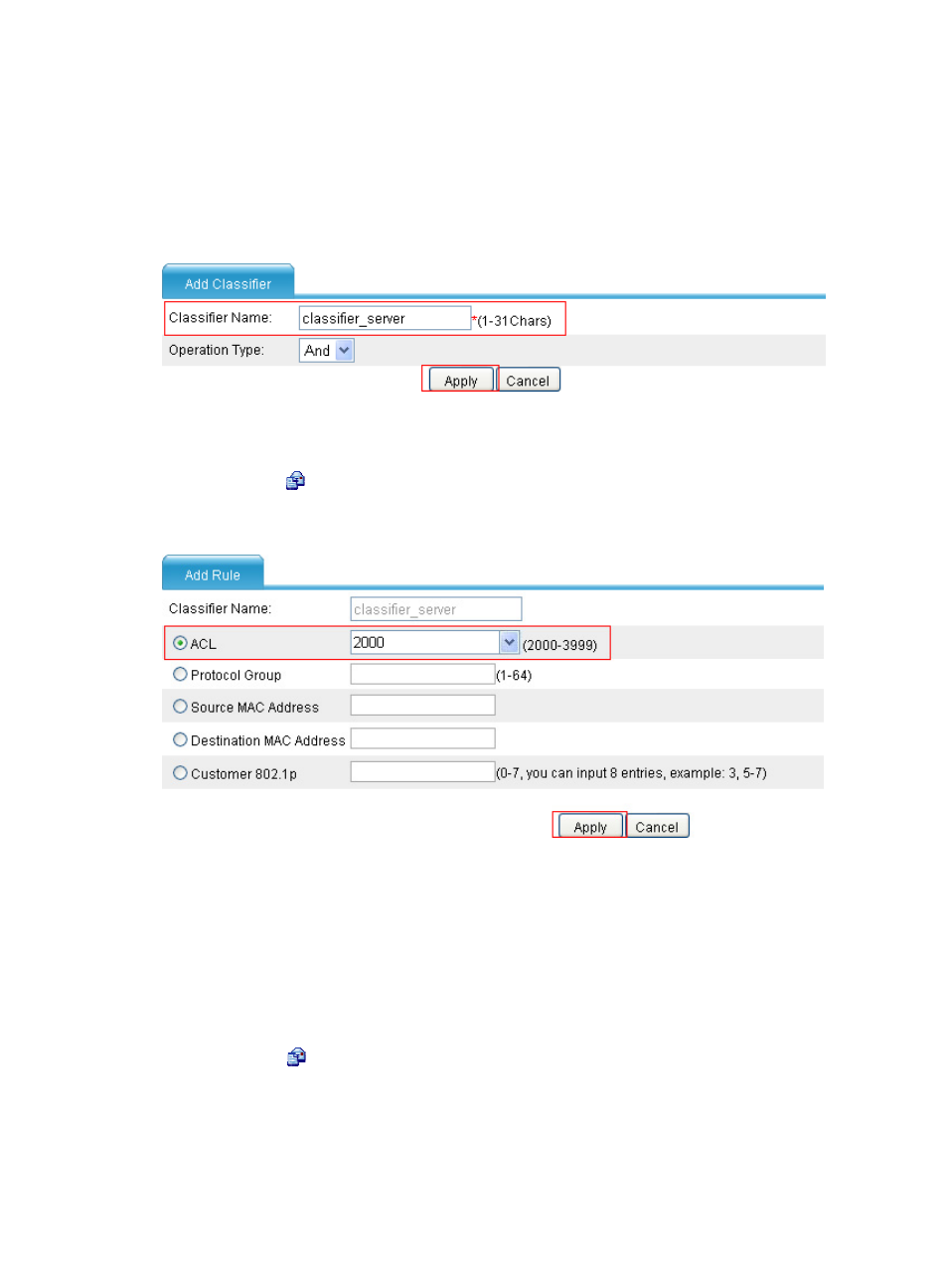

Figure 195 Creating a class named classifier_server
{
Enter classifier_server as the classifier name.
{
Click Apply.
{
Click the
icon for classifier_server on the classifier list, and click Add. Perform configuration
on the page shown in
Figure 196 Configuring rules for class classifier_server
{
Select the ACL option, and then select 2000 from the list.
{
Click Apply.
# Create a class named classifier_host, and reference ACL 2001 in the class.
{
Select Firewall > QoS > Classifier from the navigation tree, and click Add. Perform configuration
on the page shown in
{
Enter classifier_host as the classifier name.
{
Click Apply.
{
Click the
icon for classifier_host on the classifier list, and click Add. Perform configuration
on the page shown in
{
Select the ACL option, and then select 2001 from the list.
{
Click Apply.
3.
Configure traffic behaviors:
