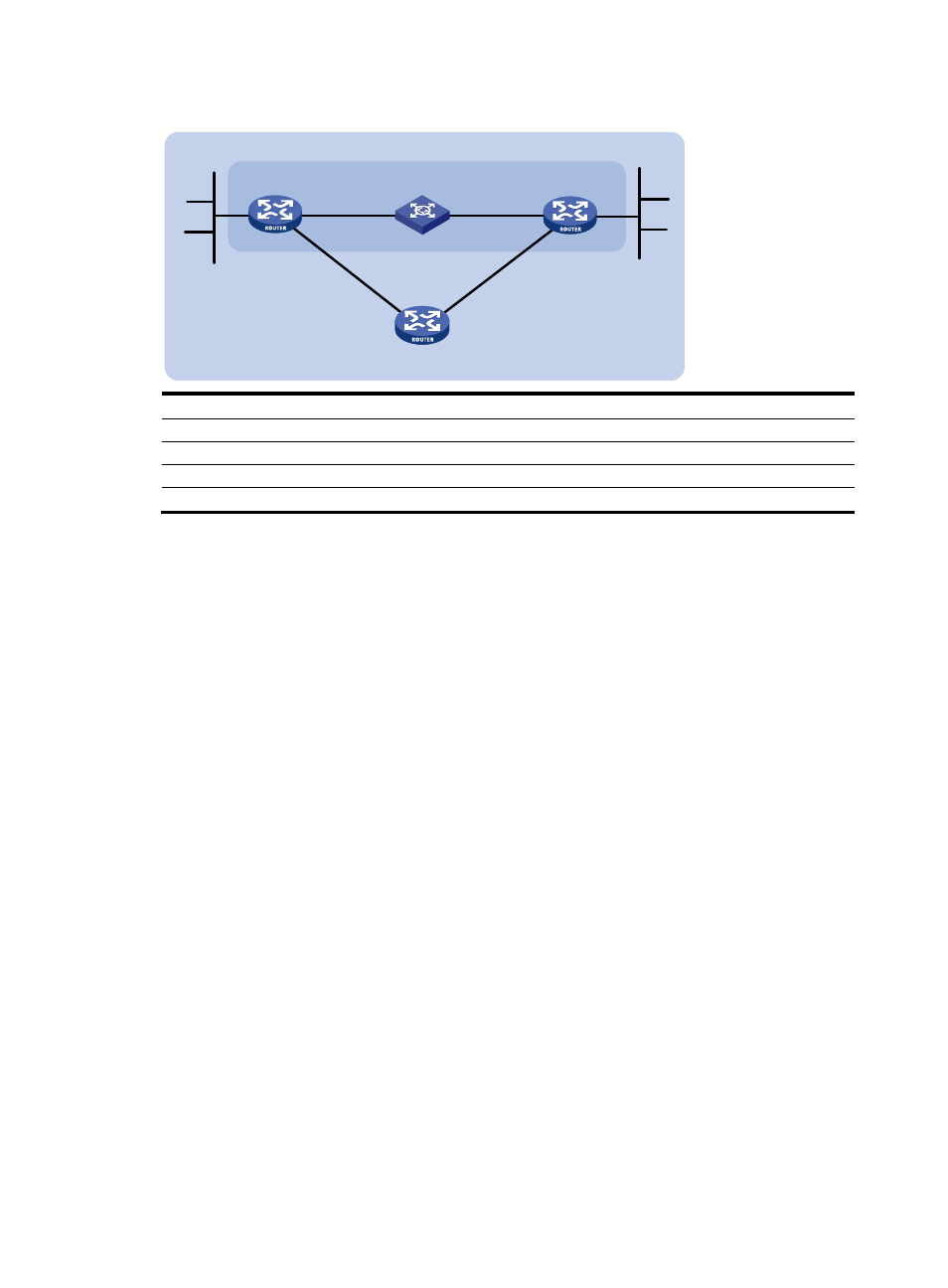

Figure 275 Network diagram
Device Interface IP
address
Device
Interface
IP address
SecPath A
GE0/1
192.168.0.102/24 Router B
GE0/1
192.168.0.100/24
GE0/2
10.1.1.102/24
GE0/2
13.1.1.1/24
Router C
GE0/1
10.1.1.100/24
GE0/2
13.1.1.2/24
Configuration procedure
1.
Configure IP addresses for the interfaces. (Details not shown.)
2.
Configure OSPF basic functions:
# Configure SecPath A.
<SecPathA> system-view
[SecPathA] ospf
[SecPathA-ospf-1] area 0
[SecPathA-ospf-1-area-0.0.0.0] network 192.168.0.0 0.0.0.255
[SecPathA-ospf-1-area-0.0.0.0] network 10.1.1.0 0.0.0.255
[SecPathA-ospf-1-area-0.0.0.0] network 121.1.1.0 0.0.0.255
[SecPathA-ospf-1-area-0.0.0.0] quit
[SecPathA-ospf-1] quit
[SecPathA] interface GigabitEthernet0/2
[SecPathA-GigabitEthernet0/2] ospf cost 2
# Configure Router B.
<RouterB> system-view
[RouterB] ospf
[RouterB-ospf-1] area 0
[RouterB-ospf-1-area-0.0.0.0] network 192.168.0.0 0.0.0.255
[RouterB-ospf-1-area-0.0.0.0] network 13.1.1.0 0.0.0.255
[RouterB-ospf-1-area-0.0.0.0] network 120.1.1.0 0.0.0.255
[RouterB-ospf-1-area-0.0.0.0] quit
[RouterB-ospf-1] quit
[RouterB] interface GigabitEthernet0/2
[RouterB-GigabitEthernet0/2] ospf cost 2
# Configure Router C.
<RouterC> system-view
[RouterC] ospf
