313

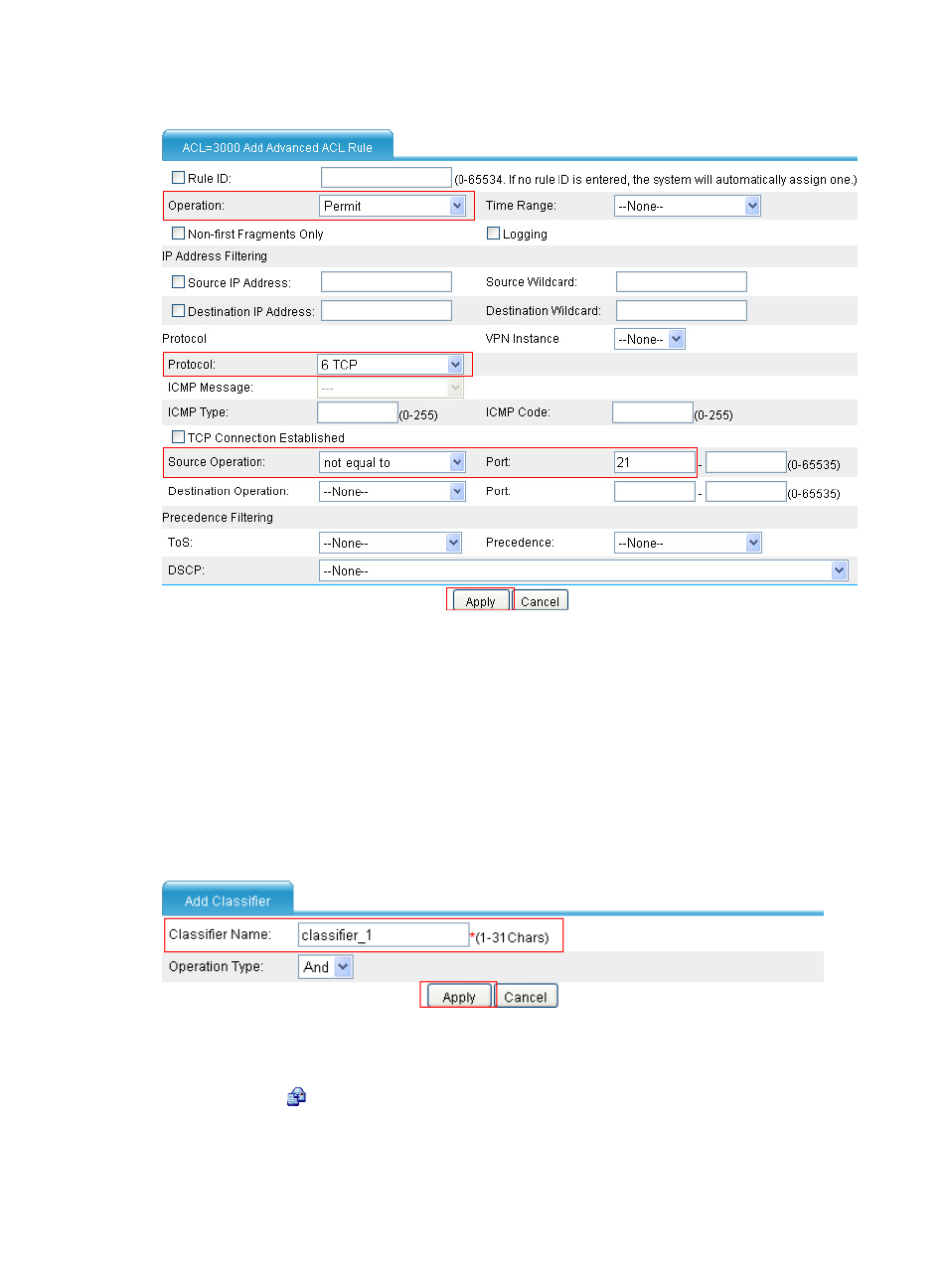

Figure 216 Configuring rules for ACL 3000
{
Select Permit from the Operation list.
{
Select 6 TCP from the Protocol list.
{
Select not equal to from the Source Operation list, and enter 21 in the Port field.
{
Click Apply.
2.
Configure classes:
# Create a class named classifier_1, and reference ACL 3000 in the class.
{
Select Firewall > QoS > Classifier from the navigation tree, and click Add. Perform configuration
on the page shown in
Figure 217 Creating a class named classifier_1
{
Enter classifier_1 as the classifier name.
{
Click Apply.
{
Click the
icon for classifier_1 on the classifier list, and click Add. Perform configuration on
the page shown in
.
