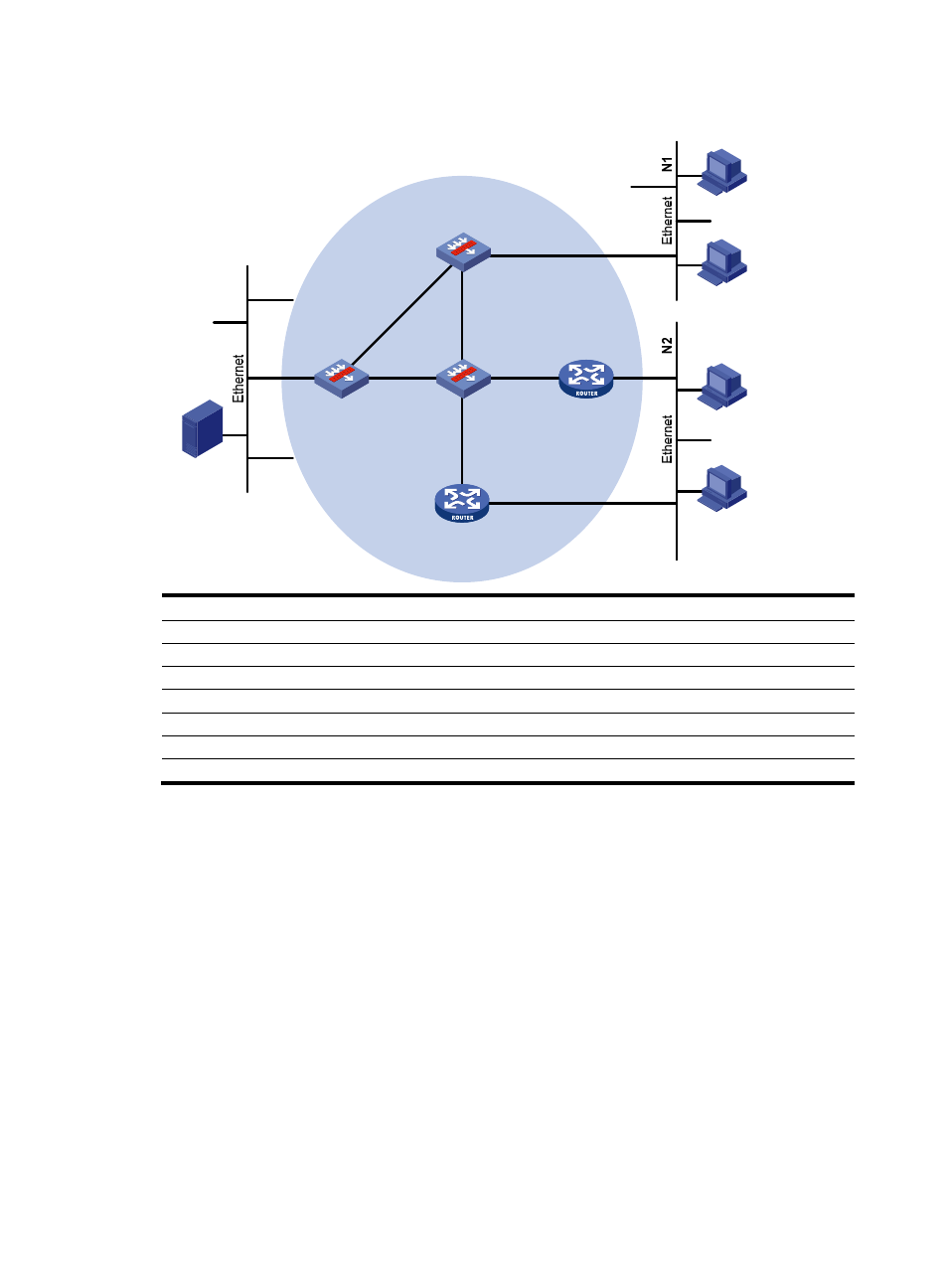

Figure 348 Network diagram
Device Interface IP address Device Interface IP address
SecPath A GE0/1 10.110.1.1/24 SecPath B GE0/1 10.110.5.1/24
GE0/2 192.168.9.1/24 GE0/2 192.168.1.2/24
GE0/3 192.168.1.1/24 GE0/3 192.168.4.2/24
Router A GE0/1 10.110.2.1/24 SecPath C GE0/1 192.168.3.2/24
GE0/2 192.168.2.1/24 GE0/2 192.168.2.2/24
Router B GE0/1 10.110.2.2/24 GE0/3 192.168.9.2/24
GE0/2 192.168.3.1/24 GE0/4 192.168.4.1/24
Configuration procedure
1. Configure IP addresses and unicast routing:
Configure the IP address and subnet mask for each interface as per
Figure 348 . (Details not
shown.)
Configure OSPF on the routers and firewalls in the PIM-SSM domain to make sure the
network-layer on the PIM-SSM network is interoperable and routing information among routers
and firewalls can be dynamically updated. (Details not shown.)
2. Enable IP multicast routing, and enable PIM-SM and IGMP:
# Enable IP multicast routing on SecPath A, enable PIM-SM on each interface, and run IGMPv3 on
GigabitEthernet 0/1, which connects to the stub network.
<SecPathA> system-view
[SecPathA] multicast routing-enable
[SecPathA] interface GigabitEthernet 0/1
[SecPathA-GigabitEthernet0/1] igmp enable
[SecPathA-GigabitEthernet0/1] igmp version 3
[SecPathA-GigabitEthernet0/1] pim sm
