5.7 H: Terminal Functions
204 YASKAWA ELECTRIC SIEP YAIL1E 01A YASKAWA AC Drive L1000E Technical Manual
Setting 16: Speed detection 4
Output closes whenever the output speed or motor speed (CLV, CLV/PM) is above the detection level set in L4-03. The
terminal remains closed until the output speed or motor speed falls below L4-03 minus the setting of L4-04. As the
detection level L4-03 is a signed value, speed detection works in the specified direction only.

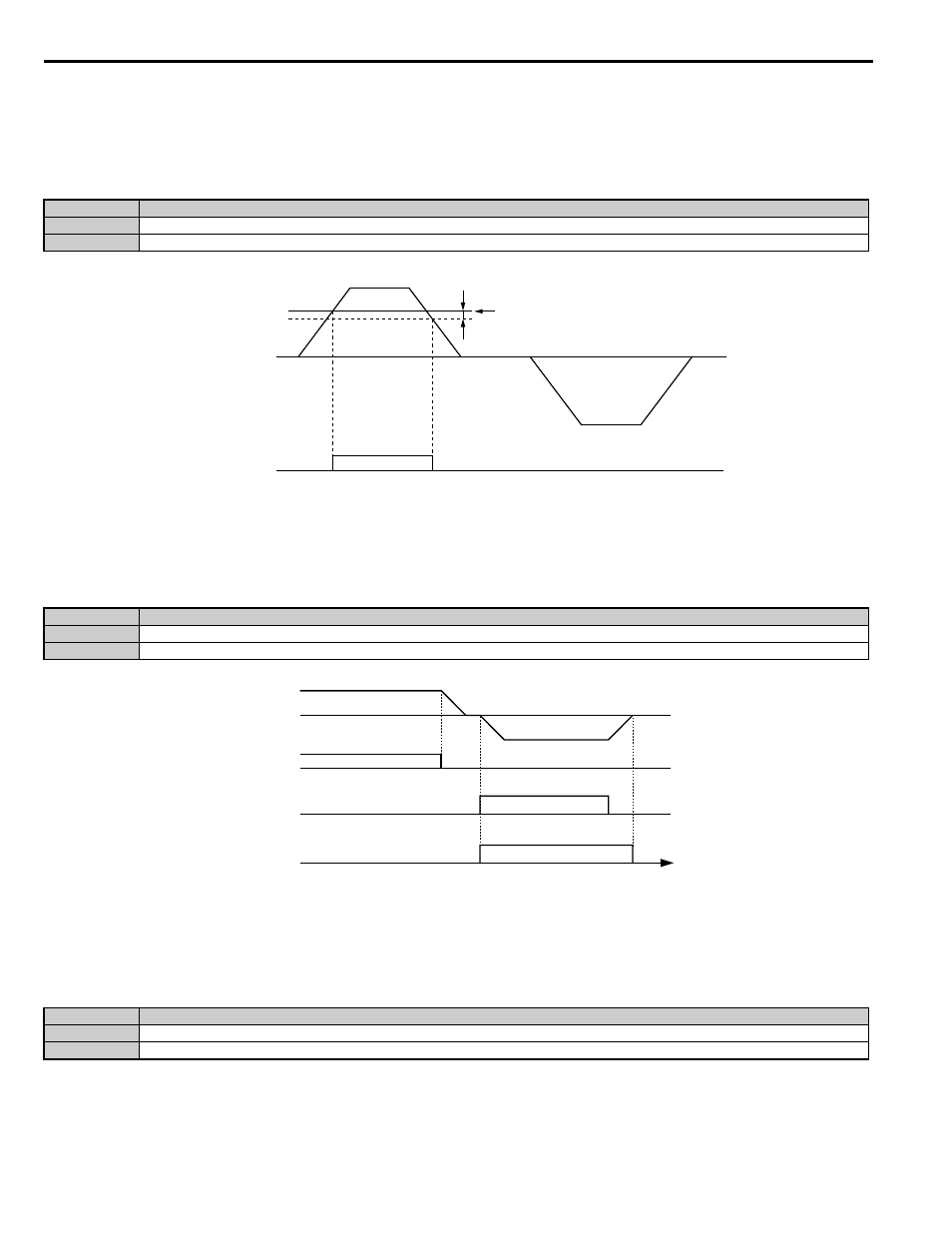

Figure 5.26
Figure 5.26 Speed Detection 4 Example with Positive L3-04 Value
Refer to L4-03, L4-04: Speed Agreement Detection Level and Detection Width (+/-) on page 220 for more details.
Setting 1A: During down direction
A digital output set for “During down direction” will close whenever the drive is running the elevator in down direction.
Figure 5.27
Figure 5.27 Down Direction Output Example Time Chart
Setting 1B: During baseblock (N.C.)
Output opens to indicate that the drive is in a baseblock state. While Baseblock is executed, output transistors do not
switch and no main circuit voltage is output.
Status Description
Open Output speed or motor speed is below L4-03 minus L4-04 or has not exceeded L4-03 yet.
Closed Output speed or motor speed exceeded L4-03.
Status Description
Open Elevator is being driven in up direction or stopped.
Closed Elevator is being driven in down direction.
Status Description
Open Baseblock is being executed.
Closed Drive is not in a baseblock state.
L4-04
Speed
detection 4
ON OFF
L4-03
Output speed
or motor speed
common_
TMonly
Output Speed
time
Up command
Down command
During Down Direction
OFF ON
common
TMonly
